How to Solve 10 Common TIG Welding Problems

TIG (Tungsten Inert Gas) welding, also known as Gas Tungsten Arc Welding (GTAW), is renowned for its precision and ability to produce high-quality welds. However, even experienced welders encounter challenges that can affect weld quality and efficiency. In this guide, we’ll explore 10 common TIG welding problems and provide practical solutions to help you overcome these issues and improve your welding skills.

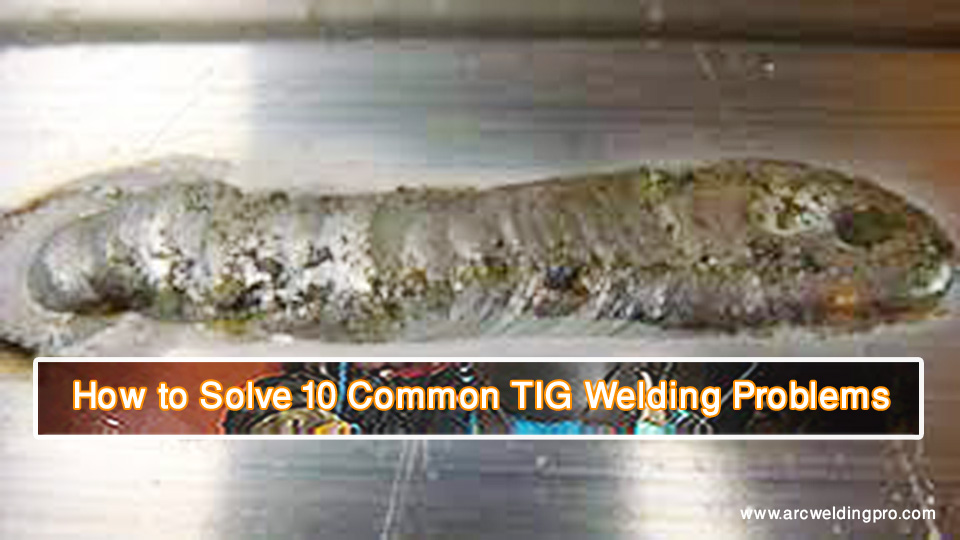

Image by millerwelds

1. Poor Gas Coverage

Inadequate shielding gas coverage is a frequent issue in TIG welding that can lead to contamination and oxidation of the weld.

Symptoms

• Discoloration of the weld
• Porosity in the weld bead
• Excessive spatter

Solutions

• Ensure you’re using the correct type of shielding gas (typically pure argon for most applications)
• Check for gas leaks in your system
• Adjust the gas flow rate to the recommended 15-20 cubic feet per hour (CFH)
• Protect the welding area from drafts that could disrupt gas coverage
• Maintain proper torch angle and distance from the workpiece

2. Tungsten Contamination

Contamination of the tungsten electrode can lead to unstable arcs and poor weld quality.

Symptoms

• Erratic arc behavior
• Inclusions in the weld
• Discolored or dirty-looking welds

Solutions

• Avoid dipping the tungsten into the weld pool
• Use the correct size and type of tungsten for your application
• Properly sharpen the tungsten electrode – Keep your workpiece and filler rod clean
• Maintain proper arc length to prevent accidental contact with the weld pool

3. Arc Starting Difficulties

Trouble initiating the arc can be frustrating and time-consuming.

Symptoms

• Arc won’t start or is inconsistent
• Tungsten sticking to the workpiece

Solutions

• Ensure your tungsten is properly sharpened
• Clean the workpiece thoroughly
• Check that your machine’s high-frequency start function is working correctly
• Use a scratch start technique if high-frequency start is unavailable
• Adjust your gas pre-flow time to ensure adequate shielding before arc initiation

4. Inconsistent Weld Bead Appearance

An uneven or inconsistent weld bead can be both aesthetically displeasing and structurally problematic.

Symptoms

• Varying weld bead width
• Inconsistent ripple pattern
• Uneven weld penetration

Solutions

• Maintain a steady travel speed
• Keep a consistent arc length
• Practice proper torch angle technique
• Use a metronome or rhythm to help maintain consistency
• Consider using a welding positioner for cylindrical parts

5. Porosity in Welds

Porosity, or small gas pockets in the weld, can significantly weaken the weld’s strength.

Symptoms

• Visible pinholes in the weld surface
• Sponge-like appearance in cross-section

Solutions

• Clean the base metal and filler rod thoroughly to remove contaminants
• Check for moisture in your shielding gas or on your materials
• Ensure proper gas flow and coverage
• Adjust your travel speed  moving too quickly can trap gas in the weld
• Preheat materials if working with thicker sections

6. Lack of Fusion

Incomplete fusion between the weld and base metal is a serious defect that compromises weld integrity.

Symptoms

• Gaps or voids between the weld and base metal
• Weld bead easily peels or breaks off

Solutions

• Increase heat input by adjusting amperage or reducing travel speed
• Ensure proper joint preparation, including correct bevel angles
• Maintain the correct arc length
• Use the appropriate filler metal for your base material
• Consider preheating the workpiece for thicker materials

7. Tungsten Inclusions

Pieces of tungsten embedded in the weld can create weak points and potential failure sites.

Symptoms

• Bright spots in the weld bead
• Irregular bumps on the weld surface

Solutions

• Avoid dipping the tungsten into the weld pool
• Maintain proper arc length
• Use the correct size tungsten for your amperage
• Ensure your tungsten is properly sharpened
• Adjust your technique to prevent excessive arc pressure

8. Oxidation in Aluminum Welds

Aluminum’s tendency to form an oxide layer quickly can lead to problems in TIG welding.

Symptoms

• Dull, grayish weld appearance
• Poor weld penetration
• Difficulty in maintaining a stable arc

Solutions

• Use AC (Alternating Current) for aluminum welding
• Adjust the AC balance to increase the cleaning action
• Ensure proper gas coverage
• Clean the aluminum thoroughly before welding
• Use a dedicated stainless steel brush for aluminum to prevent contamination

9. Distortion and Warping

Heat input during welding can cause materials to distort or warp, especially with thinner materials.

Symptoms

• Visible bending or twisting of the workpiece
• Misalignment of joined parts

Solutions

• Use proper fixturing and clamping techniques
• Employ a skip welding or back-step welding method
• Reduce heat input by lowering amperage or increasing travel speed
• Consider using pulse welding to reduce overall heat input
• Plan your welding sequence to balance heat distribution

10. Crater Cracks

Cracks that form in the crater at the end of a weld can propagate and lead to weld failure.

Symptoms

• Small cracks visible in the weld crater
• Cracks that extend into the weld bead

Solutions

• Use a crater-fill technique at the end of your welds
• Gradually reduce amperage at the end of the weld (crater current control) – Add filler metal to the crater as you terminate the arc – For automated systems, use a crater-fill program
• Consider using run-off tabs for critical welds

Conclusion

TIG welding, while capable of producing high-quality welds, comes with its own set of challenges. By understanding these common problems and their solutions, you can significantly improve your welding results. R

Practice and experience play crucial roles in developing your TIG welding skills. Don’t be discouraged by initial difficulties  each problem you encounter and solve contributes to your expertise as a welder.

Additional Tips for TIG Welding Success

To further enhance your TIG welding skills and avoid common problems, consider the following additional tips:

Proper Equipment Maintenance

• Regularly inspect and clean your TIG torch
• Check and replace worn consumables (collets, gas cups, etc.)
• Keep your power source clean and well-maintained

Material Preparation

• Always clean your materials thoroughly before welding
• Use the appropriate cleaning methods for different metals (e.g., acetone for stainless steel, caustic cleaners for aluminum)
• Ensure proper fit-up and joint preparation

Continuous Learning

• Stay updated on new TIG welding techniques and technologies
• Attend welding workshops or seminars
• Practice on scrap materials to refine your skills

Safety First

• Always wear proper personal protective equipment (PPE)
• Ensure adequate ventilation in your welding area
• Be aware of potential hazards and follow safety guidelines

By addressing these common TIG welding problems and following best practices, you’ll be well on your way to producing consistently high-quality welds.

Welding is both a science and an art  while understanding the technical aspects is crucial, developing your skill through practice and experience is equally important. With patience and persistence, you can overcome these challenges and become a proficient TIG welder.
