Resistance welding is a widely used joining process in various industries, from automotive manufacturing to aerospace applications. This method utilizes the heat generated by electrical resistance to fuse materials together. While it offers numerous benefits, it also comes with certain limitations.
In this article, we’ll explore the advantages and disadvantages of resistance welding, helping you understand when and where to apply this technique effectively.

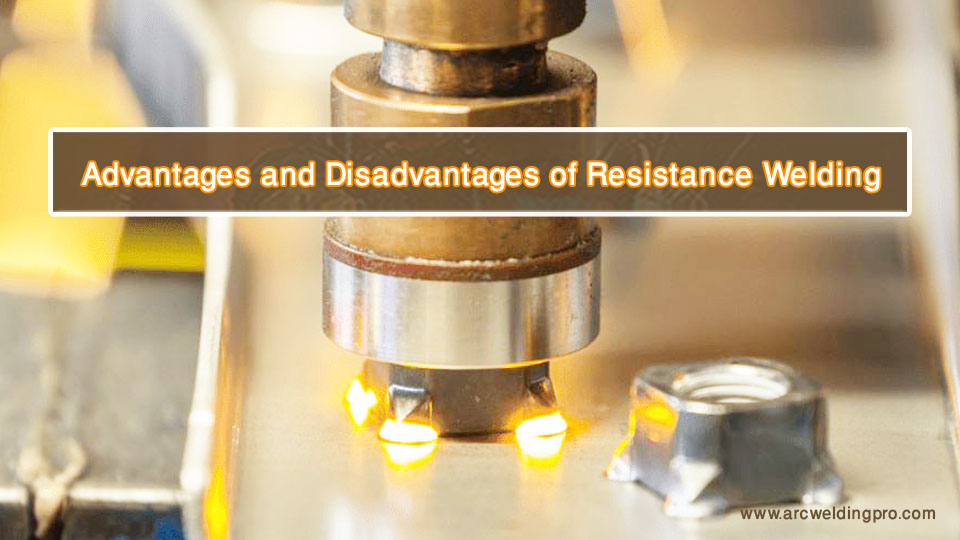

Image by tjsnow
About Resistance Welding
What is Resistance Welding?
Resistance welding is a process that joins metals by applying pressure and passing an electric current through the parts to be welded. The resistance of the metals to the flow of electricity generates heat, which melts the materials at the point of contact, creating a weld.
Types of Resistance Welding
There are several types of resistance welding, including:
- Spot Welding
- Seam Welding
- Projection Welding
- Flash Welding
- Upset Welding
Each type has its specific applications and characteristics, but they all rely on the same fundamental principle of electrical resistance generating heat.
Advantages of Resistance Welding
Speed and Efficiency
One of the primary advantages of resistance welding is its speed. The process is incredibly quick, often completed in a fraction of a second. This high-speed operation makes it ideal for high-volume production environments, significantly increasing productivity.
Consistency and Repeatability
Resistance welding processes can be easily automated, ensuring consistent weld quality across large production runs. Once the welding parameters are set, the process can produce uniform welds repeatedly, reducing the likelihood of human error.
No Filler Material Required
Unlike many other welding processes, resistance welding doesn’t require any additional filler material. This not only simplifies the process but also reduces material costs and potential contamination issues.
Clean and Environmentally Friendly
Resistance welding produces no fumes, sparks, or spatter, making it a clean and environmentally friendly welding method. This characteristic also improves workplace safety and reduces the need for additional protective equipment.
Suitable for Thin Materials
Resistance welding excels at joining thin sheets of metal, which can be challenging for other welding methods. It’s particularly effective for materials ranging from 0.008 to 0.125 inches in thickness.
Low Energy Consumption
Compared to other welding processes, resistance welding is energy-efficient. The heat is generated precisely where it’s needed, minimizing energy waste and reducing operational costs.
Versatility
Resistance welding can be used on a wide range of materials, including steel, aluminum, nickel alloys, and even some dissimilar metal combinations. This versatility makes it a valuable process across various industries.
Disadvantages of Resistance Welding
Limited Joint Configurations
Resistance welding is primarily suited for lap joints and is less versatile when it comes to complex joint configurations. This limitation can restrict its applicability in certain design scenarios.
High Initial Equipment Cost
The machinery required for resistance welding can be expensive, especially for large-scale operations. This high initial investment can be a barrier for smaller businesses or those with limited capital.
Material Thickness Limitations
While excellent for thin materials, resistance welding becomes less effective as material thickness increases. For thicker materials, other welding processes may be more suitable.
Surface Condition Sensitivity
The quality of resistance welds can be affected by the surface condition of the materials being joined. Contaminants, oxides, or coatings can interfere with the welding process, potentially leading to poor weld quality.
Electrode Wear
The electrodes used in resistance welding wear over time and require regular maintenance or replacement. This ongoing maintenance can add to the operational costs and potentially cause downtime.
Power Requirements
Resistance welding machines often require high electrical power, which may necessitate special power supply arrangements. This can be challenging in locations with limited power infrastructure.
Limited Accessibility
The welding electrodes need to access both sides of the joint, which can be problematic for certain part geometries or in confined spaces. This limitation can restrict the use of resistance welding in some applications.
Advantages vs Disadvantages of Resistance Welding
| Advantages | Disadvantages |
|---|---|
| High speed and efficiency | Limited joint configurations |
| Consistent and repeatable results | High initial equipment cost |
| No filler material required | Material thickness limitations |
| Clean and environmentally friendly | Surface condition sensitivity |
| Suitable for thin materials | Electrode wear and maintenance |
| Low energy consumption | High power requirements |
| Versatility in material selection | Limited accessibility in some scenarios |
Applications of Resistance Welding
Despite its limitations, resistance welding finds extensive use in various industries due to its unique advantages. Some common applications include:
Automotive Industry
Resistance spot welding is widely used in car body assembly, joining sheet metal components quickly and efficiently.
Aerospace
The aerospace industry utilizes resistance welding for joining thin metal sheets and components in aircraft construction.
Electronics
Small-scale resistance welding is employed in the production of electronic components and circuit boards.
Appliance Manufacturing
Many household appliances, such as refrigerators and washing machines, incorporate parts joined by resistance welding.
Construction
Resistance welding is used in the production of wire mesh, reinforcing bars, and other construction materials.
Factors to Consider When Choosing Resistance Welding
When deciding whether resistance welding is suitable for your application, consider the following factors:
- Material type and thickness
- Production volume
- Joint configuration requirements
- Available power supply
- Initial budget for equipment
- Surface condition of materials
- Accessibility of weld locations
Future Trends in Resistance Welding
As technology advances, resistance welding continues to evolve. Some emerging trends include:
Adaptive Control Systems
Advanced control systems that can adjust welding parameters in real-time based on feedback from the welding process, ensuring optimal weld quality.
Integration with Industry 4.0
Incorporation of resistance welding machines into smart factory systems, allowing for better data collection, analysis, and process optimization.
Improved Electrode Materials
Development of more durable and efficient electrode materials to reduce wear and extend maintenance intervals.
Enhanced Power Supply Technologies
Advancements in power supply design to improve energy efficiency and allow for more precise control of the welding process.
Conclusion
Resistance welding offers a unique set of advantages that make it an invaluable process in many manufacturing scenarios. Its speed, consistency, and cleanliness make it particularly well-suited for high-volume production of thin metal components. However, the limitations in joint configurations, material thickness, and initial equipment costs mean that it’s not a one-size-fits-all solution.
When considering resistance welding for your application, it’s crucial to weigh these advantages and disadvantages carefully. In many cases, the benefits of resistance welding such as its efficiency, repeatability, and clean operation outweigh its limitations, especially in industries where high-volume production of consistent welds is paramount.
As technology continues to advance, we can expect to see improvements that address some of the current limitations of resistance welding, potentially expanding its applicability and efficiency even further.
By understanding both the strengths and weaknesses of this welding method, manufacturers can make informed decisions about when and where to implement resistance welding in their production processes, ultimately leading to more efficient and cost-effective manufacturing operations.
