What are the Different Types of Gas Welding?

There are four main types of gas welding: oxy-fuel welding, oxy-acetylene welding, oxy-hydrogen welding, and oxy-propane welding. Oxy-fuel welding involves using a fuel gas combined with oxygen to produce a flame for welding.

Oxy-acetylene welding specifically uses acetylene gas as the fuel, while oxy-hydrogen welding uses hydrogen gas, and oxy-propane welding uses propane gas. These types of gas welding processes are commonly used in various industries for joining and repairing metal components.

The choice of gas depends on factors such as the type of metal being welded and the specific requirements of the welding project. Gas welding offers versatility and control, making it a preferred method for many applications.

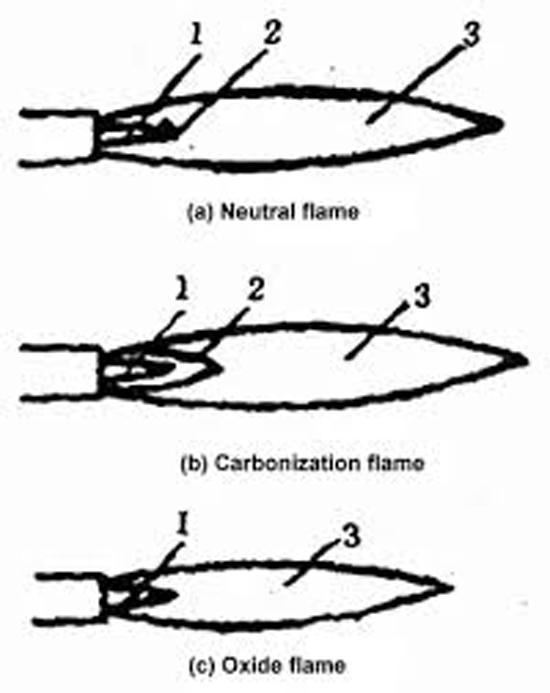

Image by machinemfg

Introduction of Gas Welding

Gas welding encompasses various techniques, including oxy-acetylene, oxy-hydrogen, and oxy-propane welding. Each type of gas welding utilizes a specific gas combination to generate the necessary heat for joining metal pieces together. Oxy-acetylene welding, for instance, involves the use of acetylene and oxygen to produce a high-temperature flame for welding.

The Basics

Gas welding is a process that uses a fuel gas to heat metal pieces and join them together.

It involves combining oxygen and a fuel gas to create a flame that reaches high temperatures.

Importance In Industry

Gas welding is widely used in various industries for its versatility and cost-effectiveness.

It is crucial for tasks requiring precision and strength in metal fabrication and repairs.

Oxy-acetylene Welding

Oxy-acetylene welding is one of the different types of gas welding that uses a combination of oxygen and acetylene gas to produce a high-temperature flame for joining metals. This method is commonly used for welding and cutting tasks in various metalworking applications.

Oxy-Acetylene welding is a gas welding process that uses a mixture of oxygen and acetylene gases to produce a high-temperature flame. This flame is used to melt and join two metal pieces together. Oxy-Acetylene welding is one of the most versatile and widely used welding processes, due to its affordability and ease of use. We will discuss the equipment needed, applications, and advantages of Oxy-Acetylene welding.

Equipment Needed

Oxy-Acetylene welding requires a few essential pieces of equipment, including an oxygen cylinder, an acetylene cylinder, a welding torch, a welding hose, and a welding regulator. The oxygen cylinder is typically colored green, while the acetylene cylinder is colored maroon.

The welding torch is responsible for mixing the oxygen and acetylene gases to produce the flame used for welding. The welding hose is used to connect the welding torch to the oxygen and acetylene cylinders, while the welding regulator is used to control the flow of gases.

Applications and Advantages

Oxy-Acetylene welding is commonly used in the automotive industry, as well as for repairing and fabricating metal parts. It is also used in the construction industry for welding steel structures, pipelines, and tanks. One of the biggest advantages of Oxy-Acetylene welding is its portability. The equipment is relatively lightweight and can be transported to different job sites, making it ideal for outdoor welding projects.

Oxy-Acetylene welding produces a flame that is highly customizable, allowing welders to adjust the flame’s temperature and size to suit their specific welding needs.

Oxy-Acetylene welding is an essential gas welding process that is widely used due to its versatility and affordability. It requires a few essential pieces of equipment, including an oxygen cylinder, an acetylene cylinder, a welding torch, a welding hose, and a welding regulator. Oxy-Acetylene welding is commonly used in the automotive and construction industries and is highly portable, making it ideal for outdoor welding projects.

Oxy-hydrogen Welding

Oxy-hydrogen welding is a type of gas welding that uses a mixture of oxygen and hydrogen to produce a high-temperature flame for welding. This method is one of the different types of gas welding techniques and is commonly used for precision welding in industries such as jewelry making and electronics manufacturing.

How It Works

Oxy-Hydrogen welding, also known as Brown’s gas welding, is a type of gas welding that utilizes a mixture of hydrogen and oxygen gases to create a high-temperature flame for welding purposes. The process involves the combustion of hydrogen and oxygen gases, producing a flame with temperatures reaching up to 2800 degrees Celsius.

The oxy-hydrogen welding setup consists of a welding torch, which has separate channels for hydrogen and oxygen gases, as well as a mixing chamber where the gases are combined in the correct ratio. The torch is equipped with a nozzle that directs the flame onto the workpiece, allowing for precise and controlled welding.

Benefits For Precision Tasks

Oxy-Hydrogen welding is particularly advantageous for precision tasks due to its unique properties. Here are some of the key benefits:

High heat concentration

The oxy-hydrogen flame has a high heat concentration, which allows for localized heating of the workpiece. This is crucial for precision welding tasks that require focused heat application, such as delicate electronic components or fine jewelry.

Clean and precise welds

The oxy-hydrogen flame produces a clean and precise weld, making it suitable for applications where aesthetics and quality are important. The controlled flame temperature ensures minimal distortion and discoloration of the workpiece, resulting in visually appealing welds.

Reduced heat-affected zone

Oxy-Hydrogen welding generates less heat compared to other welding methods, resulting in a smaller heat-affected zone. This is advantageous for precision tasks as it minimizes the risk of damaging adjacent areas or sensitive components.

Minimal gas consumption

Oxy-Hydrogen welding requires a lower gas consumption compared to traditional welding methods, making it a cost-effective option for precision tasks. The precise control of gas flow ensures efficient utilization, reducing wastage and overall operating costs.

Environmentally friendly

Oxy-Hydrogen welding produces a clean flame with no harmful by-products, making it an environmentally friendly choice. The combustion of hydrogen and oxygen gases results in the formation of water vapor, eliminating the release of toxic fumes or pollutants.

Oxy-Hydrogen welding is a versatile and effective method for precision welding tasks. Its high heat concentration, clean welds, reduced heat-affected zone, minimal gas consumption, and environmental friendliness make it a preferred choice for applications that demand accuracy and quality.

It’s delicate electronics, intricate jewelry, or other precision components, oxy-hydrogen welding offers the precision and control required for successful outcomes.

Air-acetylene Welding

Air-Acetylene welding is one of the types of gas welding methods. Other methods include Oxy-Acetylene welding and Oxy-Hydrogen welding, each offering unique benefits in various applications. These techniques utilize different gas combinations to generate the heat needed for the welding process.

Air-Acetylene Welding is a type of gas welding that uses the combination of air and acetylene gas to produce a flame. This type of welding is often used for low-temperature welding applications, such as repairing thin sheets of metal or soldering small parts. In this section, we will discuss the key features and suitable projects for Air-Acetylene Welding.

Key Features

Air-Acetylene Welding has several key features that make it a popular choice for welding tasks. These features include:

• Easy to set up and use
• Produces a low-temperature flame, making it suitable for thin metals and delicate parts
• Does not require an external power source
• Produces a soft flame that can be easily adjusted for different welding tasks

Suitable Projects

Air-Acetylene Welding is suitable for a variety of projects, including:

• Soldering small parts, such as jewelry or electronic components
• Welding thin sheets of metal, such as those used in automotive or HVAC repair
• Joining non-ferrous metals, such as copper or brass
• Repairing cast iron parts

Air-Acetylene Welding is a versatile and easy-to-use welding method that is suitable for a variety of projects. Its low-temperature flame and soft flame make it an excellent choice for delicate parts and thin metals.

Mapp Gas Welding

MAPP gas welding is one of the different types of gas welding used in metalworking. It uses a mixture of Methylacetylene Propidine and propane gases to create a high-temperature flame for welding. Other types of gas welding include oxy-acetylene welding, oxy-propane welding, and oxy-hydrogen welding.

Understanding Mapp Gas

MAPP gas stands for Methyl Acetylene-Propadiene Propane. It is a type of gas used in welding applications.

Comparative Advantages

• Hotter flame compared to propane
• Ideal for brazing and soldering due to high temperature
• Versatile for various metal types

Butane And Propane Gas Welding

Gas welding is a popular method for joining metals using a combination of heat and gas fuel. Butane and propane are two common types of gas fuels used in welding processes. Each type of gas has its own unique characteristics and benefits, making it important to understand the differences between them.

Characteristics

Butane and propane are both hydrocarbon gases commonly used in gas welding. They differ in their physical properties and performance characteristics.

• Butane: Is a colorless and odorless gas, commonly used in portable torches due to its ease of transportation. It burns cleanly and is suitable for light-duty welding tasks.
• Propane: Is a heavier gas than butane and is typically stored in steel cylinders. It provides a higher heat output and is suitable for heavy-duty welding applications.

Choosing Between Butane And Propane

When deciding between butane and propane for gas welding, several factors should be considered to ensure the optimal choice for the specific welding task:

1. Heat Output: Propane offers a higher heat output compared to butane, making it suitable for thicker metals and heavy-duty welding.
2. Portability: Butane is more portable due to its compact nature, making it convenient for on-the-go welding tasks.
3. Cost: Consider the cost and availability of each gas type to ensure it aligns with the budget and accessibility of the welding project.

Safety Measures In Gas Welding

When it comes to gas welding, safety measures are of utmost importance to prevent accidents and ensure a secure working environment. Understanding and implementing essential precautions, proper handling, and storage tips are critical in gas welding. Let’s delve into the safety measures associated with gas welding.

Essential Precautions

Gas welding involves inherent risks, and thus, it’s vital to adhere to essential precautions:

• Always wear appropriate personal protective equipment (PPE) such as welding helmets, gloves, and flame-resistant clothing
• Inspect the welding equipment regularly to ensure it is in proper working condition
• Keep the work area well-ventilated to prevent the accumulation of hazardous gases
• Regularly check for gas leaks and ensure proper ventilation to prevent the risk of explosion
• Avoid welding in confined spaces to prevent the buildup of harmful fumes

Handling And Storage Tips

Proper handling and storage of gas welding equipment are crucial for maintaining safety. Here are some key tips:

• Store gas cylinders in a well-ventilated area, away from flammable materials and direct sunlight
• Securely fasten cylinders in an upright position to prevent tipping and potential damage
• Avoid dropping or mishandling cylinders to prevent damage to the valves and fittings
• Use appropriate trolleys or carts to transport gas cylinders and ensure they are properly secured
• Keep cylinders away from sources of heat or ignition to prevent the risk of fire

Choosing The Right Type For Your Project

Factors To Consider

When choosing the right type of gas welding for your project, there are several factors to consider. These include the type of metal being welded, the thickness of the metal, the location of the project, and the skill level of the welder. The cost and availability of the equipment and gases required should also be taken into account.

Expert Recommendations

For projects involving thin metal sheets or light fabrication, oxy-acetylene welding is often recommended due to its versatility and ability to produce high-quality welds.

For heavy-duty industrial applications, MIG (Metal Inert Gas) welding is often preferred for its speed and efficiency. TIG (Tungsten Inert Gas) welding, on the other hand, is commonly used for high-precision work on thin materials such as stainless steel and aluminum.

Conclusion

Understanding the different types of gas welding is crucial for welders. Each method has unique advantages and applications. Whether it’s oxy-acetylene, oxy-hydrogen, or oxy-propane welding, choosing the right technique can make a significant difference in welding projects. Keep exploring and mastering these techniques for welding success.
