Welding is a crucial process in manufacturing, construction, and various industries where strong, durable metal joints are required. At the heart of this process lies the weld bead, the visible result of the welding operation. Weld beads come in various types, each with its own characteristics, applications, and techniques. In this article, we’ll explore the different types of weld beads, their properties, and when to use them.
Image by bogornewsinfo
Understanding Weld Beads
Before diving into the specific types of weld beads, it’s essential to understand what a weld bead is and its importance in the welding process.
What is a Weld Bead?
A weld bead is the deposited metal that forms the visible part of a weld. It’s created when the welding electrode or filler metal is melted and fuses with the base metal, forming a continuous strip along the joint. The appearance, shape, and quality of the weld bead are crucial indicators of the weld’s strength and overall quality.
Importance of Weld Beads
Weld beads play several critical roles in the welding process:
- Joining: They form the physical connection between the pieces being welded.
- Strength: The shape and penetration of the bead contribute to the overall strength of the joint.
- Aesthetics: In visible applications, the appearance of the weld bead can be important.
- Quality Indicator: The bead’s appearance can reveal potential issues with the welding process or technique.
Types of Weld Beads
Now, let’s explore the various types of weld beads, their characteristics, and typical applications.
Stringer Bead
The stringer bead is one of the most basic and commonly used types of weld beads.
Characteristics:
- Narrow, straight bead
- Consistent width along the length
- Minimal side-to-side movement during welding
Technique:
To create a stringer bead, the welder moves the electrode or welding gun in a straight line along the joint, maintaining a consistent speed and angle.
Applications:
- Root passes in pipe welding
- Joining thin materials
- Building up worn surfaces
- First pass in multi-pass welds
Advantages:
- Easy to control and maintain consistency
- Suitable for all welding positions
- Provides good penetration
Weave Bead
Weave beads involve a side-to-side motion of the electrode or welding gun while progressing along the joint.
Characteristics:
- Wider than stringer beads
- Pattern visible on the surface
- Variable width depending on the weave pattern
Technique:
The welder moves the electrode in a pattern (e.g., zigzag, semicircle, or figure-eight) while progressing along the joint. The exact pattern can vary based on the desired outcome and welder preference.
Applications:
- Filling wide gaps
- Cover passes in multi-pass welds
- Building up worn surfaces
- Creating decorative welds
Advantages:
- Covers a wider area than stringer beads
- Can help control heat input
- Useful for bridging gaps and improving fusion at the edges
Multi-Pass Bead
Multi-pass beads involve laying multiple weld beads on top of or alongside each other to build up the weld.
Characteristics:
- Consists of multiple overlapping or adjacent beads
- Can achieve greater weld thickness and width
- Often used for joining thick materials
Technique:
The welder lays down successive beads, either stacking them or placing them side by side, depending on the joint design and required weld size.
Applications:
- Welding thick plates
- Creating large fillet welds
- Building up material in repair work
Advantages:
- Allows for better control of heat input
- Can achieve higher strength in thick materials
- Provides flexibility in achieving desired weld size
Oscillation Bead
Oscillation beads are similar to weave beads but are typically created using automated welding equipment for more precise control.

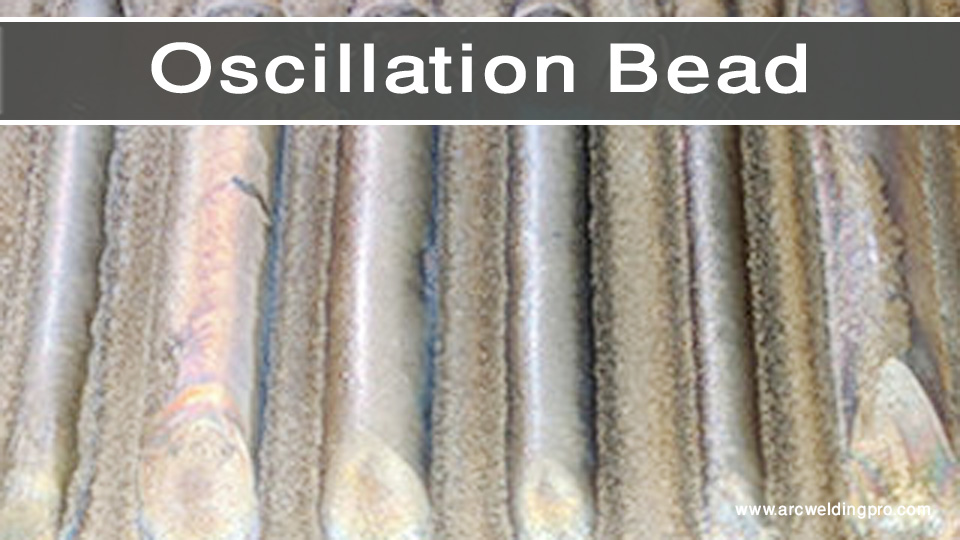

Image by researchgate
Characteristics:
- Consistent, uniform pattern
- Wider than stringer beads
- Precise control of width and heat input
Technique:
The welding torch is mechanically moved in a controlled, repetitive pattern while progressing along the joint. This is often done with automated welding systems.
Applications:
- Automated welding of large structures
- Overlay welding for wear-resistant surfaces
- Cladding applications
Advantages:
- Highly consistent results
- Excellent for covering large areas
- Provides uniform heat distribution
Plug Bead
Plug beads, also known as spot welds, are circular welds made through a hole in one piece of metal to join it to another piece underneath.
Characteristics:
- Circular shape
- Typically flush with the surface or slightly raised
- Used to join overlapping pieces of metal
Technique:
The welder creates a circular weld that fills a pre-drilled or punched hole, fusing the top piece to the bottom piece.
Applications:
- Automotive body work
- Sheet metal fabrication
- Creating decorative patterns
- Repairing holes in metal
Advantages:
- Provides a strong joint in overlapping materials
- Can be used to fill holes
- Often less visible than other types of welds
Tack Weld Bead
Tack welds are small, temporary welds used to hold pieces in place before final welding.
Characteristics:
- Small, short beads
- Typically spaced at intervals along the joint
- Not intended as permanent welds
Technique:
The welder creates small, quick welds at strategic points along the joint to hold the pieces in alignment.
Applications:
- Holding parts in place during assembly
- Maintaining alignment in large structures
- Preventing warpage in thin materials
Advantages:
- Allows for adjustment before final welding
- Helps maintain proper fit-up
- Can be easily removed if necessary
Wash Pass Bead
A wash pass bead is a type of finishing pass used to improve the appearance and smoothness of a weld.
Characteristics:
- Thin, wide bead
- Smooth, flat surface
- Often used as the final pass in multi-pass welds
Technique:
The welder uses a wider arc and faster travel speed to create a thin layer that “washes” over the previous beads, smoothing out the surface.
Applications:
- Improving the appearance of visible welds
- Smoothing out multi-pass welds
- Creating a more uniform surface for painting or coating
Advantages:
- Enhances the aesthetic appeal of the weld
- Can improve corrosion resistance by eliminating crevices
- Reduces the need for post-weld grinding or finishing
Temper Bead
Temper beads are used in welding processes where controlling the heat-affected zone (HAZ) is crucial, particularly in welding heat-treated steels.
Characteristics:
- Carefully controlled heat input
- Typically used in a specific sequence
- Aims to refine the grain structure in the HAZ
Technique:
The welder lays down beads in a specific sequence, with each subsequent bead partially overlapping the previous one. This technique helps to temper and refine the grain structure of the previous weld pass and the base metal’s HAZ.
Applications:
- Welding heat-treated steels
- Repairing critical components
- Situations where post-weld heat treatment is not possible
Advantages:
- Improves the mechanical properties of the HAZ
- Reduces the risk of hydrogen cracking
- Can eliminate the need for post-weld heat treatment in some cases
Factors Affecting Weld Bead Formation
Understanding the factors that influence weld bead formation is crucial for achieving high-quality welds. Here are some key factors to consider:
Image by cnaweld
Welding Parameters
- Amperage: Affects penetration and bead width
- Voltage: Influences arc length and bead shape
- Travel Speed: Determines bead size and penetration
- Wire Feed Speed: Affects deposition rate in wire-fed processes
Welding Technique
- Torch Angle: Impacts bead shape and penetration
- Arc Length: Affects heat input and bead appearance
- Weave Pattern: Determines bead width and fusion characteristics
Material Properties
- Base Metal Composition: Influences weldability and required techniques
- Material Thickness: Determines required heat input and number of passes
- Surface Condition: Affects weld quality and potential defects
Environmental Factors
- Wind: Can affect shielding gas coverage
- Temperature: Influences cooling rates and potential for cracking
- Humidity: May impact weld quality in certain processes
Common Weld Bead Defects
Recognizing and understanding common weld bead defects is essential for producing high-quality welds. Here are some defects to watch out for:
Porosity
Porosity appears as small holes or pores in the weld bead. It’s often caused by contamination, inadequate shielding gas coverage, or moisture in the weld area.
Undercut
Undercut is a groove melted into the base metal adjacent to the weld toe or weld root that is left unfilled by weld metal. It’s typically caused by excessive heat input, improper torch angle, or high travel speed.
Overlap
Overlap occurs when the weld metal “rolls” over the edge of the weld bead without fusing properly to the base metal. It’s often caused by insufficient heat input or improper torch manipulation.
Lack of Fusion
Lack of fusion is a defect where the weld metal fails to fuse completely with the base metal or the previous weld pass. It can be caused by insufficient heat input, improper joint preparation, or contamination.
Crater Cracks
Crater cracks form at the end of a weld bead due to rapid cooling and shrinkage of the weld metal. They can be prevented by using proper crater-filling techniques or crater elimination settings on the welding machine.
Choosing the Right Weld Bead Type
Selecting the appropriate weld bead type depends on various factors:
- Joint Design: The type of joint (butt, lap, T-joint, etc.) can influence the choice of bead type.
- Material Thickness: Thicker materials may require multi-pass beads, while thinner materials might be suitable for stringer beads.
- Welding Position: Some bead types are more suitable for certain welding positions (flat, vertical, overhead).
- Strength Requirements: The load-bearing capacity needed for the joint can dictate the bead type and size.
- Appearance: In visible applications, the aesthetic requirements may influence the choice of bead type.
- Welding Process: Different welding processes (MIG, TIG, Stick) may be better suited to certain bead types.
Conclusion
Understanding the different types of weld beads is crucial for any welder or engineer working with welded structures. Each type of weld bead has its own characteristics, applications, and techniques for creation. By mastering these various bead types, welders can produce high-quality welds tailored to specific project requirements.
