Yes, you need gas for flux core welding. It is essential for shielding the weld pool. Flux core welding uses a tubular wire filled with flux to protect the weld from atmospheric contamination. The flux melts and releases gas to shield the weld, allowing it to cool properly. Without the gas, the weld can be porous and weak.
Gas also helps in preventing oxidation during the welding process, resulting in stronger and cleaner welds. So, having the right gas is crucial for achieving high-quality welds in flux core welding projects.
Image by weldingboss
About Flux Core Welding
Flux core welding, also known as FCAW (Flux-Cored Arc Welding), is a popular welding method used in various industries. This technique uses a continuously fed consumable tubular electrode containing flux and a constant voltage power supply. The flux core wire heats up and melts to form a molten pool, which then solidifies to create a strong weld joint.
One of the key questions often asked by beginners is whether gas is needed for flux core welding. To address this, let’s delve into the basics of FCAW and its requirements.
The Basics Of Fcaw
Flux core welding is a semi-automatic or automatic arc welding process that requires a welding wire with a flux core and a power supply. Unlike traditional MIG welding, FCAW doesn’t always necessitate an external shielding gas, as the flux core itself provides the necessary protection against atmospheric contamination. This makes flux core welding a versatile and cost-effective choice for outdoor and windy conditions.
Comparing Fcaw With Other Welding Methods
When comparing FCAW with other welding methods, it’s essential to consider factors such as the welding environment, material thickness, and desired weld penetration. Unlike TIG and MIG welding, FCAW is more forgiving of rusty or dirty metals, making it suitable for heavy-duty applications in construction, shipbuilding, and structural steel fabrication.
The higher deposition rates of FCAW can result in increased productivity, making it an attractive option for large-scale welding projects.
Role Of Gas In Welding
Gas plays a crucial role in welding as it shields the weld pool from atmospheric contamination and oxidation. However, for flux core welding, gas is not always necessary as the flux core wire contains flux compounds that protect the weld from impurities.
Shielding Gases In Welding
In flux core welding, a welding wire is used that is filled with flux, a material that helps protect the weld from oxidation and contamination. This means that, unlike other welding methods, gas is not always required for flux core welding. However, in some cases, using shielding gas can improve the quality of the weld.
Impact Of Gas On Weld Quality
When used in flux core welding, shielding gas can improve the quality of the weld by preventing porosity, reducing spatter, and improving the appearance of the finished weld. The type of gas used can also impact the final result. For example, carbon dioxide gas can result in a deeper penetration, while a mixture of argon and carbon dioxide can provide a smoother, cleaner weld. While gas is not always necessary for flux core welding, it can play an important role in improving the quality of the weld.
By understanding the different types of shielding gases available and their impact on the final result, welders can make informed decisions about whether or not to use gas in their welding projects.
Image by tws.edu
Unraveling Flux Core Welding
Composition Of Flux Core Wire
Flux core wire contains a core of flux and a metal sheath.
The flux core wire serves multiple purposes:
- Stabilizes the arc
- Provides shielding from atmospheric contamination
How Flux Core Welding Works
Flux core welding uses a continuously-fed consumable electrode.
The process involves:
- Arc formation between the wire and workpiece
- Flux vaporizing to shield the weld

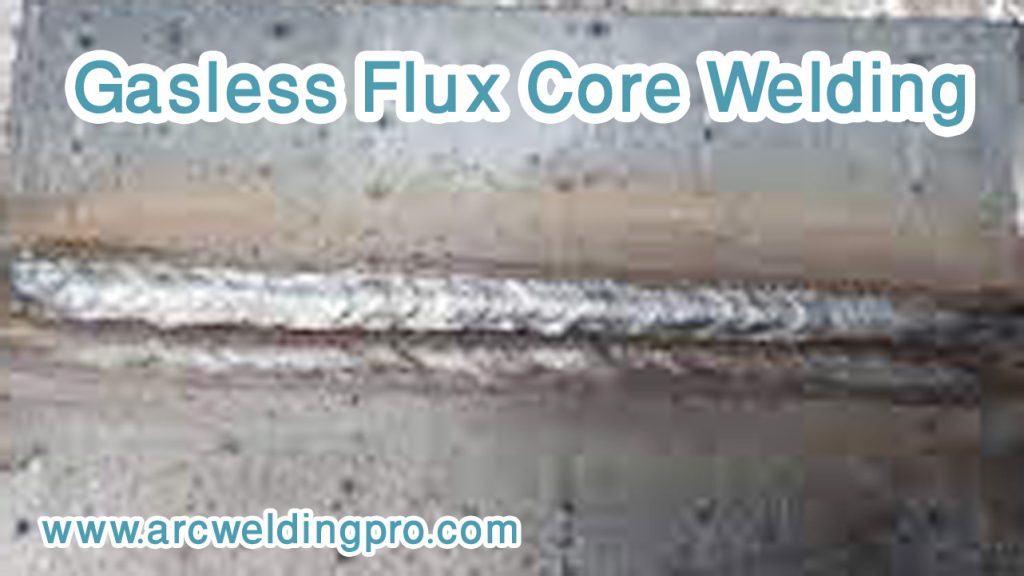

Gasless Flux Core Welding
Yes, gasless flux core welding does not require an external shielding gas. The flux core in the wire acts as a protective barrier, making it suitable for outdoor and windy conditions. This process is cost-effective and convenient for welding thicker materials without the need for a separate gas supply.
Gasless flux core welding, also known as self-shielded flux core welding, is a popular welding process that doesn’t require an external shielding gas. It uses a tubular wire with a flux core, which generates its shielding gas when it melts. This makes it a convenient and cost-effective option for welding in outdoor or windy conditions where using gas shielding can be challenging.
Advantages Of Self-shielded Fcaw
Gasless flux core welding offers several advantages, making it a preferred choice for many welders. Some of the key benefits include: –
Portability: Gasless flux core welding is highly portable and can be used in outdoor or remote locations without the need for gas cylinders.
Cost-Effective: Eliminating the need for an external shielding gas can result in cost savings for welders, making it an economical option.
Versatility: This welding process is versatile and can be used on a wide range of materials, including mild steel, stainless steel, and some types of alloys.
Limitations Of Gasless Fcaw
While gasless flux core welding offers several advantages, it also has some limitations that welders should be aware of:
Weld Quality: Gasless flux core welding may produce welds with higher spatter and a rougher appearance compared to gas-shielded welding processes.
Limited to Thin Materials: It may not be suitable for welding thicker materials, as the lack of gas shielding can result in inadequate penetration and weaker welds.
Outdoor Conditions: While it is designed for outdoor use, windy conditions can still affect the performance of gasless flux core welding, leading to potential weld defects.
Gasless flux core welding is a convenient and cost-effective option for outdoor and remote welding applications. It offers portability, cost savings, and versatility, but may result in lower weld quality and may have limitations when welding thicker materials or in adverse outdoor conditions.
Image by sntripathi
Gas-shielded Flux Core Welding
In gas-shielded flux core welding, gas is required to shield the weld pool from contaminants. The gas enhances the welding process, resulting in cleaner and stronger welds.
Gas-shielded flux core welding, also known as FCAW-G (Flux Core Arc Welding Gas-shielded), is a popular welding method that utilizes a continuously fed consumable tubular electrode.
This electrode contains flux and is used in conjunction with an external shielding gas. The combination of the flux and the shielding gas protects the molten weld pool from atmospheric contamination, resulting in high-quality welds with minimal spatter.
When To Use Gas With Fcaw
Gas-shielded flux core welding is typically used in applications that require deep penetration and high welding speeds. It is commonly employed in heavy fabrication, structural steel, shipbuilding, and pipeline welding. The use of shielding gas helps to improve the overall quality and appearance of the weld, making it suitable for critical applications where weld integrity is paramount.
Selecting the Right Gas For Fcaw
When selecting a shielding gas for FCAW, it is essential to consider the specific requirements of the welding application. Argon and carbon dioxide are commonly used gases for gas-shielded flux core welding. Argon is suitable for welding non-ferrous metals, while carbon dioxide is preferred for welding carbon steels.
Gas mixtures such as Argon-CO2 and Argon-Oxygen-CO2 are also utilized to achieve specific welding characteristics. Gas-shielded flux core welding offers numerous advantages, including increased welding speed, deeper penetration, and improved weld quality. When used in the appropriate applications and with the right shielding gas, FCAW-G can produce high-quality welds that meet the stringent requirements of various industries.
Equipment and Setup for Fcaw
When it comes to Flux Core Arc Welding (FCAW), having the right equipment and setup is essential for achieving quality welds. From choosing the right welder to essential accessories, getting the setup right can make all the difference in the welding process.
Choosing ahe Right Welder For Fcaw
When choosing a welder for Flux Core Arc Welding, it’s crucial to select a machine that is specifically designed for FCAW. Look for welders that offer variable voltage and wire speed controls, as these features allow for better control and adjustment during the welding process.
Essential Accessories For Flux Core Welding
When it comes to FCAW, having the right accessories is key to achieving optimal results. Essential accessories for Flux Core Welding include:
- Welding Helmet: Protects the eyes and face from sparks and UV radiation.
- Welding Gloves: Heat-resistant gloves for hand protection.
- Safety Glasses: Provides eye protection against flying debris.
- Chipping Hammer: Used for removing slag after welding.
- Wire Brush: Essential for cleaning the welded area.
- Clamp and Magnet: Holds the workpiece in place during welding.
- Protective Clothing: Flame-resistant clothing for overall safety.
Image by neit edu
Applications Of Flux Core Welding
Flux core welding, also known as FCAW (Flux Core Arc Welding), is a versatile and efficient welding process used in various industries. Understanding the applications of flux core welding is crucial for anyone considering its use in their projects.
Industries Relying On Fcaw
Flux core welding is widely utilized in the construction industry for structural steel and heavy equipment fabrication. Additionally, it is commonly employed in shipbuilding, pipeline construction, and automotive manufacturing due to its high deposition rates and ability to weld through rusty or dirty materials.
Materials Suitable For Fcaw
Flux core welding is suitable for welding a wide range of materials, including low-alloy and carbon steels, stainless steels, and some nickel-based alloys. It is particularly effective for welding thick materials, making it ideal for heavy industrial applications.
Tips and Best Practices
Tips and Best Practices:
Optimizing Your Fcaw Technique
- Adjust wire speed and voltage settings to suit the thickness of the metal being welded.
- Maintain a consistent travel speed to ensure proper penetration and bead appearance.
- Clean the workpiece surface to remove any dirt, rust, or contaminants that could affect the weld quality.
Maintaining Safety During Fcaw
- Wear appropriate PPE such as a welding helmet, gloves, and protective clothing.
- Ensure proper ventilation in the welding area to prevent exposure to fumes.
- Inspect equipment regularly to identify any potential hazards or malfunctions.
Conclusion
Understanding whether gas is needed for flux core welding is crucial for achieving optimal results. By grasping the role of gas in this welding process, you can enhance your efficiency and welding outcomes. Make informed decisions based on your project requirements and welding goals to ensure successful flux core welding projects.
