What is the best gas for MIG welding mild steel?

When it comes to MIG welding mild steel, choosing the right gas is crucial for achieving high-quality welds. The gas you use not only affects the welding process but also impacts the strength, appearance, and overall durability of your welds. In this article, we will discuss the best gas options for MIG welding mild steel, taking into consideration factors like cost-effectiveness and weld quality.

Photo by lovegbsk

Different types of gases used in MIG welding

MIG welding, also known as Gas Metal Arc Welding (GMAW), utilizes a shielding gas to protect the weld pool from contaminants in the atmosphere. The choice of gas plays a significant role in determining the characteristics of the weld. There are several types of gases commonly used in MIG welding, including carbon dioxide (CO2), argon, and mixtures of these gases.

CO2 is a popular option due to its affordability and ability to provide good penetration. It is often used in applications where deep penetration is required, such as welding thick mild steel. CO2 can produce more spatter compared to other gases, which may require additional cleaning after welding.

Argon, on the other hand, is known for its ability to improve the smoothness and overall quality of the weld. It is commonly used in conjunction with other gases to create a balanced mixture that offers both good penetration and reduced spatter. Argon also helps to protect the weld pool from oxidation, resulting in cleaner and stronger welds.

Shielding gases in MIG welding

The primary purpose of a shielding gas in MIG welding is to create a protective atmosphere around the weld pool. This gas shields the molten metal from the surrounding air, preventing contamination and ensuring a clean weld. The gas helps to regulate the temperature of the weld pool, which is essential for achieving proper fusion.

Shielding gases also influence the transfer of metal from the electrode to the workpiece. The type of gas used can affect the arc characteristics, such as its stability and intensity. This, in turn, impacts the weld bead shape, penetration, and overall weld quality.

Benefits of using the right gas for MIG welding mild steel

Using the right gas for MIG welding mild steel offers several benefits. Firstly, it helps to improve the quality and appearance of the weld. The proper choice of gas can result in a smooth, clean, and visually appealing weld bead. This is especially important when aesthetics are a consideration, such as in automotive or architectural applications.

Secondly, the right gas choice can enhance the strength and durability of the weld. Different gases have varying effects on the mechanical properties of the weld, including its tensile strength and ductility. By selecting the appropriate gas, you can optimize the weld’s performance and ensure it meets the required specifications.

Lastly, using the right gas can improve the overall welding process. The correct gas mixture can reduce spatter, improve arc stability, and make the welding operation more efficient. This not only saves time but also reduces the need for post-weld cleanup.

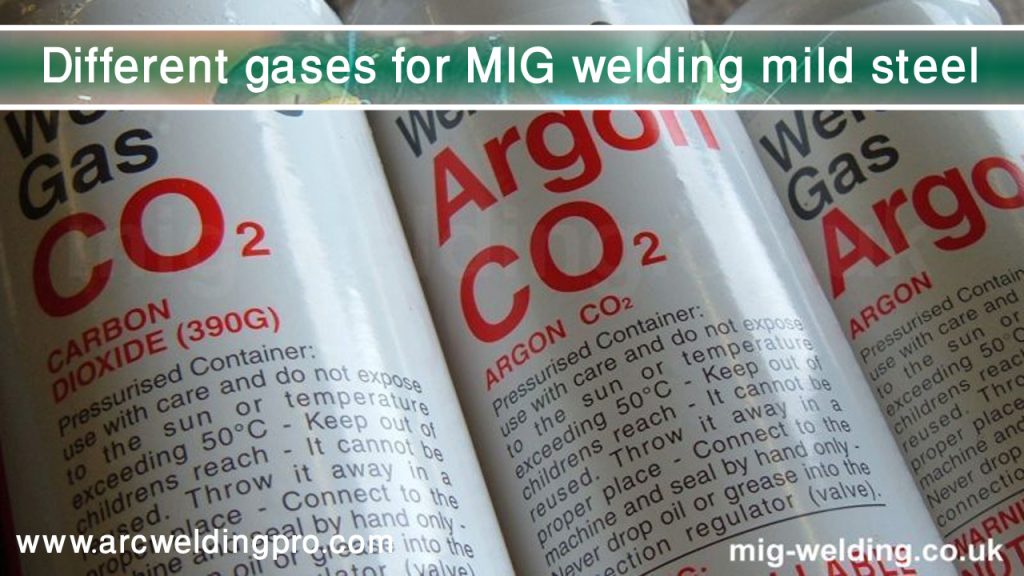

Comparing different gases for MIG welding mild steel – CO2, argon, and mixtures

Let’s take a closer look at the different gases commonly used for MIG welding mild steel – carbon dioxide (CO2), argon, and mixtures of these gases. Each gas has its own unique characteristics and advantages.

Image by mig-welding.co.uk

Carbon dioxide (CO2)

CO2 is an affordable option and widely used in MIG welding. It provides good penetration, making it suitable for applications that require deep weld penetration, such as welding thick mild steel plates. CO2 also has a higher heat transfer rate, which can result in faster welding speeds.

CO2 can produce more spatter compared to other gases, which may require additional cleaning after welding. It also has a tendency to create a more convex weld bead profile, which may not be ideal for aesthetic purposes.

Argon

Argon is often used in combination with other gases to create a balanced mixture for MIG welding mild steel. It offers excellent arc stability, which helps to produce a smooth and consistent weld bead. Argon also provides good shielding properties, protecting the weld pool from oxidation and contamination.

One of the main advantages of using argon is its ability to improve the overall quality of the weld. It reduces spatter and produces a flatter weld bead profile, resulting in cleaner and more aesthetically pleasing welds. Argon is particularly beneficial when welding thinner materials or when appearance is a critical factor.

Mixtures of CO2 and argon

A common gas mixture used in MIG welding mild steel is a blend of carbon dioxide (CO2) and argon. This mixture, commonly known as C25 gas, combines the benefits of both gases. CO2 provides good penetration, while argon helps to improve the smoothness and overall quality of the weld.

C25 gas offers excellent penetration, reduced spatter, and cleaner welds. It is suitable for a wide range of mild steel applications and is often considered the go-to choice for general-purpose welding. The precise ratio of CO2 to argon can vary depending on the specific requirements of the weld.

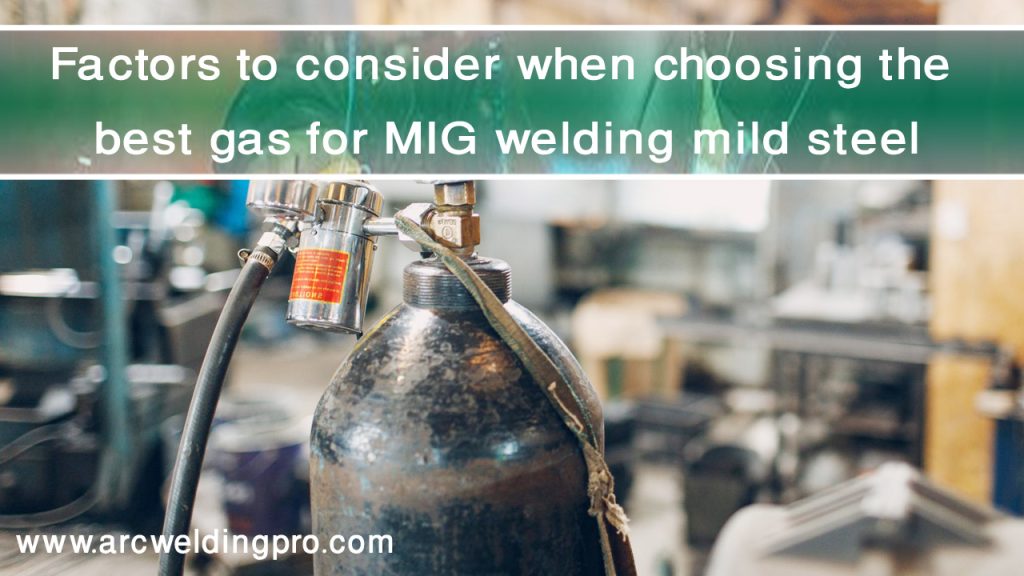

Factors to consider when choosing the best gas for MIG welding mild steel

When selecting the best gas for MIG welding mild steel, several factors should be taken into consideration. These include:

Welding application and material thickness

The specific requirements of the welding application and the thickness of the mild steel material play a crucial role in determining the ideal gas choice. Thicker materials may require gases with better penetration capabilities, such as a higher percentage of CO2. On the other hand, thinner materials may benefit from gases that provide smoother weld beads and reduced spatter, such as mixtures with higher argon content.

Budget considerations

The cost of the gas is an important factor to consider, especially for those with budget constraints. CO2 is generally more affordable compared to argon, making it an attractive option for cost-conscious welders. However, it is essential to balance cost with weld quality and overall performance to ensure satisfactory results.

Weld quality requirements

The desired weld quality and appearance should also be taken into account when selecting the gas. If aesthetics are a priority, a gas mixture with a higher argon content may be preferred. For applications where strength and penetration are critical, a higher percentage of CO2 may be necessary.

Availability and accessibility

The availability and accessibility of the gas should be considered, especially for those working in remote areas or locations with limited gas supply options. It is important to choose a gas that can be easily obtained and replenished to avoid disruptions in the welding process.

Image by americantorchtip

Recommended gas mixtures for specific welding applications

While the choice of gas ultimately depends on the specific requirements of the welding application, certain gas mixtures are commonly recommended for specific scenarios. Here are a few examples:

General-purpose welding

For general-purpose welding of mild steel, a common recommendation is to use a C25 gas mixture, consisting of 75% argon and 25% carbon dioxide. This mixture provides a good balance between penetration and weld quality, making it suitable for a wide range of applications.

Thin sheet metal welding

When welding thin sheet metal, a gas mixture with a higher argon content is often preferred. A common recommendation is to use an 85% argon and 15% CO2 mixture. This combination helps to minimize distortion and improve the appearance of the weld on thin materials.

Thick plate welding

For welding thicker mild steel plates, a higher percentage of CO2 may be necessary to ensure adequate penetration. A gas mixture of 90% CO2 and 10% argon is often recommended for this purpose. This combination offers deep penetration and is suitable for applications that require strong and robust welds.

It is important to note that these recommendations serve as general guidelines, and adjustments may be necessary based on the specific welding conditions and requirements.

Tips for optimizing gas usage and achieving high-quality welds

To optimize gas usage and achieve high-quality welds, consider the following tips:

Use the appropriate gas flow rate: Ensure that the gas flow rate is set correctly to provide adequate shielding without wasting excessive gas. The recommended flow rate varies depending on the welding application and gas type, so consult the manufacturer’s guidelines for specific recommendations.

Maintain a consistent gas coverage: Keep the gas nozzle close to the weld joint to maintain a consistent gas coverage. This helps to prevent oxidation and contamination, ensuring a clean and strong weld.

Use the correct welding technique: Employ proper welding techniques, such as maintaining the correct travel speed, electrode angle, and distance between the electrode and workpiece. This helps to ensure proper weld penetration and reduces the risk of defects.

Clean and prepare the workpiece: Before welding, ensure that the workpiece is clean and free from contaminants, such as rust, oil, or paint. Proper cleaning and preparation contribute to better weld quality and reduce the risk of porosity or other defects.

Monitor and adjust gas settings: Continuously monitor the gas settings during welding and make adjustments as necessary. Factors such as wind, drafts, or changes in the welding position may require modifications to the gas flow rate or nozzle position to maintain optimal shielding.

Practice good welder technique: Develop good welding habits, such as maintaining a steady hand, maintaining a consistent travel speed, and using proper heat settings. These factors contribute to better weld control and overall weld quality.

Some mistakes to avoid when selecting and using gas for MIG welding mild steel

While choosing and using the right gas is crucial for achieving high-quality welds, it is equally important to avoid common mistakes that can compromise the welding process. Here are some common mistakes to avoid:

Using the wrong gas

Using an inappropriate gas for the specific welding application can lead to poor weld quality, insufficient penetration, or excessive spatter. Always refer to the manufacturer’s recommendations or consult with welding experts to ensure the correct gas is selected.

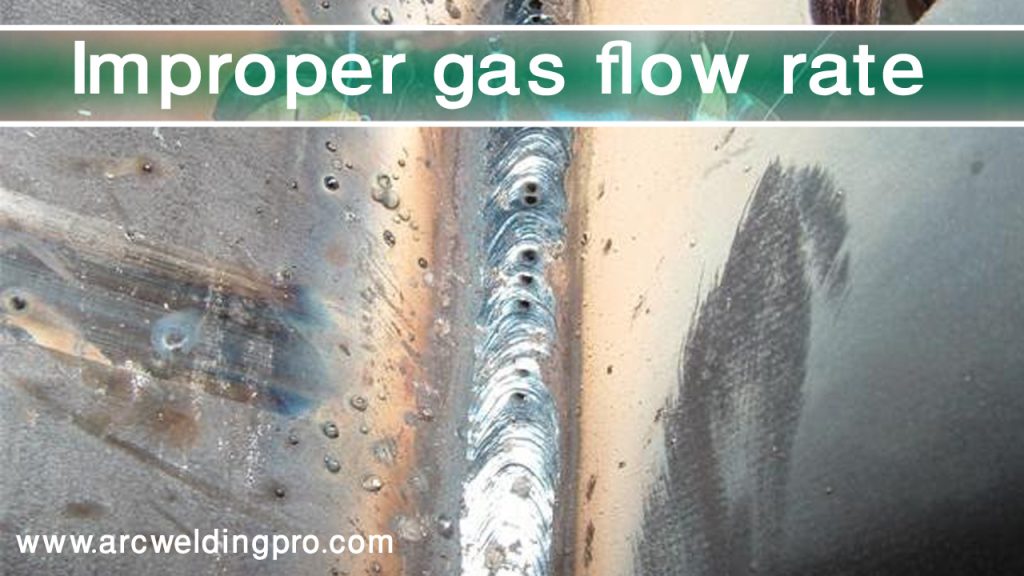

Improper gas flow rate

Setting the gas flow rate too high or too low can negatively impact the weld quality. Too high of a flow rate can waste gas, while too low of a flow rate may result in inadequate shielding. Follow the manufacturer’s guidelines for the recommended flow rate and make adjustments as necessary.

Image by kavithamizhan.blogspot

Neglecting cleanliness

Failing to properly clean and prepare the workpiece can result in contamination and poor weld quality. Remove any rust, oil, or paint from the surface before welding to ensure optimal fusion and prevent defects.

Insufficient gas coverage

Inadequate gas coverage can lead to oxidation, contamination, and weak welds. Keep the gas nozzle close to the weld joint and maintain a consistent gas coverage throughout the welding process.

Neglecting gas monitoring

Failing to monitor the gas settings during welding can lead to issues such as insufficient shielding or gas leaks. Regularly check the gas flow rate, nozzle position, and gas supply to ensure optimal performance.

Ignoring welder technique

Poor welding techniques, such as inconsistent travel speed, improper electrode angle, or incorrect heat settings, can affect the weld quality. Practice good welder technique and adhere to recommended welding parameters for optimal results.

By avoiding these common mistakes and following best practices, you can maximize the effectiveness of the chosen gas and achieve high-quality welds in MIG welding mild steel.

Conclusion

Selecting the best gas for MIG welding mild steel is crucial for achieving high-quality welds that meet the required specifications. Different gases, including carbon dioxide (CO2), argon, and mixtures of these gases, offer unique characteristics and advantages.

CO2 provides good penetration and is cost-effective, making it suitable for applications that require deep weld penetration. Argon improves weld quality and appearance, reducing spatter and producing cleaner welds. Mixtures of CO2 and argon, such as C25 gas, offer a balanced combination of penetration and reduced spatter, making them ideal for general-purpose welding.

When choosing the best gas, consider factors like the welding application, material thickness, budget, and desired weld quality. It is also essential to optimize gas usage by following best practices, including proper gas flow rate, maintaining consistent gas coverage, and practicing good welding techniques.

By understanding the different gas options available and their respective benefits, you can make an informed decision on the best gas for MIG welding mild steel. Whether it’s achieving deep penetration, improving weld quality, or optimizing cost-effectiveness, the right gas choice plays a significant role in ensuring high-quality and durable welds.
