Gas Welding Torches: Versatile Tools of Metal Joining

Gas welding torches are fundamental tools in the world of metalworking, playing a crucial role in joining metals through the application of heat. These versatile devices have been a staple in workshops, construction sites, and manufacturing facilities for over a century.

Despite the advent of more modern welding techniques, gas welding torches continue to be valued for their portability, simplicity, and effectiveness in various applications.

We’ll explore the intricacies of gas welding torches, their components, types, applications, and the principles behind their operation. Whether you’re a seasoned welder or a curious beginner, this article will provide valuable insights into these essential tools of the trade.

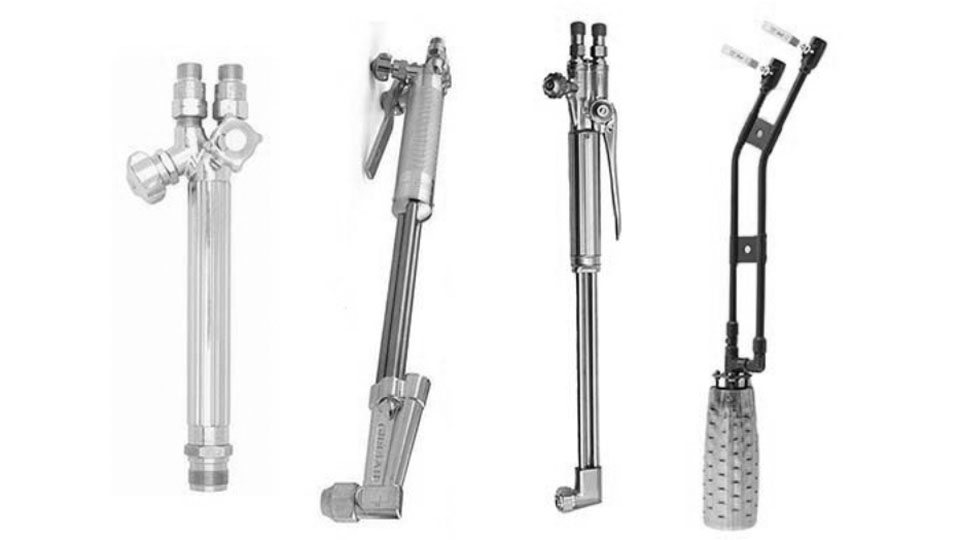

Image by steelsupplylp

Basics of Gas Welding

Before delving into the specifics of gas welding torches, it’s important to understand the fundamental principles of gas welding.

What is Gas Welding?

Gas welding is a fusion welding process that uses the heat generated by the combustion of gases to melt and join metals. The most common gas combination used is oxygen and acetylene, known as oxy-acetylene welding. However, other fuel gases like propane or hydrogen can also be used in certain applications.

Gas Welding Process

In gas welding:

1. The welding torch mixes the fuel gas and oxygen in the correct proportions.
2. The gas mixture is ignited at the torch tip, producing a high-temperature flame.
3. This flame is directed at the metal workpieces, melting them at the joint.
4. Filler metal may be added to strengthen the joint and fill any gaps.
5. As the flame moves along the joint, the molten metal solidifies, creating a strong bond.

Anatomy of a Gas Welding Torch

Gas welding torches are precision instruments composed of several key components, each playing a vital role in the welding process.

Main Components

1. Handle: The main body of the torch, which the welder holds.
2. Mixing Chamber: Where the fuel gas and oxygen are combined before combustion.
3. Valves: Separate valves for controlling the flow of fuel gas and oxygen.
4. Torch Tip: The nozzle where the gas mixture exits and the flame is formed.
5. Hoses: Separate hoses for delivering fuel gas and oxygen to the torch.
6. Regulators: Attached to the gas cylinders to control gas pressure.

Types of Torch Tips

Torch tips come in various sizes and designs to suit different welding tasks:

1. Single-piece Tips: The mixing chamber and nozzle are one unit.
2. Two-piece Tips: The mixing chamber and nozzle are separate, allowing for easier cleaning and replacement.
3. Multi-flame Tips: Designed for specific applications like heating or brazing.

Types of Gas Welding Torches

Gas welding torches come in several configurations, each designed for specific applications or user preferences.

Oxy-Acetylene Torches

The most common type of gas welding torch, oxy-acetylene torches are known for their versatility and high flame temperature. They can be used for welding, cutting, and heating a wide range of metals.

Oxy-Propane Torches

These torches use propane instead of acetylene as the fuel gas. While they don’t achieve as high a temperature as oxy-acetylene, they are often preferred for their lower cost and reduced risk of flashback.

Oxy-Hydrogen Torches

Less common but used in specific applications, oxy-hydrogen torches produce a very clean flame, making them suitable for working with precious metals or in laboratory settings.

Air-Acetylene Torches

These torches use atmospheric air instead of pure oxygen. They are simpler and more portable but limited to lower temperature applications like soldering and brazing.

Operating Principles of Gas Welding Torches

Understanding how gas welding torches function is crucial for their safe and effective use.

Gas Mixing

The key to effective gas welding is the proper mixing of fuel gas and oxygen:

1. Fuel gas and oxygen enter the torch through separate channels.
2. They are combined in the mixing chamber in precise proportions.
3. The mixture then travels to the torch tip where it is ignited.

Flame Adjustment

Proper flame adjustment is critical for achieving the desired welding results:

1. Neutral Flame: Equal parts of oxygen and acetylene, ideal for most welding tasks.
2. Oxidizing Flame: More oxygen than acetylene, used for welding brass or bronze.
3. Carburizing Flame: More acetylene than oxygen, used for welding high-carbon steels or for adding carbon to metal surfaces.

Heat Control

The welder controls the heat input by:

1. Adjusting the gas mixture ratios.
2. Changing the distance between the flame and the workpiece.
3. Selecting different sized torch tips for various thicknesses of metal.

Safety Considerations in Gas Welding

Gas welding involves high temperatures and potentially explosive gases, making safety a paramount concern.

Personal Protective Equipment (PPE)

Essential PPE for gas welding includes:

1. Welding goggles or face shield with appropriate shade lenses
2. Heat-resistant gloves
3. Flame-resistant clothing
4. Safety shoes

Workspace Safety

Ensuring a safe workspace involves:

1. Proper ventilation to remove fumes and gases
2. Keeping flammable materials away from the welding area
3. Having appropriate fire extinguishing equipment readily available

Gas Cylinder Safety

Proper handling and storage of gas cylinders is crucial:

1. Secure cylinders in an upright position
2. Use cylinder caps when not in use
3. Store oxygen and fuel gas cylinders separately
4. Never use cylinders that show signs of damage or corrosion

Flashback Arrestors

These safety devices are essential to prevent the flame from traveling back through the torch into the hoses or regulators, which can cause explosions.

Applications of Gas Welding Torches

Despite the advent of newer welding technologies, gas welding torches remain relevant in various applications.

Metal Fabrication

Gas welding is still used in many metal fabrication tasks, especially for:

1. Thin sheet metal work
2. Pipe welding
3. Repair and maintenance of older metal structures

Automotive Repair

In automotive repair, gas welding torches are used for:

1. Exhaust system repairs
2. Body panel work
3. Brazing of brake and fuel lines

Jewelry Making

The precise control and clean flame of certain gas welding torches make them ideal for:

1. Soldering precious metals
2. Shaping and forming small metal pieces
3. Annealing metals to increase their workability

Sculpture and Art

Artists and sculptors use gas welding torches for:

1. Creating metal sculptures
2. Joining decorative metal pieces
3. Achieving unique surface textures through controlled heating

HVAC and Plumbing

In these industries, gas welding torches are used for:

1. Soldering copper pipes
2. Brazing refrigeration lines
3. Heating pipes for bending

Advantages of Gas Welding Torches

Gas welding torches offer several advantages that keep them relevant in modern metalworking.

Portability

Gas welding equipment is highly portable, making it ideal for:

1. Field repairs
2. Remote construction sites
3. Mobile welding services

Versatility

A single gas welding setup can be used for multiple processes:

1. Welding various metals
2. Cutting metal with the addition of a cutting attachment
3. Heating metal for bending or heat treatment

Cost-Effectiveness

Gas welding equipment is generally:

1. Less expensive than many electric welding machines
2. Cheaper to maintain and repair
3. More energy-efficient for certain applications

Precision

Gas welding allows for precise control over:

1. Heat input
2. Weld pool size
3. Filler metal addition

Limitations of Gas Welding Torches

While gas welding torches have many advantages, they also have some limitations.

Speed

Gas welding is generally slower than many modern welding processes, making it less suitable for high-volume production.

Material Thickness

Gas welding is most effective on thinner materials. Welding thick sections can be time-consuming and may require multiple passes.

Automation Difficulty

Unlike some modern welding processes, gas welding is challenging to automate, relying heavily on the skill of the individual welder.

Heat-Affected Zone

The broad flame of a gas welding torch can create a larger heat-affected zone compared to more focused heat sources like electric arcs or lasers.

Maintenance and Care of Gas Welding Torches

Proper maintenance is crucial for the longevity and safe operation of gas welding torches.

Regular Cleaning

1. Clean torch tips regularly to prevent blockages
2. Remove spatter and debris from the torch body
3. Keep valves and connections clean and free from dirt or oil

Leak Checks

Regularly check for gas leaks:

1. Use soapy water to check connections for bubbles indicating leaks
2. Never use a flame to check for gas leaks

Component Replacement

Replace worn or damaged components promptly:

1. O-rings and seals
2. Torch tips
3. Hoses showing signs of wear or damage

Proper Storage

When not in use:

1. Store torches in a clean, dry place
2. Disconnect from gas supplies
3. Protect torch tips from damage

Future of Gas Welding Torches

While newer welding technologies have emerged, gas welding torches continue to evolve and find their place in modern metalworking.

Improved Efficiency

Ongoing research aims to improve the efficiency of gas welding:

1. Development of more efficient gas mixtures
2. Improved torch designs for better gas flow and flame control

Enhanced Safety Features

Future gas welding torches may incorporate:

1. Advanced flashback prevention mechanisms
2. Integrated gas leak detection systems
3. Automatic shut-off features

Integration with Modern Technologies

We may see gas welding torches integrated with:

1. Digital controls for precise gas mixture and flow regulation
2. Augmented reality systems for training and guidance
3. IoT capabilities for monitoring and maintenance tracking

Conclusion

Gas welding torches, despite being one of the oldest welding technologies, continue to play a significant role in the world of metalworking. Their simplicity, versatility, and effectiveness in certain applications ensure their place in workshops, construction sites, and artistic studios around the world.

While they may not be the fastest or most advanced welding tools available, gas welding torches offer a level of control and flexibility that is hard to match with other processes. Their portability and ability to perform multiple functions  welding, cutting, and heating  make them invaluable tools for many professionals.

As we look to the future, it’s clear that gas welding torches will continue to evolve, incorporating new safety features and potentially integrating with modern digital technologies. However, the fundamental principles that have made them so useful for over a century are likely to remain unchanged.

For both seasoned welders and those new to the craft, understanding and mastering the use of gas welding torches provides a solid foundation in metalworking skills. The knowledge and experience gained from working with these versatile tools can enhance one’s capabilities across a wide range of welding and metalworking processes.

In an age of rapid technological advancement, the gas welding torch stands as a testament to the enduring value of simple, effective tools in the hands of skilled craftspeople. Whether you’re repairing an antique metal piece, creating a work of art, or tackling a challenging field repair, the gas welding torch remains a reliable and capable ally in the world of metal joining and fabrication.
