Ultrasonic plastic welding is a highly efficient and precise technique used to join thermoplastic materials through high-frequency sound waves. This process is widely utilized in industries such as automotive, electronics, medical, and packaging due to its speed, cleanliness, and ability to create strong bonds without the need for adhesives or additional consumables.
Understanding how ultrasonic plastic welding works can help businesses make informed decisions about integrating this technology into their manufacturing processes.

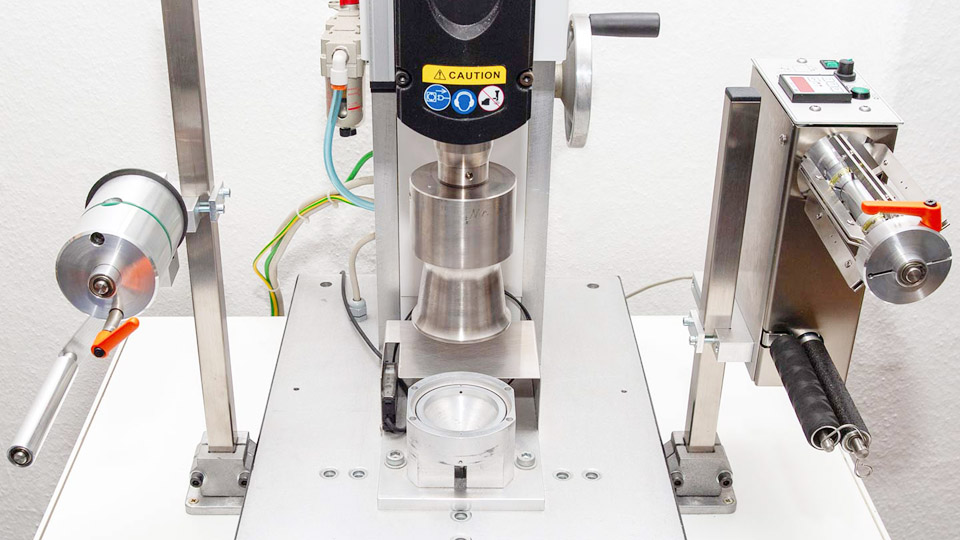

Image by knmsonic
What is Ultrasonic Plastic Welding?
Ultrasonic plastic welding is a method of joining two plastic parts together using high-frequency ultrasonic vibrations. These vibrations generate localized heat at the joint area, causing the plastic to melt and fuse. The process does not involve any external heat source, adhesives, or fasteners, making it a clean and efficient method for creating strong, permanent bonds.
Applications of Ultrasonic Plastic Welding
- Automotive Industry: Used for assembling components like bumpers, dashboards, and interior panels.
- Electronics: Commonly used for welding plastic casings, connectors, and small electronic parts.
- Medical Devices: Ideal for producing sterile medical components like IV catheters, filters, and masks.
- Packaging: Used for sealing blister packs, tubes, and other plastic packaging materials.
Principles of Ultrasonic Plastic Welding
The principle behind ultrasonic plastic welding is to convert electrical energy into mechanical vibrations. These vibrations are directed into the plastic parts to create heat through friction at the interface of the materials being joined. This heat causes the plastics to melt and fuse, forming a strong bond once cooled.
Key Components of Ultrasonic Plastic Welding System
- Power Supply: Converts low-frequency electrical energy from a standard power outlet into high-frequency electrical energy, typically in the range of 20 kHz to 40 kHz.
- Transducer: Converts the high-frequency electrical energy into mechanical vibrations using piezoelectric crystals.
- Booster: Amplifies the mechanical vibrations generated by the transducer.
- Horn (Sonotrode): A specialized tool that applies the ultrasonic vibrations to the plastic parts. It is designed to match the geometry of the parts being welded.
- Fixture: Holds the plastic parts in place, ensuring proper alignment and contact during the welding process.
Ultrasonic Plastic Welding Process
The ultrasonic plastic welding process involves several steps that ensure the creation of strong and reliable welds.
Preparation
Before welding, the plastic parts must be cleaned to remove any dirt, oils, or other contaminants that could interfere with the welding process. The parts should be properly aligned in the fixture to ensure a consistent weld.
Welding Process
- Clamping: The plastic parts are clamped between the horn and the fixture to hold them in place.
- Application of Vibrations: The power supply sends high-frequency electrical energy to the transducer, which converts it into mechanical vibrations. These vibrations are then amplified by the booster and transmitted through the horn to the plastic parts.
- Welding Cycle: The vibrations generate frictional heat at the interface of the plastic parts, causing them to melt and fuse together.
- Cooling: Once the vibrations stop, the melted plastic cools and solidifies, forming a strong bond.

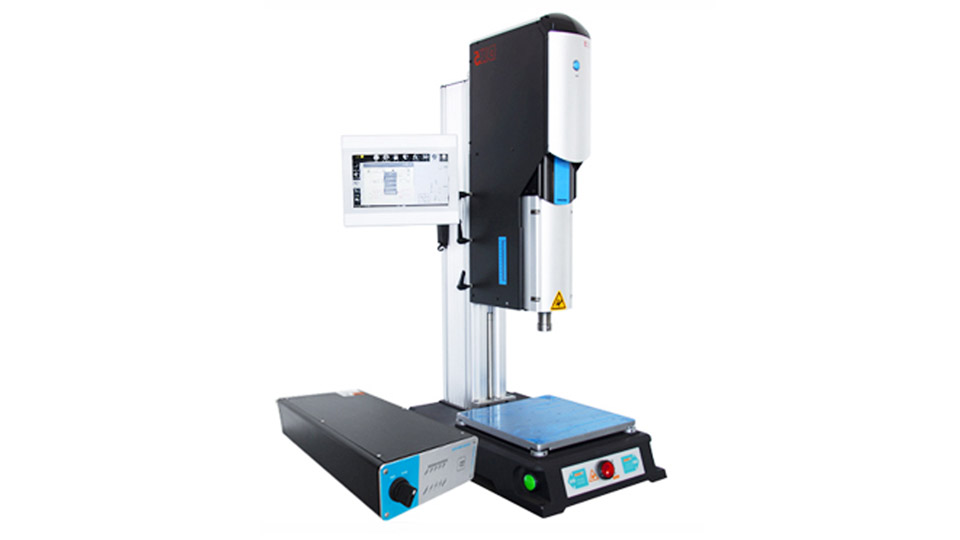

Image by dizo2020 en made-in-china
Post-Welding Inspection
After welding, the joint is inspected to ensure it meets the required strength and quality standards. This can involve visual inspection, tensile testing, or non-destructive testing methods.
Advantages of Ultrasonic Plastic Welding
Ultrasonic plastic welding offers several benefits that make it a preferred choice for joining thermoplastic materials in various industries.
- Fast Process: The welding process is rapid, often taking just a few seconds per weld, which enhances production efficiency.
- Clean and Environmentally Friendly: The process does not produce fumes, emissions, or waste, making it suitable for cleanroom environments and environmentally conscious manufacturing.
- Strong Bonds: Ultrasonic welding creates strong, reliable bonds without the need for adhesives or mechanical fasteners.
- Energy Efficient: It uses less energy compared to traditional welding methods, as it only heats the joint area without affecting the rest of the part.
- Versatility: Can join a wide range of thermoplastics and complex geometries that are difficult to weld using other methods.
Limitations of Ultrasonic Plastic Welding
While ultrasonic plastic welding offers many advantages, it also has some limitations that need to be considered.
- Material Compatibility: Not all plastics are suitable for ultrasonic welding; it works best with thermoplastics that have similar melting points.
- Part Thickness and Size: The process is generally limited to thinner parts, as thicker or larger parts can absorb the vibrations, reducing the effectiveness of the weld.
- Initial Equipment Cost: The initial investment for ultrasonic welding equipment can be high, making it less accessible for small-scale operations.
- Precision Requirement: Requires precise control of the welding parameters and alignment of the parts to achieve consistent results.
Ultrasonic Plastic Welding with Other Plastic Welding Methods
To understand where ultrasonic plastic welding stands, its helpful to compare it with other common plastic welding methods, such as heat welding and adhesive bonding.
| Feature | Ultrasonic Plastic Welding | Heat Welding | Adhesive Bonding |
|---|---|---|---|
| Heat Source | Frictional heat from vibrations | External heat source | Chemical reaction |
| Materials Joined | Thermoplastics | Thermoplastics, some elastomers | Plastics, composites |
| Speed | Fast (seconds) | Slow to moderate | Moderate |
| Need for Consumables | No | No (except for filler rods) | Yes (adhesives) |
| Energy Efficiency | High | Moderate | Low to moderate |
| Environmental Impact | Low (no emissions) | High (fumes, emissions) | Low to moderate |
| Joint Strength | High | High | Moderate |
| Equipment Cost | High | Moderate | Low to moderate |
| Applications | Electronics, automotive, medical | Industrial, automotive | Packaging, general use |
Factors Affecting Ultrasonic Plastic Welding Quality
Achieving high-quality welds in ultrasonic plastic welding depends on several factors, including material properties, equipment setup, and process parameters.
Material Properties
- Compatibility: The plastics being welded should have similar melting points and compatible molecular structures.
- Surface Condition: Clean, smooth surfaces improve welding quality, while contaminants can lead to weak joints.
Welding Parameters
- Amplitude: The amplitude of the ultrasonic vibrations must be properly set to ensure sufficient heat generation without damaging the parts.
- Pressure: Correct clamping pressure ensures intimate contact between the parts and efficient energy transfer.
- Weld Time: Precise control of the weld time is crucial to avoid under-welding (weak bonds) or over-welding (material degradation).
Design of the Horn and Fixture
- Horn Design: The horn must be correctly designed to match the shape of the parts and ensure uniform energy distribution.
- Fixture Design: A well-designed fixture holds the parts in place, maintaining consistent pressure and alignment during welding.
Future Trends in Ultrasonic Plastic Welding
As technology advances, ultrasonic plastic welding is evolving with new innovations that expand its capabilities and applications.
Automation and Robotics: Integration with automated systems and robots allows for high-speed, consistent production lines, reducing human error and increasing throughput.
Advanced Materials: Research into new horn materials and designs is expanding the range of plastics that can be welded, including high-performance and composite materials.
Smart Monitoring: Incorporation of sensors and real-time monitoring systems enables better control and quality assurance, reducing defects and improving overall weld quality.
Conclusion
Ultrasonic plastic welding is a powerful and versatile technique for joining thermoplastic materials, offering numerous advantages such as speed, cleanliness, and strong bonds. It is widely used across various industries for applications that demand high precision and reliability. Despite some limitations, the ongoing advancements in ultrasonic welding technology are likely to broaden its applicability and improve its efficiency, making it an increasingly valuable tool in modern manufacturing.
