Welding plays a crucial role in many industries, from construction and automotive to aerospace and shipbuilding. The strength of a weld is critical to ensure the durability and safety of the welded structure. Well cover the fundamental aspects of calculating weld strength, various factors that affect it, and provide practical steps to determine weld strength for different weld types.

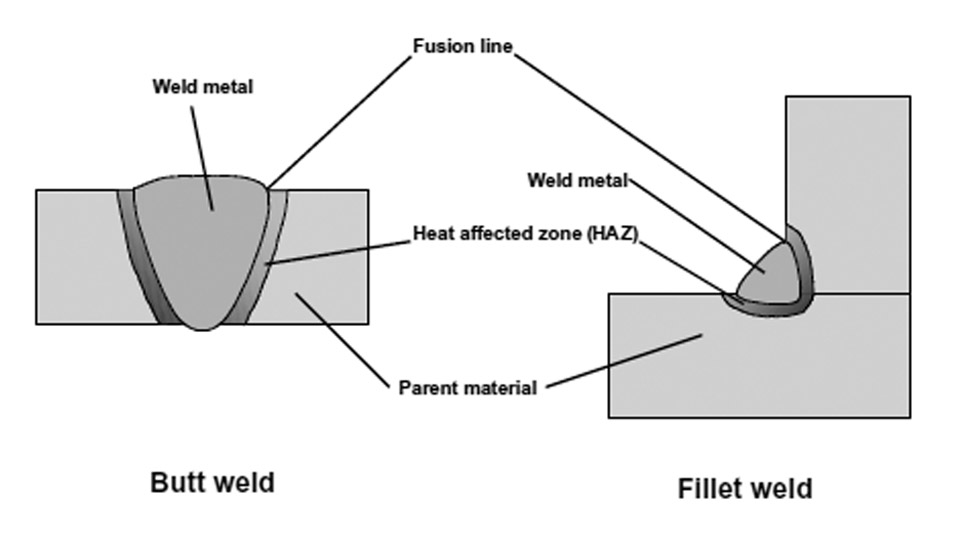

Image by steelconstruction
What is Weld Strength?
Weld strength refers to the ability of a welded joint to withstand forces or loads without breaking or failing. A weld needs to be as strong as, or stronger than, the base materials being joined, depending on the application.
Weld strength is influenced by several factors, such as the welding technique, materials used, weld geometry, and external conditions (temperature, pressure, etc.).
When calculating weld strength, its essential to understand the different types of forces that a weld might encounter, including:
- Tensile Strength: The ability of a weld to resist forces that pull it apart.
- Shear Strength: The welds ability to resist forces that try to slide the welded parts relative to one another.
- Compressive Strength: The welds capacity to withstand forces that push or compress the weld joint.
Understanding these force types helps engineers choose the right weld type and welding method, ensuring the joint’s integrity.
Factors Affecting Weld Strength
Several factors impact weld strength. Before delving into the calculations, lets explore these factors:
Material Properties
The type of material being welded significantly affects the strength of the weld. Different metals and alloys have varying tensile, shear, and compressive strengths. Common materials used in welding include steel, aluminum, and stainless steel, each with its unique properties. To achieve optimal weld strength, selecting compatible welding filler material is essential.
Weld Type
The type of weld, such as fillet welds, butt welds, or lap welds, will affect the strength of the joint. Each type has different mechanical properties and may be more or less resistant to specific forces. For example:
- Fillet Welds are commonly used for T-joints, corner joints, or lap joints and typically resist shear forces.
- Butt Welds are used for end-to-end connections and generally resist tensile forces.
Understanding the appropriate weld type for the specific application is critical to calculating weld strength accurately.
Welding Process
Various welding processes, such as MIG, TIG, or Stick welding, can yield different results in terms of weld quality and strength. The choice of process impacts heat input, penetration, and the overall mechanical properties of the weld.
Weld Size
The size of the weld, including its throat thickness and length, plays a significant role in determining weld strength. A larger weld typically carries more load. Calculating the exact weld size helps ensure that the joint can withstand the forces applied to it.
Quality of Weld
The presence of weld defects, such as cracks, porosity, or inclusions, can reduce the strength of a weld. Ensuring high weld quality through proper techniques and inspections is essential.
How to Calculate Weld Strength?
To calculate weld strength, you need to consider the type of weld, the forces acting on it, and the material properties. Below are the steps for calculating weld strength, categorized by different weld types.
Tensile Strength Calculation for Butt Welds
Butt welds are used when two materials are joined end-to-end. The tensile strength calculation for butt welds focuses on the cross-sectional area of the weld.
Formula:
Tensile?Strength=Ultimate?Tensile?Strength?Weld?Area
- Ultimate Tensile Strength (UTS): This is a material property that defines the maximum stress the material can withstand when pulled apart.
- Weld Area: This is the area of the cross-section where the welding occurred. Its calculated by multiplying the weld length by the weld throat (the smallest cross-sectional area of the weld).
Example:
Lets assume a butt weld has the following properties:
- UTS of the base material: 400 MPa
- Throat thickness: 6 mm
- Weld length: 100 mm
First, calculate the weld area:
Weld?Area=6?mm?100?mm=600?mm?
Next, calculate the tensile strength:
Tensile?Strength=400?MPa?600?mm?=240,000?N
This means the weld can resist a tensile load of 240,000 N before failing.
Shear Strength Calculation for Fillet Welds
Fillet welds are commonly subjected to shear forces, so calculating their shear strength is crucial. The size and orientation of the fillet weld determine its resistance to shear forces.
Formula:
Shear?Strength=Shear?Strength?Coefficient?Weld?Throat?Area
- Shear Strength Coefficient (SSC): This is generally 0.6 times the UTS for many metals, but this can vary based on the material.
- Weld Throat Area: The throat area is calculated by multiplying the throat thickness (usually 0.707 times the leg length for fillet welds) by the weld length.
Example:
For a fillet weld with:
- UTS: 400 MPa
- Leg length: 8 mm
- Weld length: 100 mm
First, calculate the throat thickness:
Throat?Thickness=0.707?8?mm=5.656?mm
Now calculate the throat area:
Throat?Area=5.656?mm?100?mm=565.6?mm?
Finally, calculate the shear strength (SSC = 0.6 ? UTS):
Shear?Strength=0.6?400?MPa?565.6?mm?=135,744?N
This means the fillet weld can withstand a shear force of 135,744 N.
Compressive Strength for Welds
Welds under compressive loads need to be strong enough to resist buckling or deformation. Typically, the compressive strength of a weld is higher than its tensile or shear strength, but this depends on the material and weld type.
Formula:
Compressive?Strength=Compressive?Strength?of?Material?Weld?Area
Because materials tend to have high compressive strength, calculating the compressive strength of welds is often less critical than calculating tensile or shear strength. However, in applications where a weld is heavily compressed, such as in columns or support structures, its essential to ensure the weld is appropriately sized.
Comparison Table for Weld Strength Formulas
The table below compares the key calculations for different weld types:
| Weld Type | Load Type | Formula | Example Calculation |
|---|---|---|---|
| Butt Weld | Tensile Load | UTS ? Weld Area | 400 MPa ? 600 mm? = 240,000 N |
| Fillet Weld | Shear Load | 0.6 ? UTS ? Throat Area | 0.6 ? 400 MPa ? 565.6 mm? = 135,744 N |
| Compressive Weld | Compressive Load | Compressive Strength of Material ? Weld Area | Varies by material; often less critical |
This table offers a quick comparison between the different calculations used to estimate weld strength for various load conditions.
Weld Strength in Real-Life Applications
Structural Welds
In structural engineering, welds must withstand various loads, including tension, compression, and shear. For example, in a building’s steel framework, a combination of fillet welds and butt welds might be used to join beams and columns. The calculated weld strength must meet or exceed the expected forces to ensure the structure’s integrity.
Automotive and Aerospace Applications
In automotive and aerospace industries, welds are subjected to both static and dynamic loads. The lightweight materials used, such as aluminum alloys, require careful calculation of weld strength to avoid failure under stress. Fatigue strength, which is the welds ability to withstand repeated loads, is often as critical as its tensile or shear strength.
Pressure Vessels
Pressure vessels, such as boilers or storage tanks, need welds that can endure high internal pressures. Here, butt welds are often used, and their tensile strength must be calculated to ensure that the welds can handle the internal forces without rupturing.
Ensuring High Weld Strength: Best Practices
While calculations are essential, ensuring high weld strength also involves following best practices, including:
Pre-Weld Preparation
Properly preparing the materials and surfaces to be welded is critical for creating a strong bond. Clean the base materials thoroughly, remove rust or contaminants, and ensure the correct fit-up before welding.
Correct Welding Parameters
Use the correct welding parameters, such as amperage, voltage, and travel speed, depending on the welding process and material thickness. Incorrect parameters can lead to weak or defective welds.
Post-Weld Inspection
After welding, its vital to inspect the welds for defects using non-destructive testing (NDT) methods such as X-rays or ultrasonic testing. These tests ensure the welds integrity and strength before the component is put into service.
Conclusion
Weld strength calculations are essential for ensuring the safety and reliability of welded structures. By understanding the material properties, weld types, and the forces involved, engineers can make accurate weld strength calculations,
ensuring that the weld will hold up under various load conditions. Proper weld design, preparation, and inspection are equally crucial in creating a strong and reliable weld.
