How To Weld Carbon Steel: Expert Tips & Tricks

To weld carbon steel, you will need a welding machine, filler metal, and safety gear. Begin by cleaning the metal surfaces, then heat the metal until it reaches the appropriate temperature for welding.

Apply the filler metal to create a strong bond between the two pieces of metal. Welding carbon steel is a common practice in various industries, including construction, manufacturing, and automotive. It is a process of joining two pieces of metal by heating them to a temperature that allows the metals to melt and fuse together.

Carbon steel is a popular choice for welding because of its durability and strength. Welding carbon steel requires precision and attention to detail to ensure a strong and reliable weld. We will discuss the steps to weld carbon steel and the equipment and safety gear required to do so.

Welding Carbon Steel

Welding carbon steel requires precise techniques for a strong and durable bond. Clean the metal surface, choose the appropriate welding method, and select the suitable filler material to achieve a successful weld. Mastering these steps ensures a high-quality weld on carbon steel.

Basics Of Carbon Steel

Before diving into the process of welding carbon steel, it is crucial to understand the basics of this versatile material. Carbon steel is an alloy composed primarily of iron and carbon, with trace amounts of other elements. It is known for its strength, durability, and cost-effectiveness, making it a popular choice in various industries.

Carbon steel can be classified into four main categories based on its carbon content: low carbon steel, medium carbon steel, high carbon steel, and ultra-high carbon steel. The carbon content determines the material’s hardness, strength, and weldability. Low carbon steel, for example, is easier to weld than high carbon steel due to its lower carbon content.

Carbon steel can be further classified based on its microstructure, which affects its mechanical properties and welding characteristics. The common microstructures of carbon steel include ferrite, pearlite, bainite, and martensite. Each microstructure has its own unique properties, influencing the material’s weldability and performance.

Importance Of Proper Technique

When it comes to welding carbon steel, employing the proper technique is of utmost importance. Using the correct welding technique ensures strong and durable welds while minimizing the risk of defects or failures. Here are some key factors to consider:

Preparation

Before starting the welding process, proper preparation is essential. This includes cleaning the surfaces to be welded, removing any dirt, rust, or contaminants. Additionally, the edges of the metal pieces should be properly beveled to ensure a strong weld joint.

Electrode Selection

Choosing the right electrode is crucial for achieving optimal results. The electrode material and type should be compatible with the carbon steel being welded. Common electrode types for carbon steel welding include E6010, E7018, and ER70S-6, each offering different characteristics and suitability for specific applications.

Welding Technique

The welding technique used can greatly impact the quality of the weld. Common welding techniques for carbon steel include shielded metal arc welding (SMAW), gas metal arc welding (GMAW), and flux-cored arc welding (FCAW). The appropriate technique should be selected based on the specific requirements of the project.

Heat Control

Proper heat control during the welding process is crucial to avoid distortion and maintain the desired properties of the carbon steel. Excessive heat can lead to material weakening or warping, while insufficient heat may result in incomplete fusion or weak welds.

Post-Weld Treatment

After completing the weld, post-weld treatment is necessary to ensure the integrity of the joint. This may involve processes such as grinding, cleaning, and stress relieving to remove any imperfections and enhance the overall quality of the weld.

By adhering to these important factors and employing the appropriate techniques, welders can achieve strong, reliable, and visually appealing welds when working with carbon steel.

Safety First: Preparing To Weld

Before starting the welding process, it’s crucial to prioritize safety measures.

Essential Safety Gear

• Welding helmet with a proper shade lens
• Leather gloves and apron
• Heavy-duty boots and long pants
• Ear protection and respiratory mask

Understanding Welding Hazards

1. Electric shock risk from welding currents
2. Exposure to harmful fumes and gases
3. Fire hazards due to sparks and hot metal

Always wear proper safety gear and be aware of welding hazards.

Choosing the Right Tools and Materials

To weld carbon steel effectively, it’s crucial to select the right tools and materials. Start with a welding machine suitable for carbon steel and choose electrodes designed for this specific metal. Additionally, ensure you have proper safety gear such as gloves, helmet, and protective clothing for a successful welding process.

Image by bharatsteels

Welding carbon steel requires the right tools and materials to ensure a successful and safe welding process. When it comes to welding, selecting the appropriate welding equipment and accessories is as important as the welding technique itself. In this article, we will guide you through the process of choosing the right tools and materials for welding carbon steel, including selecting a welder, necessary accessories, and consumables.

Selecting A Welder

Selecting the right welder is crucial for welding carbon steel. There are several types of welders available in the market, such as MIG, TIG, and Stick welders. Each type of welder has its advantages and disadvantages, and your choice depends on the thickness of the steel, the welding position, and your personal preference. For welding thin carbon steel, a MIG welder is an excellent choice as it offers precise control over the welding process, making it easy to create clean, strong welds.

On the other hand, TIG welders are suitable for thicker steel and offer superior weld quality. Stick welders, also known as Shielded Metal Arc Welding (SMAW), are ideal for welding outdoors or in tough environments.

Necessary Accessories And Consumables

Apart from selecting the right welder, there are several accessories and consumables that you need for welding carbon steel. Some of the necessary accessories include a welding helmet, gloves, and safety glasses to protect your eyes and skin from the intense light emitted during welding. In addition, you need to purchase the right consumables, including welding wire or electrode, gas, and filler metal. The type of welding process you choose determines the consumables you need.

MIG welding requires a spool of welding wire and a shielding gas, while TIG welding requires tungsten electrodes and filler metal. In conclusion, choosing the right tools and materials is critical to ensure a successful welding process. Selecting the right welder, necessary accessories, and consumables is essential to achieve high-quality welds when working with carbon steel.

Pre-weld Preparation

Before you begin welding carbon steel, it is crucial to properly prepare the metal for a strong and durable weld. The pre-weld preparation process involves cleaning the steel and using cutting and fitting techniques to ensure the pieces fit together seamlessly.

Cleaning The Steel

Cleaning the steel surface is an essential step in pre-weld preparation. It removes any impurities, dirt, rust, or mill scale that may hinder the welding process and compromise the integrity of the weld. Here are a few steps to follow when cleaning the steel:

1. Use a wire brush or grinder to remove any loose rust or mill scale from the surface.
2. Wipe the steel with a clean cloth or rag to remove dust and debris.
3. Apply a suitable degreaser or solvent to remove any oil, grease, or contaminants from the surface.
4. Rinse the steel with water and dry it thoroughly to ensure a clean, dry surface for welding.

Cutting And Fitting Techniques

Proper cutting and fitting techniques are crucial to achieving a precise and secure weld. Here are some guidelines to follow when cutting and fitting the carbon steel:

• Measure and mark: Use a measuring tape and marker to accurately measure and mark the desired dimensions on the steel.
• Cutting: Depending on the thickness of the steel, you can use various cutting methods such as oxy-fuel cutting, plasma cutting, or mechanical cutting tools like saws or shears. Ensure that the cuts are clean and straight.
• Fit-up: After cutting the steel, carefully fit the pieces together to ensure proper alignment and a tight fit. Use clamps or tack welds to hold the pieces in place.
• Beveling: In some cases, you may need to create a beveled edge on the steel to achieve a better weld joint. This involves grinding or machining a sloped edge along the joint to allow for better penetration of the weld metal.

By following these pre-weld preparation steps, you can ensure that your carbon steel is clean, properly cut, and accurately fitted, setting the foundation for a successful welding process. Remember, investing time in the pre-weld preparation stage can significantly improve the quality and strength of your weld.

Welding Techniques for Carbon Steel

Carbon steel is a popular material in welding due to its strength and versatility. Different welding techniques can be used to join carbon steel effectively.

Image by airproducts

Mig Welding Basics

• MIG welding is ideal for carbon steel due to its speed and ease of use.
• Ensure the workpiece is clean to achieve quality welds.
• Adjust the voltage and wire feed speed for optimal results.

Tig Welding Strategies

1. TIG welding offers precision when working with thin carbon steel.
2. Use a foot pedal to control heat during the welding process.
3. Employ post-weld cleaning to remove impurities for strong joints.

Stick Welding Tips

• Stick welding is versatile and suitable for outdoor projects.
• Select the appropriate electrode based on the carbon steel thickness.
• Maintain a consistent arc length for uniform welds.

Controlling Heat and Preventing Warpage

When welding carbon steel, controlling heat and preventing warpage are critical to achieving a strong, high-quality weld. Proper heat management techniques and avoiding common mistakes can help ensure a successful weld while minimizing warpage. Let’s explore these crucial aspects in more detail.

Heat Management Techniques

Controlling the heat input is vital when welding carbon steel to prevent warpage. Some effective heat management techniques include:

• Preheating the base metal to reduce thermal shock and control the cooling rate.
• Intermittent welding to allow for cooling between weld passes and prevent excessive heat buildup.
• Using the correct welding parameters, such as voltage, amperage, and travel speed, to maintain the proper heat input.

Avoiding Common Mistakes

Several common mistakes can lead to excessive heat input and warpage when welding carbon steel. To prevent these issues, it’s important to:

1. Avoid excessive heat by using the correct welding technique and parameters.
2. Minimize weld defects by ensuring proper fit-up and joint preparation to reduce the need for excessive welding passes.
3. Use backstep welding to distribute heat evenly and minimize distortion.

Post-weld Finishing Touches

After welding carbon steel, its crucial to pay attention to the post-weld finishing touches to ensure the strength, integrity, and longevity of the weld. Post-weld finishing touches involve cleaning the weld and applying protective coatings to safeguard the welded area from corrosion and other environmental factors.

Cleaning The Weld

Properly cleaning the weld area is essential to remove any impurities, residues, or contaminants that could compromise the welds integrity. The cleaning process involves:

• Removing any slag, spatter, or debris using a wire brush or chipping hammer
• Wiping the weld area with a solvent or degreaser to eliminate oils, grease, or other surface contaminants
• Inspecting the weld for any remaining imperfections or irregularities

Applying Protective Coatings

Protective coatings play a vital role in preserving the welds quality and durability. After cleaning the weld, the application of protective coatings involves:

1. Choosing a suitable coating based on the environmental conditions and the specific requirements of the welded structure
2. Applying the selected coating evenly and thoroughly to ensure complete coverage of the weld area
3. Allowing sufficient drying or curing time as per the manufacturers recommendations
4. Inspecting the coated weld for any missed spots or uneven application

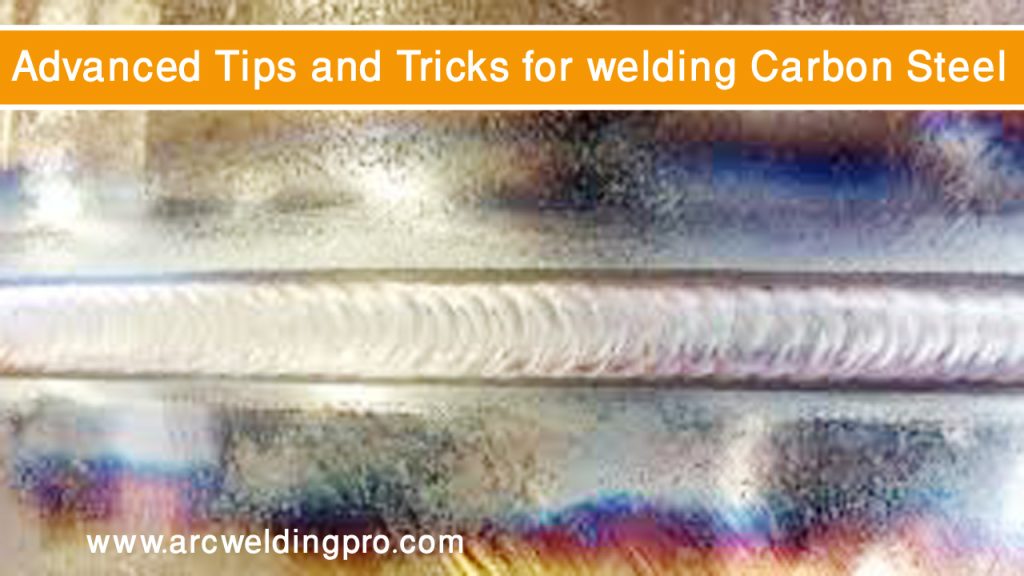

Advanced Tips and Tricks for Welding Carbon Steel

When it comes to welding carbon steel, mastering the advanced tips and tricks can take your welding skills to the next level. From dealing with complex joints to improving weld strength and appearance, these advanced techniques can help you achieve high-quality, professional results.

Dealing With Complex Joints

Welding complex joints in carbon steel requires precision and expertise. Here are some advanced tips to tackle these challenging welding tasks:

• Use proper fit-up and clamping techniques to ensure a tight joint.
• Employ advanced welding positions, such as overhead and vertical, to access difficult-to-reach joints.
• Consider preheating the metal to reduce cracking and ensure proper fusion in complex joints.
• Utilize specialized welding processes like TIG or MIG with pulse settings for intricate joint configurations.

Improving Weld Strength And Appearance

Enhancing the strength and appearance of your carbon steel welds can elevate the overall quality of your work. Here are some advanced tips and tricks to achieve this:

1. Implement multi-pass welding techniques to build up weld strength, especially in critical load-bearing applications.
2. Employ proper welding parameters, including travel speed and heat input, to control the bead profile and minimize distortion.
3. Utilize back purging or shielding techniques to improve the aesthetics and integrity of welds, particularly in high-visibility applications.
4. Consider post-weld treatments, such as grinding and polishing, to enhance the appearance of the weld and ensure a smooth, professional finish.

Conclusion

Mastering the art of welding carbon steel is essential for various projects. Remember to prioritize safety measures and practice regularly. With the right techniques and equipment, you can create strong and durable welds. Keep learning and honing your skills to become a proficient carbon steel welder.
