Joining galvanized pipes to copper pipes can be a challenging task, but with the right techniques and tools, it can be accomplished successfully. Whether you are embarking on a plumbing project or tackling a DIY repair, understanding how to connect these two types of pipes is essential.
We will explore the various methods you can use to join galvanized pipes to copper pipes, including soldering, compression fittings, and dielectric unions. We will discuss the benefits and drawbacks of each method, as well as provide step-by-step instructions to ensure a secure and leak-free connection.
Image by reddit
Differences Between Galvanized and Copper Pipes
When it comes to plumbing, understanding the differences between galvanized and copper pipes is crucial. Galvanized pipes are steel pipes that have been coated with a layer of zinc to help prevent corrosion. On the other hand, copper pipes are known for their durability and resistance to corrosion.
However, connecting these two materials can be tricky due to their different properties. Galvanized pipes are often found in older homes, while copper pipes are more commonly used in modern plumbing systems.
To join galvanized to copper pipes effectively, it’s important to consider the compatibility of the two materials. Galvanized steel and copper have different galvanic properties, which can lead to corrosion if not properly connected. By choosing the right connectors and techniques, you can create a secure and long-lasting joint between galvanized and copper pipes.
Tools and Materials Needed for Joining Galvanized and Copper Pipes
Before starting the process of joining galvanized to copper pipes, make sure you have the necessary tools and materials on hand. You will need a pipe cutter to cut the pipes to the desired length, a deburring tool to remove any rough edges, and emery cloth to clean the surfaces of the pipes. Additionally, you’ll need flux, solder, a propane torch, and safety gear such as gloves and goggles for soldering.
When it comes to using compression fittings, make sure you have the correct size fittings for both the galvanized and copper pipes. Compression fittings consist of three parts a compression nut, a compression ring, and a compression seat. Having the right tools and materials will ensure a smooth and successful connection between galvanized and copper pipes.
Preparing the Pipes for Joining
Proper preparation of the pipes is key to achieving a strong and secure connection between galvanized and copper pipes. Start by measuring and cutting the pipes to the required length using a pipe cutter. Once cut, use a deburring tool to remove any burrs or sharp edges that could affect the connection.
Next, clean the surfaces of the pipes using emery cloth to remove any dirt, grease, or oxidation. This step is essential for ensuring a clean and tight joint between the galvanized and copper pipes. Properly preparing the pipes will help prevent leaks and ensure a reliable connection that will last for years to come.
Techniques for Joining Galvanized and Copper Pipes – Soldering and Compression Fittings
When it comes to joining galvanized to copper pipes, there are two main techniques that are commonly used soldering and compression fittings. Soldering involves using heat to melt solder and create a bond between the pipes, while compression fittings use pressure to secure the connection.
Soldering is a traditional method that requires skill and practice to master. It involves applying flux to the pipes, heating the joint with a torch, and applying solder to create a watertight seal. Compression fittings, on the other hand, are easier to use and do not require any heat. Simply insert the pipes into the fittings and tighten the compression nut to create a secure joint.

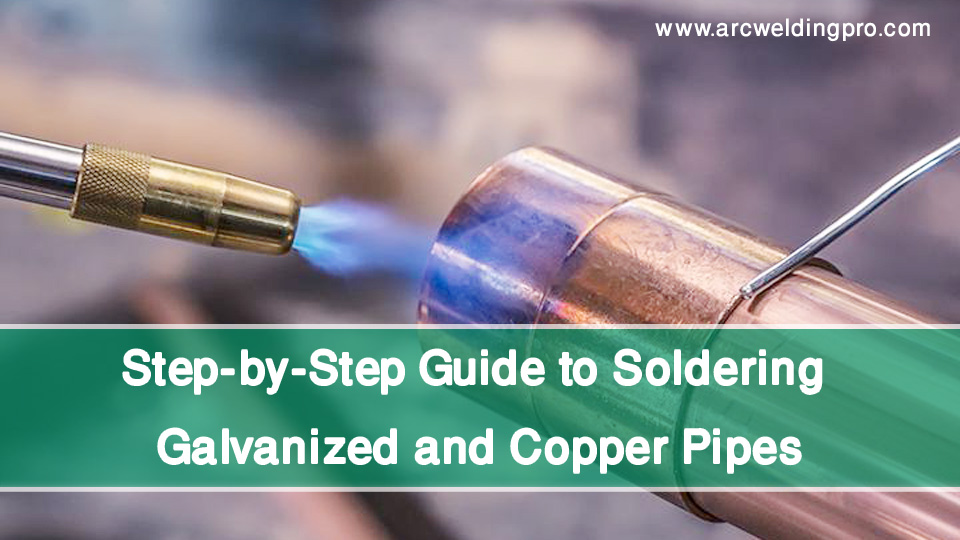

Step-by-Step Guide to Soldering Galvanized and Copper Pipes
Soldering galvanized and copper pipes requires precision and attention to detail. Start by cleaning the pipes with emery cloth and applying flux to the surfaces that will be joined. Next, heat the joint evenly with a propane torch until it reaches the temperature needed to melt the solder.
Image by bernzomatic
Once the pipes are hot enough, apply the solder to the joint and allow it to flow into the connection. Be sure to rotate the pipes as you solder to ensure an even distribution of the solder.
Finally, wipe away any excess solder and inspect the joint for any leaks. Soldering can create a strong and reliable connection between galvanized and copper pipes when done correctly.
Step-by-Step Guide to Using Compression Fittings for Joining Galvanized and Copper Pipes
Using compression fittings to join galvanized to copper pipes is a straightforward process that does not require any heat. Start by inserting the pipes into the fittings and ensuring they are pushed in securely.
Next, place the compression ring and seat over the pipe and tighten the compression nut with a wrench.
Make sure the compression nut is tightened enough to create a watertight seal but be careful not to overtighten, as this can damage the fittings.
Once the compression nut is secure, check the joint for any leaks by running water through the pipes. Compression fittings offer a quick and easy way to connect galvanized and copper pipes without the need for soldering.
Common Mistakes to Avoid When Joining Galvanized and Copper Pipes
When joining galvanized to copper pipes, there are some common mistakes that should be avoided to ensure a successful connection. One of the most common errors is not properly cleaning the pipes before joining them, which can lead to leaks and a weak joint.
Another mistake to avoid is overheating the pipes when soldering, as this can cause damage to the pipes and result in a faulty connection. Additionally, using the wrong size or type of fittings can lead to leaks and corrosion over time.
By taking the time to prepare the pipes correctly and using the right techniques, you can avoid these common mistakes and create a secure joint between galvanized and copper pipes.
Tips for Ensuring a Secure and Leak-Free Connection
To ensure a secure and leak-free connection between galvanized and copper pipes, follow these tips. First, always measure and cut the pipes accurately to ensure a proper fit. Clean the pipes thoroughly with emery cloth and flux to remove any debris or oxidation that could affect the connection.
When soldering, make sure to heat the joint evenly and apply the solder carefully to create a tight seal. If using compression fittings, ensure that the pipes are inserted correctly and that the compression nut is tightened securely.
Finally, test the connection for leaks by running water through the pipes before sealing up the area.
Conclusion
Joining galvanized to copper pipes is a task that requires careful consideration and the right techniques. By understanding the differences between galvanized and copper pipes, preparing the pipes correctly, and choosing the appropriate method for joining them, you can create a secure and lasting connection.
Whether you opt for soldering or compression fittings, following the step-by-step guides and avoiding common mistakes will help you achieve a leak-free joint.
With the right tools, materials, and know-how, you can confidently tackle your plumbing project and connect galvanized to copper pipes with ease. So, roll up your sleeves and get ready to take on this DIY challenge with confidence!
