Lincoln MIG Gun Liner Replacement

Replacing the liner in a Lincoln MIG gun is an essential part of maintaining smooth wire feeding, stable arc performance, and high-quality welds. The liner, which is a flexible tube running through the MIG gun’s cable, guides the welding wire from the wire feeder to the contact tip.

The liner can become clogged with debris, kinked, or worn out, leading to wire feeding issues such as birdnesting, burnback, and erratic arc performance. Regular maintenance and timely replacement of the liner are critical for keeping your Lincoln MIG welder in top working condition.

Well walk you through the process of replacing a Lincoln MIG gun liner, explain the importance of maintaining the liner, discuss how to identify when the liner needs replacement, and provide a comparison of different liner types to help you choose the right one for your specific welding needs.

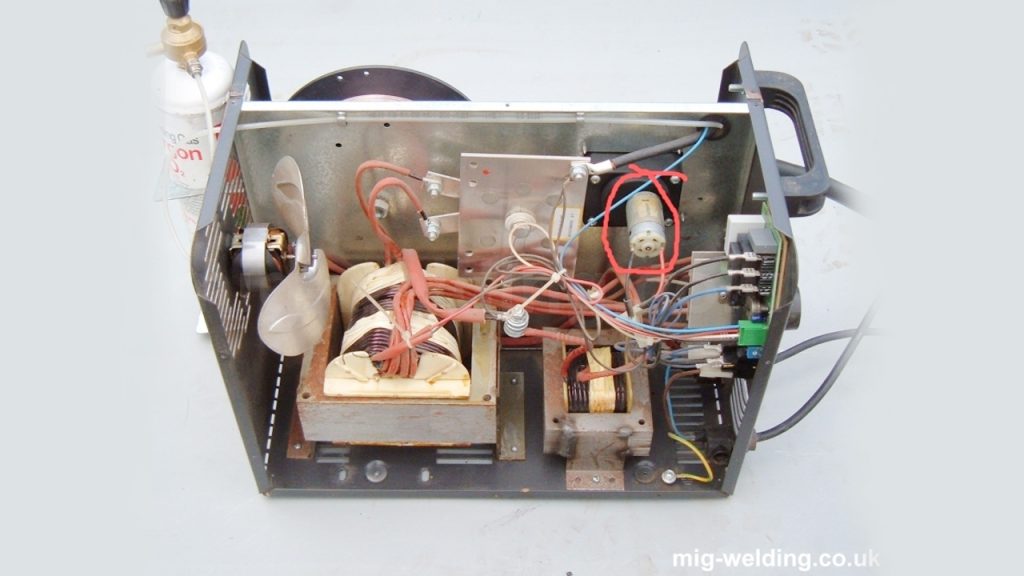

Image by mig welding co uk

Why is the MIG Gun Liner Important?

The MIG gun liner is a crucial component that ensures the welding wire moves smoothly from the wire feeder through the gun and out of the contact tip. The liners main purpose is to reduce friction between the welding wire and the interior of the MIG guns cable, ensuring consistent wire feeding and a stable arc.

When the liner becomes damaged, clogged, or kinked, it can restrict wire movement, leading to issues such as:

• Inconsistent wire feed: This can cause an unstable arc and poor weld quality.
• Burnback: When the wire melts into the contact tip due to slow or inconsistent feeding.
• Birdnesting: Wire tangling near the drive rolls, which occurs when the wire encounters too much resistance inside the liner.
• Excessive spatter: An unstable arc caused by poor wire feeding can increase the amount of spatter produced during welding.

By maintaining and replacing the liner when necessary, you can avoid these issues and ensure that your Lincoln MIG welder performs optimally, delivering clean, strong welds with minimal defects.

Signs You Need to Replace Your Lincoln MIG Gun Liner

Its important to recognize when its time to replace the liner in your Lincoln MIG gun. Ignoring the signs of a worn or damaged liner can lead to decreased performance and costly repairs. Here are some key signs that indicate your liner needs replacement:

Erratic Wire Feeding

One of the first signs that your liner may need replacing is erratic wire feeding. If you notice that the wire skips, jerks, or feeds inconsistently, it could be due to friction inside a dirty or kinked liner. This can cause an unstable arc and poor welds.

Frequent Burnback Issues

Burnback occurs when the welding wire melts back into the contact tip instead of depositing onto the workpiece. This can happen if the wire is feeding too slowly or not at all, often due to excessive friction in a worn or damaged liner. If you experience frequent burnback, the liner may need to be replaced.

Birdnesting

Birdnesting is when the welding wire tangles near the drive rolls, preventing the wire from feeding smoothly through the liner. This usually occurs when there is a blockage or restriction inside the liner, causing the wire to bunch up. If birdnesting becomes a recurring problem, its a clear indication that the liner needs to be replaced.

Increased Friction When Feeding Wire

If you notice increased resistance or difficulty when pulling the welding wire through the gun, the liner may be clogged with debris or damaged. Excessive friction can lead to wire feeding issues and reduce the overall performance of the welder.

Visible Damage or Wear

If you inspect the liner and see visible signs of damage such as kinks, bends, or cracks, its time to replace the liner. A damaged liner will not allow the wire to feed smoothly, which can lead to further complications.

How to Replace a Lincoln MIG Gun Liner: Step-by-Step Guide

Replacing the liner in your Lincoln MIG gun is a relatively simple process that can be completed with a few basic tools. By following these steps, you can ensure that the liner is properly replaced, allowing for smooth wire feeding and improved weld quality.

Tools and Materials Needed:

• Replacement liner (ensure it matches the diameter and length of your Lincoln MIG welder gun)
• Wire cutters (to trim the liner if necessary)
• Pliers or wrenches
• Clean cloth or compressed air (for cleaning out the gun)
• MIG gun owners manual (for reference)

Step 1: Power Off the Welder and Disconnect from Power Source

Before starting the replacement process, ensure the welder is powered off and disconnected from the power source. This prevents any accidental activation of the wire feeder while youre working on the MIG gun.

Step 2: Remove the Welding Wire

Cut the welding wire near the drive rolls and remove it from the MIG gun. This ensures that no wire is left inside the liner while youre replacing it. Pull the remaining wire out of the gun to clear the liner for removal.

Step 3: Remove the Contact Tip

Unscrew and remove the contact tip from the MIG gun. This step is necessary to access the liner and ensure that you can insert the new liner into the correct position.

Step 4: Disconnect the MIG Gun from the Wire Feeder

Disconnect the MIG gun from the wire feeder by loosening the guns connection to the drive rolls. This step allows you to work on the gun without any obstructions.

Step 5: Remove the Old Liner

Locate the liner inside the MIG guns cable assembly and carefully pull the old liner out of the gun. Be sure to remove the liner gently to avoid damaging the MIG guns cable or other internal components.

Step 6: Clean the MIG Gun and Cable

Before installing the new liner, use compressed air or a clean cloth to remove any debris, dust, or metal shavings from inside the MIG gun and cable assembly. A clean environment will help ensure that the new liner functions properly and reduces the risk of wire feeding issues.

Step 7: Insert the New Liner

Insert the new liner into the MIG guns cable assembly, feeding it carefully through the length of the cable until it reaches the contact tip end of the gun. Make sure the liner is fully seated and positioned correctly to allow for smooth wire feeding.

Step 8: Trim the Liner (If Necessary)

If the new liner extends too far beyond the contact tip holder, use wire cutters to trim the liner to the appropriate length. The liner should sit just inside the contact tip holder to ensure the wire can feed without obstruction.

Step 9: Reattach the Contact Tip

Once the liner is properly seated and trimmed, reattach the contact tip to the end of the MIG gun. Ensure the contact tip is tightened securely, but avoid over-tightening, as this could damage the threads.

Step 10: Reconnect the MIG Gun to the Wire Feeder

Reconnect the MIG gun to the wire feeder, ensuring that all connections are properly secured. Reload the welding wire into the wire feeder and feed it through the drive rolls and into the new liner.

Step 11: Test the Wire Feed

Pull the trigger on the MIG gun to test the wire feed and ensure the wire moves smoothly through the new liner. If the wire feeds consistently and without resistance, your liner replacement is complete, and your MIG gun is ready for use.

Choosing the Right Liner for Your Lincoln MIG Welder Gun

Selecting the correct liner for your Lincoln MIG welder gun is essential for ensuring smooth wire feeding and preventing future issues. Different liners are designed for different types of welding wires, and the material of the liner can also affect performance. Heres a look at the most common types of liners and their respective advantages.

Steel Liners

Steel liners are the most commonly used liners for MIG welding, especially when working with solid steel wires. These liners are durable and can handle the wear and tear of continuous wire feeding in heavy-duty industrial settings. Steel liners offer long-lasting performance and are ideal for a wide range of welding applications.

Advantages

• High durability and long lifespan
• Ideal for use with solid steel wires
• Suitable for heavy-duty and high-volume welding

Disadvantages

• Higher friction compared to other liner materials
• Not suitable for soft wires like aluminum, which can kink or deform

Teflon Liners

Teflon liners are designed for softer wires, such as aluminum or copper, which require reduced friction to prevent kinking or deforming. Teflon liners provide a smooth surface for the wire to feed through, reducing the chances of wire jams or birdnesting.

Advantages

• Low friction, ideal for soft wires
• Prevents wire kinking or deformation
• Suitable for materials like aluminum and copper

Disadvantages

• Less durable than steel liners
• Not suitable for heavy-duty welding applications with higher temperatures

Nylon Liners

Nylon liners offer a balance between the durability of steel liners and the smooth feeding properties of Teflon liners. These liners are commonly used for stainless steel and softer alloys. Nylon liners provide reduced friction and are more durable than Teflon, making them suitable for a variety of welding applications.

Advantages

• Reduced friction for smoother wire feeding
• Suitable for a variety of wire types, including stainless steel
• More durable than Teflon liners

Disadvantages

• Less durable than steel liners in industrial settings
• May wear faster with continuous high-volume use

Preventive Maintenance for Your Lincoln MIG Gun Liner

Proper maintenance of your MIG gun liner can extend its lifespan and ensure smooth wire feeding for a longer period. Here are some tips for keeping your liner in good condition:

Keep the Wire Clean

Ensure that the welding wire is clean and free of contaminants like dirt, rust, or oil. Dirty wire can introduce debris into the liner, leading to clogs and increased friction, which affects wire feeding performance.

Clean the Liner Regularly

Even if the liner is functioning well, its a good idea to clean it periodically using compressed air. This helps remove dust, metal shavings, or other particles that may have accumulated inside the liner.

Inspect the Liner for Wear

Regularly inspect the liner for any signs of damage, such as kinks or bends, and replace it if necessary. Catching these issues early can prevent more significant problems, like birdnesting or burnback, from developing.

Ensure Proper Tension on the Wire Feed System

Make sure the drive rolls are correctly adjusted for the type and diameter of the wire you are using. Incorrect tension can put additional strain on the liner and lead to wire feeding issues.

Conclusion

Replacing the liner in your Lincoln MIG gun is an essential part of maintaining smooth wire feeding and consistent weld quality. By following the step-by-step instructions in this guide, you can replace your liner quickly and efficiently, ensuring your MIG gun operates at its best.

Choosing the right liner, whether its a durable steel liner for heavy-duty work, a low-friction Teflon liner for softer wires, or a versatile nylon liner can help prevent future wire feed problems and improve overall welding performance. Regular maintenance, such as cleaning the liner and inspecting it for damage, will also prolong its lifespan and reduce downtime in your welding operations.
