Oxy fuel welding, or oxy-acetylene welding, is over 100 years old. It uses oxygen and acetylene gas to form a hot flame. This technology was crucial before electric welding became common.
It was widely used at the start of the 20th century. Oxy fuel welding is perfect for welding, cutting, and heating metals. It’s valued for its portability and simple operation, making it useful in many fields like metal fabrication, construction, repair, and maintenance.
Knowing the right welding techniques and safety practices is key to doing it well. It’s essential for any oxy fuel welder to grasp these points for better results.
Image by mullikenet
What is Oxy Fuel Welding
Definition and Historical Background
Oxy fuel welding, often called oxyacetylene welding, uses a mix of oxygen and a fuel like acetylene. This mix creates a very hot flame, reaching about 3,200?C (5,792?F). It became popular at the start of the 20th century. This was before electric welding, and it was a key method for joining metals together.
Advantages of Oxy Fuel Welding
Oxy fuel welding is known for working well with many kinds of metals. Its easy to move around because it doesnt need electricity. Also, it is cost-effective, quick, and doesnt produce as much heat as other welding methods do. For these reasons, its a top choice for joining metals in building, fixing, and upkeep work in many industries.

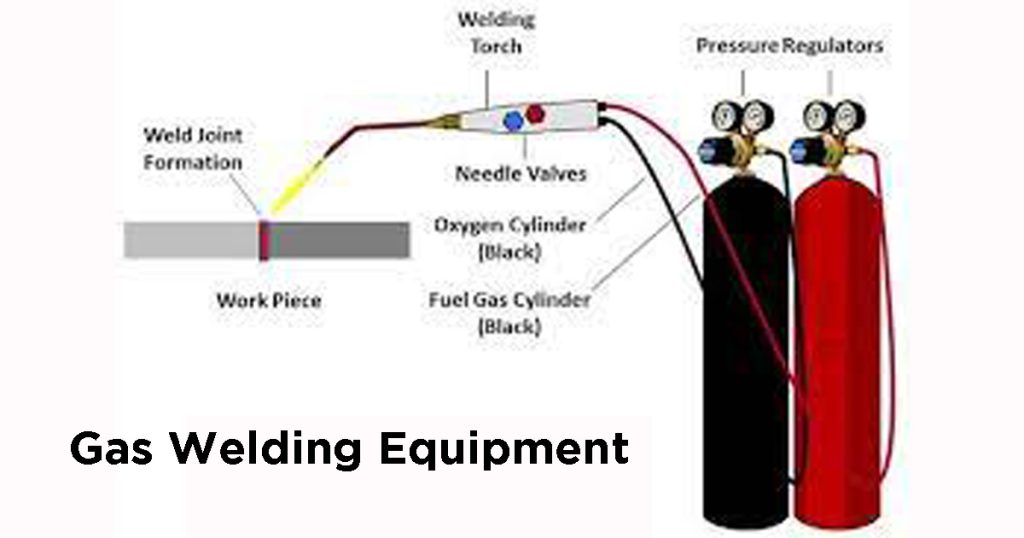

Essential Oxy Fuel Welding Equipment
Oxy fuel welding needs certain equipment to work well and safely. This includes oxygen and fuel gas cylinders, regulators, and more. The welding torch uses different tips for various tasks.
Oxygen and Fuel Gas Cylinders
Oxy fuel welding uses compressed oxygen and a fuel gas like acetylene. The hot flame made is for welding, cutting, and heating. Oxygen and fuel gas are in different colored cylinders. Proper storage, with a wall dividing the two, is key for safety.
Regulators and Hoses
Regulators adjust the gas flow and pressure from cylinders to torches. They can be single or double-stage for different uses. Hoses connecting everything must be checked for damage to avoid leaks.
Welding Torches and Tips
The welding torch mixes oxygen and fuel gas to create a flame for workpieces. It uses various tips for different jobs. Controlling the flame well is crucial for good welding.
| Equipment | Description |
|---|---|
| Oxygen and Fuel Gas Cylinders | Compressed gas containers for storing oxygen and fuel gas (typically acetylene) required for the oxy-acetylene welding process. Proper handling and storage of these cylinders is crucial for safety. |
| Regulators | Devices used to control the flow and pressure of the gases from the cylinders to the welding torch. Single-stage and double-stage regulators are available to meet different pressure regulation requirements. |
| Hoses | Flexible tubes that connect the regulators to the welding torch, transporting the oxygen and fuel gas to the torch. Hoses must be in good condition to prevent gas leaks. |
| Welding Torches and Tips | The main component that mixes the oxygen and fuel gas and delivers the resulting flame to the workpiece. Torches come in various sizes and can be equipped with different types of tips to adjust the flame size and shape for specific welding or cutting applications. |
Image by Automotive Experience?

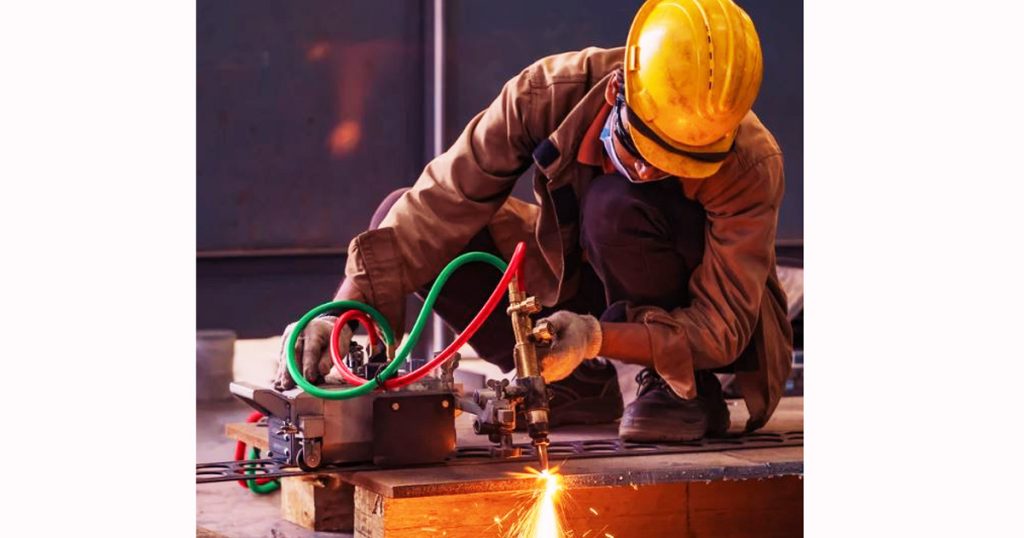

Safety Practices in Oxy Fuel Welding
Oxy fuel welding must be done very carefully. Safety is really important to avoid accidents and harm. Everyone should wear the correct personal protective equipment. They should also keep the gas cylinders safe, and make sure there’s good ventilation and fire protection.
Personal Protective Equipment
Welders need to wear a lot of safety gear to keep them safe. This includes welding gloves, a helmet or face shield, a leather apron, welding chaps, and leather boots. They also need welding goggles. This gear protects against burns and other injuries. When the noise is too loud, wear ear protection.
Anyone working around the area should also have safety glasses on.
Cylinder Handling and Storage
How you handle and store the oxygen and fuel gas cylinders matters a lot. They must be kept apart from each other with a wall in between. This wall should be over 5 feet tall. Oxygen and acetylene should not be mixed.
Acetylene use should not go over 15 psi. Always check the oxygen valves to prevent fires or explosions.
Fire Prevention and Ventilation
Oxy fuel welding can be a fire risk. So, keeping the place ventilated is really important. Ventilation helps avoid too little oxygen and too much carbon dioxide. When opening the oxygen cylinder, do it slowly. This helps push out any dust. It cuts the risk of the regulator burning out or even an explosion.
Using check valves and flashback arrestors on the welding torch adds even more safety.
Image by walmart
Oxy Fuel Welding Tips and Techniques
Flame Adjustment and Control
Getting the flame just right is key in oxy fuel welding. A torch or blowpipe is used, making a flame reaching 3,200?C. Welders adjust the gas to get three different flames: neutral, oxidizing, and carburizing. How they control the flame’s heat affects the welding’s success and the final weld’s quality.
Welding Positions and Techniques
Oxy fuel welding allows for different positions and techniques. A common method is to weld from left to right. Some use the rightward technique or can weld from any position to have more control, but these are harder. Picking the right position and technique is crucial for good welds.
Filler Metal Selection and Application
Choosing and using filler metal is very important in oxy fuel welding. For steel, the usual oxygen and acetylene mix is enough. But for other metals and for brazing, you need different gases like propane or hydrogen. Matching metal thickness with the nozzle and welding speed is crucial for using the correct filler metal.
Oxy Fuel Welding Applications
Metal Fabrication and Construction
Oxy fuel welding is key in the metal biz and construction field. Its hot flame from mixing oxygen and acetylene gas lets welders join metals like steel and aluminum. That’s why it’s vital for making metal stuff, building frames, and even machines.
Repair and Maintenance
Oxy fuel welding shines in fixing and keeping things in shape. With its high-heat flame, welders can repair metal parts and do quick fixes on the spot. It’s great for the car, product making, and building stuff industries to keep things running smoothly.
Oxy Fuel Cutting and Heating Processes
Oxy fuel equipment is not just for welding; it also cuts and heats metals precisely. It uses an oxyacetylene flame that can reach 3,200 degrees Celsius. This flame is strong enough to melt and cut metals like low carbon steel.
Cutting Techniques
Oxy fuel cutting needs the right mix of oxygen and fuel gas. This creates the perfect flame for cutting. It can be set to a neutral, oxidizing, or carburizing flame for different cutting effects.
This method is better than plasma cutting for some jobs. It can cut at steeper angles, up to 70 degrees. Oxy fuel cutting is also more economical, especially for metals under 20 mm thick.
Heating for Bending and Straightening
Heating metal with oxy fuel can help bend and straighten it. By heating steel to around 960?C, the torch makes it easier to shape. This is great for metal work where precise heating is key.
Using oxy fuel for heating speeds up tasks like bending and straightening. It makes for a more efficient metalworking process. Fabricators and metalworkers can do more types of projects by using oxy fuel techniques.
Image by lanewaymagazine
Troubleshooting and Maintenance
Keeping your oxy fuel welding gear in top shape is key. This ensures successful welds. By handling issues early and caring for your tools, you’ll stop problems before they start.
Common Welding Defects and Solutions
Oxy fuel welding can run into issues if not done right. We’ll look at some common ones, and how to fix them.
- Porosity: It’s when gas bubbles get trapped in the weld. Fix this by tweaking gas flow, cleaning the metal, and using the right welding method.
- Lack of Fusion: This is when the weld metal doesn’t fully bond with the base metal. Problems like this can come from bad joint prep or not enough heat. Make sure lighting up is good and the joints fit well to tackle the issue.
- Undercut: Too much heat or wrong flame movement causes this. Slow down welding, get the torch angle right, and add filler metal well to lower this issue.
- Slag Inclusions: Wrong cleaning or welding adds can trap slag in the weld. So, clean well and use the right technique to avoid these inclusions.
Equipment Maintenance and Care
Taking care of your oxy fuel welding equipment keeps you safe and your tools reliable. Regular checks, cleaning, and service stop gear from failing and make it last longer. Here’s what you need to do:
- Look over oxygen and acetylene cylinders often for any harm or leaks. Store and handle them right for safety.
- Keep regulators, hoses, and torch assemblies clean. This stops blockages, leaks, or other problems with gas flow and your welds.
- Check torch tips for wear and swap them out as needed. This keeps your flame right and your welds sharp.
- Store your welding equipment well when you’re not using it. This stops damage and makes sure it’s ready for the next oxy fuel welding task.
Handle welding defects and keep your equipment in good shape. This makes your oxy fuel welding safer and performs better. You’ll get great results every time you weld, no matter the problem or solution you’re working on.
Conclusion
Oxy fuel welding is a key process in the metalworking industry for more than a century. It offers many benefits to welders and fabricators. Looking at its basic principles, needed equipment, techniques, and safety tips is key. This helps workers use oxy fuel welding for many metal tasks efficiently and safely.
Oxy fuel welding is not just about joining metals. It’s also used for cutting and heating them. Mastering this technique brings new opportunities and boosts the ability of any metal shop. Oxy fuel welding stands out because it can be used with different materials. Its also portable and doesnt cost a lot, making it a go-to method in todays workshops.
The metalworking industry keeps changing, but oxy fuel welding’s uses remain important. Knowing the latest practices and safety advice is crucial for professionals. This helps them make the most of oxy fuel welding. They can achieve great results and bring new ideas to their fields with this respected technique.
