Passivation for Stainless Steel Welds: What It Is & Why

Many think stainless steel can’t rust, but that’s not true. Even after welding, stainless steel can corrode. To prevent this, welders use chemicals like nitric acid and hydrofluoric acid in “pickling paste”. Passivation is the term for this cleaning process. It helps by fixing the damaged oxide layer on the metal’s surface.

This process is very important. It makes the steel more resistant to corrosion. So, by being passivated, stainless steel lasts longer and performs better.

Image by thefabricator

What is Passivation for Stainless Steel Welds?

Stainless steel needs at least 10.5% chromium to be stainless. This chromium forms a protective layer, stopping rust. But welding can mess this up, leading to rust. Passivation renews this protective layer, keeping stainless steel rust-free.

Understanding Stainless Steel Corrosion

Without passivation, the air’s iron mixes with the steel. This starts rust that goes deep into the steel. If not prevented, this rust will shorten the life of stainless steel. It will also make it less effective.

Role of Chromium in Passivation

Chromium is key to stainless steel’s protection. It reacts with oxygen to create a shield. This invisible layer blocks rust from the steel beneath. This is why stainless steel fights off rust so well.

Consequences of Damaged Passive Layer

Welding breaks the protective layer. It pulls chromium away, making the steel open to rust. Without passivation, the steel will rust, pit, and weaken. This can make welded parts and steel less reliable over time.

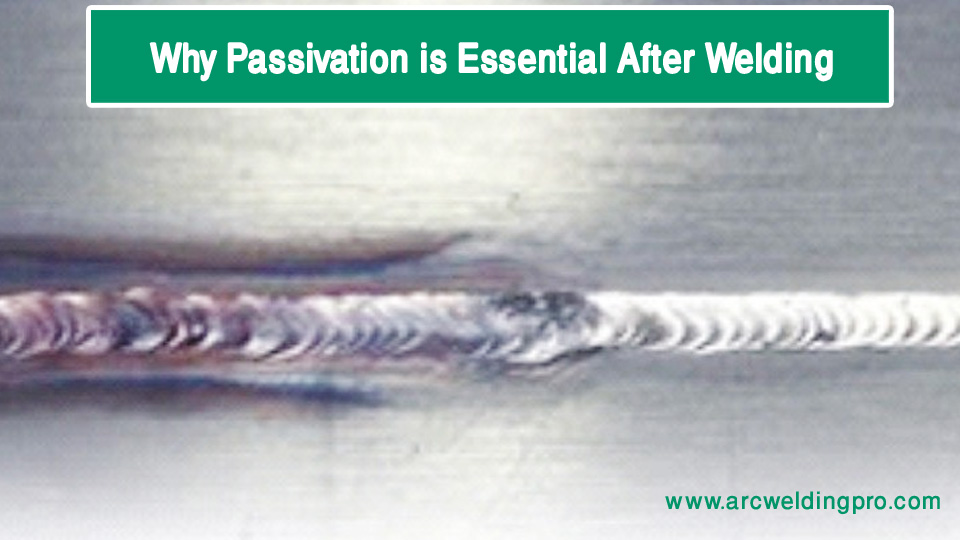

Why Passivation is Essential After Welding

When stainless steel is welded, its surface changes. This is due to the heat of welding. The heat affects the layer of chromium oxide on the surface, making it weaker. As a result, the steel can rust more easily.

Image by weld alfain eu

Impact of Welding on Stainless Steel Surface

During welding, the process of joining metal parts, some harmful elements are added. For example, tiny particles of free iron can appear on the surface. These can start corrosion, making the steel weaker. It’s very important to passivate welds. This means cleaning the welded area to remove these risky parts and to help the steel protect itself with a new chromium oxide layer.

Restoring Corrosion Resistance

After welding, passivation is key to keep stainless steel looking good and working well. It cleans the surface and boosts the steel’s power to resist rust. The new layer it forms keeps bad things like oxygen away from the metal underneath. So, passivation after welding makes the stainless steel last longer and do its job better.

Passivation Methods and Processes

The stainless steel industry uses many ways to make welds and surfaces safe. There are old school ways like using chemicals. But, now, some like to clean and protect with new electronic ways. These new ways are liked because they are fast and not as dangerous.

Traditional Chemical Treatments

Before, people would use acid to clean the metal. It got rid of stuff that might make the metal rust. This way works well, but its not so safe or good for the earth. People have to be very careful when they use these acids. And they must throw them away in a special way.

Electrochemical Cleaning and Passivation

Now, theres a new way thats better for everyone. It uses acids you can eat and electricity without making the air dirty. This way makes the metal look shiny and new. Its also cheaper. This way of cleaning is called electrochemical passivation.

The TIG Brush system by Ensitech is a great example of this. It uses acid you can eat and electricity. This tool makes the metal safe without any danger.

Validating Successful Passivation

Checking if the passivation process worked is key because the protective layer made by passivating stainless steel is not visible. ASTM International has made tests to see if passivation was done right on stainless steel.

Common Passivation Testing Methods

For checking passivation success, ASTM standards A380 and A967 tell us what to do. Here are some tests often used:

• Water Immersion Test: This involves putting stainless steel parts in water and checking the formed protective layer after 24 hours.
• Salt Spray Test: It tests how well stainless steel fights off rust. Samples face a salty solution at 95 degrees Fahrenheit.
• High-Humidity Test: Here, a high humidity and temperature are used to find any harmful surface substances that might stop the passivation process.
• Copper Sulfate Test: Its used to check if passivation is good, but not in food processing stainless steel because it uses toxic copper sulfate.
• Potassium Ferricyanide-Nitric Acid Test: This test is good for certain types of stainless steel, mainly the 200 and 300 series, but can give wrong results if used on other types.
• Open Circuit Potential Test: This test checks the chromium oxide layer’s quality directly by measuring a current through it.

The right test to use depends on the stainless steel type and its use. Picking and doing these tests carefully helps make sure stainless steel resists corrosion over the years.

Conclusion

Proper passivation is key to keeping stainless steel welds and parts working well for a long time. The helps bring back a protective layer. This layer fights off rust. It’s good for the material’s health and makes it last longer.

Old methods like pickling and using nitric acid work but they’re not the best. They can be unsafe and harm the environment. Luckily, we now have techniques like the TIG Brush. They are safer, quicker, and don’t hurt the planet. Plus, they do a better job.

Getting passivation right is vital for the health of stainless steel parts. Following the right steps and rules ensures they stay rust-free. This way, stainless steel pieces live up to what’s expected of them for a long, long time.
