What is porosity in welding  Types & How To Fix Welding Porosity

Welding is a crucial process in various industries, from construction to manufacturing. However, even experienced welders can encounter issues that affect the quality and integrity of their welds. One of the most common and frustrating problems is porosity.

Porosity in welding refers to the presence of small cavities or voids within the weld metal or on its surface. These defects can significantly compromise the strength and performance of the welded joint, making it essential for welders to understand, identify, and address porosity issues effectively.

We’ll explore the different types of welding porosity, their causes, and most importantly, how to prevent and fix these defects. Whether you’re a novice welder or a seasoned professional, this information will help you produce higher quality welds and improve your overall welding performance.

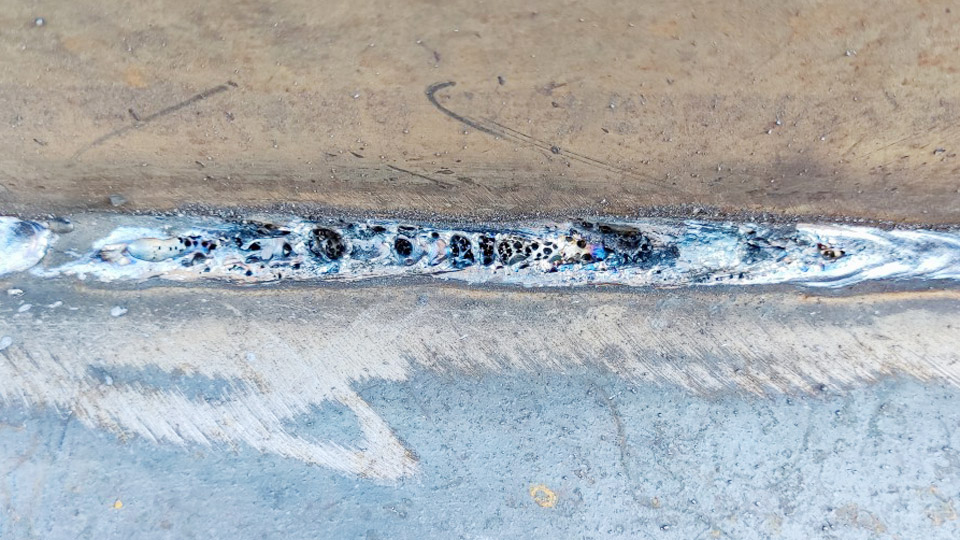

Image by reddit

What is porosity in welding

Porosity occurs when gases become trapped in the weld metal as it solidifies. These gases can come from various sources, including contaminants on the base metal, moisture in the welding environment, or issues with the welding process itself. The result is a weld that contains small, often spherical voids that can be visible on the surface or hidden within the weld itself.

Impact of Porosity on Weld Quality

Porosity can have several negative effects on a weld:

1. Reduced strength: The voids created by porosity can weaken the overall structure of the weld.
2. Decreased ductility: Porous welds may be more brittle and prone to cracking under stress.
3. Potential leakage: In applications where the weld needs to be airtight or watertight, porosity can lead to leaks.
4. Aesthetic issues: Surface porosity can make welds look unprofessional and may require rework.

Understanding the types and causes of porosity is the first step in preventing and addressing these issues.

Types of Welding Porosity

Porosity in welding can manifest in several forms, each with its own characteristics and potential causes. Recognizing these different types can help welders identify and address porosity issues more effectively.

Distributed Porosity

Distributed porosity is characterized by small, evenly dispersed pores throughout the weld. These pores are typically spherical and can vary in size. This type of porosity often results from:

• Contamination on the base metal or filler wire
• Inadequate shielding gas coverage
• Moisture in the welding environment

Distributed porosity can be particularly problematic because it affects the entire weld, potentially compromising its overall strength and integrity.

Surface Porosity

As the name suggests, surface porosity appears on the surface of the weld. These pores are visible to the naked eye and can range from small pinhole-sized defects to larger, more noticeable voids. Surface porosity often indicates:

• Contamination on the surface of the base metal
• Improper welding technique, such as incorrect travel speed or arc length
• Issues with shielding gas flow or coverage

While surface porosity may seem less severe than internal porosity, it can still significantly impact the weld’s performance and appearance.

Wormhole Porosity

Wormhole porosity is characterized by elongated, tubular voids that run parallel to the weld axis. These defects often resemble the tunnels created by worms, hence the name. Wormhole porosity typically results from:

• Excessive moisture in the welding environment or on the base metal
• Contamination from oils, greases, or other hydrocarbons
• Improper electrode coating in stick welding

Wormhole porosity can be particularly detrimental to weld strength, as these elongated voids create significant weak points in the weld structure.

Crater Porosity

Crater porosity occurs at the end of a weld bead, typically in the crater left when the arc is extinguished. This type of porosity is often caused by:

• Improper arc termination technique
• Rapid cooling of the weld pool
• Insufficient filler metal at the end of the weld

While crater porosity may seem localized, it can still compromise the overall integrity of the weld, especially in critical applications.

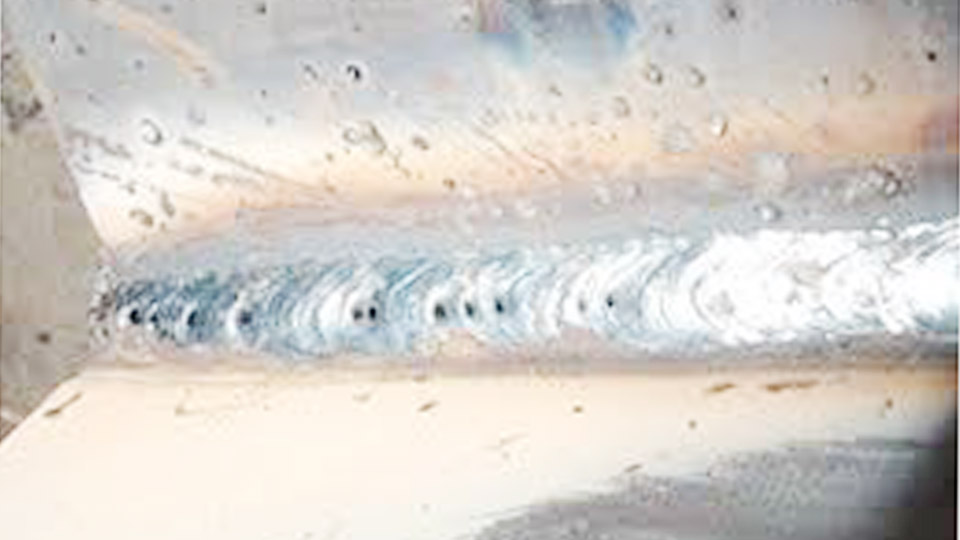

What causes porosity in a weld

Understanding the root causes of porosity is crucial for prevention and troubleshooting. Here are some of the most common factors that contribute to porosity in welding:

Contamination

Contaminants on the base metal or filler wire are one of the leading causes of porosity. These can include:

• Oil, grease, or other hydrocarbons
• Rust or mill scale
• Paint or coatings
• Dirt or dust

These contaminants can release gases when heated by the welding arc, which then become trapped in the solidifying weld metal.

Image by binzel-abicor

Moisture

Moisture is a significant contributor to porosity, particularly hydrogen porosity. Sources of moisture can include:

• High humidity in the welding environment
• Wet or damp base metals
• Improperly stored or handled filler metals
• Condensation on cold materials

When water vapor enters the weld pool, it can dissociate into hydrogen and oxygen, leading to porosity as the weld cools.

Inadequate Shielding Gas Coverage

In processes like MIG and TIG welding, proper shielding gas coverage is crucial to prevent atmospheric gases from contaminating the weld pool. Porosity can result from:

• Insufficient gas flow rate
• Drafts or wind disrupting the gas shield
• Leaks in the gas delivery system
• Incorrect nozzle-to-work distance

Improper Welding Technique

Even with clean materials and proper equipment, poor welding technique can lead to porosity. Common technique-related issues include:

• Incorrect travel speed
• Improper arc length
• Incorrect torch angle
• Erratic wire feed in MIG welding

Equipment Issues

Problems with welding equipment can also contribute to porosity:

• Worn or damaged gas nozzles
• Clogged or kinked gas lines
• Faulty regulators or flow meters
• Contaminated wire feed systems

How to Prevent Porosity in Welding

Prevention is always better than cure when it comes to welding porosity. Here are some key strategies to minimize the risk of porosity in your welds:

Proper Material Preparation

• Clean the base metal thoroughly, removing all contaminants such as oil, grease, rust, and paint.
• Use appropriate cleaning solvents or mechanical methods like grinding or wire brushing.
• Ensure the cleaning process doesn’t introduce new contaminants.

Control Moisture

• Store filler metals and electrodes in a dry environment.
• Preheat base metals if necessary to drive off moisture.
• Use dehumidifiers in high-humidity environments.
• Avoid welding on wet or damp materials.

Optimize Shielding Gas Usage

• Use the correct gas flow rate as recommended for your welding process and material.
• Protect the welding area from drafts using screens or curtains.
• Regularly check for leaks in the gas delivery system.
• Maintain the proper nozzle-to-work distance.

Improve Welding Technique

• Practice maintaining consistent travel speed and arc length.
• Use the correct torch angle for your welding position and joint type.
• Ensure proper wire stick-out in MIG welding.
• Practice proper arc starting and stopping techniques.

Maintain Equipment

• Regularly inspect and clean welding equipment.
• Replace worn nozzles, contact tips, and liners.
• Keep wire feed systems clean and properly adjusted.
• Calibrate gas flow meters and regulators periodically.

How to Fix Porosity in Welding

Despite best efforts at prevention, porosity can still occur. When it does, here are steps to address the issue:

Image by linkedin

Identify the Type and Extent of Porosity

• Visually inspect the weld for surface porosity.
• Use non-destructive testing methods like radiography or ultrasonic testing for internal porosity if necessary.
• Determine if the porosity exceeds acceptable limits for your application.

Remove the Porous Section

• For surface porosity, grind out the affected area until sound metal is reached.
• For more extensive porosity, you may need to completely remove the affected weld section.

Address the Root Cause

• Identify what caused the porosity based on its type and location.
• Take corrective action to address the cause before rewelding.

Reweld the Area

• Clean the area thoroughly after grinding.
• Apply proper welding technique to reweld the removed section.
• Ensure all welding parameters are correct for the application.

Inspect the Repair

• Visually inspect the repaired area.
• Perform any necessary non-destructive testing to ensure the porosity has been eliminated.

Conclusion

Porosity in welding is a common but preventable issue that can significantly impact weld quality and performance. By understanding the types of porosity, their causes, and implementing proper prevention techniques, welders can greatly reduce the occurrence of these defects. When porosity does occur, prompt identification and proper repair procedures can restore the integrity of the weld.

Producing high-quality, porosity-free welds requires a combination of knowledge, skill, and attention to detail. Continuous learning and practice are key to mastering the art and science of welding.

By applying the principles and techniques discussed in this guide, welders can improve their work quality, reduce rework, and enhance the overall reliability of their welded structures.
