Replacing the liner in your Miller M-15 MIG gun is essential for ensuring consistent wire feed, maintaining the quality of your welds, and extending the life of your MIG gun.
The liner in your MIG gun can become worn, clogged, or kinked, leading to wire feeding issues such as birdnesting, burnback, or erratic wire feed. These problems can drastically affect the quality of your welds and cause unnecessary downtime.
We will walk you through the step-by-step process of replacing the liner in your Miller M-15 MIG gun. We’ll also cover the importance of proper liner maintenance, signs that your liner needs replacing, and provide a comparison of different liner types to help you choose the best option for your welding needs.

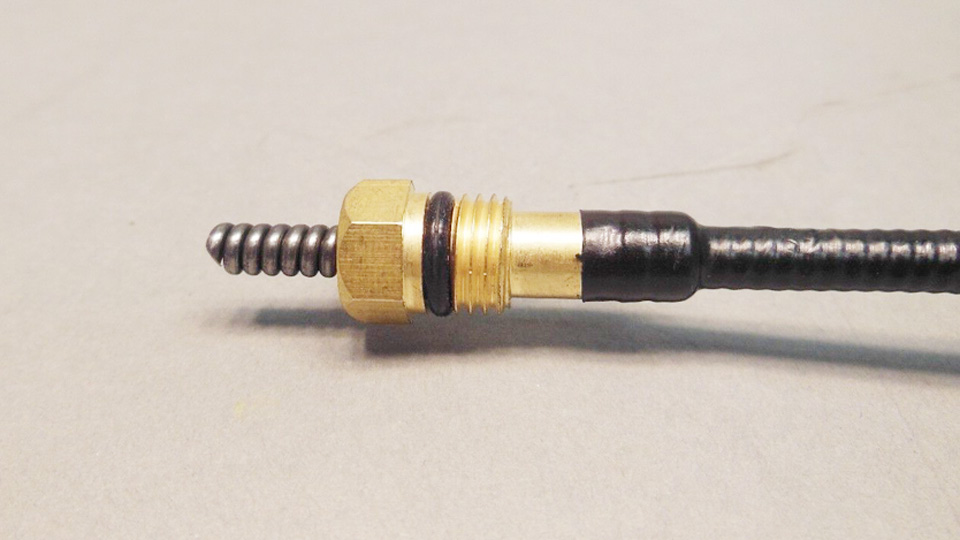

Image by opcaofretur
What is a MIG Gun Liner and Why is it Important?
A MIG gun liner is a flexible tube that runs through the length of the MIG gun’s cable. It acts as a guide for the welding wire, ensuring that the wire feeds smoothly from the wire feeder through the gun and out of the contact tip. The liner plays a critical role in the overall performance of the MIG gun, and any issues with the liner can lead to wire feeding problems.
A damaged or worn-out liner can create friction, which interferes with the smooth movement of the wire. This can cause problems such as birdnesting (where the wire tangles inside the wire feeder), burnback (where the wire melts into the contact tip), and erratic arc performance.
Why Replacing the Liner is Essential
Replacing the liner in your Miller M-15 MIG gun is a vital part of MIG gun maintenance. It ensures that the wire feeds smoothly and consistently, which is crucial for achieving high-quality welds. Here are a few reasons why replacing the liner is important:
Prevents Wire Feeding Issues
When the liner becomes dirty or damaged, it can create excessive friction along the path of the wire. This can cause the wire to feed erratically or even get stuck, resulting in poor arc stability and inconsistent weld quality.
Enhances Weld Quality
A properly functioning liner ensures that the wire feeds smoothly, which is essential for maintaining a steady arc. This helps produce cleaner, more consistent welds with less spatter and fewer defects.
Reduces Downtime
Wire feeding problems can cause interruptions in your welding process, leading to downtime while you troubleshoot and fix the issue. Replacing the liner when necessary helps prevent these interruptions, allowing you to work more efficiently.
Extends the Life of Your MIG Gun
A worn-out liner can cause excessive wear on other parts of the MIG gun, such as the contact tip and drive rolls. By replacing the liner when it shows signs of wear, you can protect your MIG gun from further damage and extend its lifespan.
Signs That You Need to Replace the Liner in Your Miller M-15 MIG Gun
Its important to recognize when your liner needs replacing to avoid wire feeding problems. Here are some common signs that your liner may need to be replaced:
Erratic Wire Feeding
If the wire feeds inconsistently or jerks during welding, the liner may be worn, dirty, or kinked. Inconsistent wire feeding can lead to an unstable arc and poor weld quality.
Increased Friction When Feeding Wire
If you notice that feeding the wire through the gun feels more difficult than usual, the liner could be clogged with debris or damaged. Increased friction can cause the wire to drag, leading to feeding issues and burnback.
Frequent Birdnesting
Birdnesting occurs when the wire tangles inside the wire feeder due to improper tension or obstruction. A damaged liner can cause birdnesting by preventing the wire from feeding smoothly.
Burnback Issues
Burnback happens when the wire melts back into the contact tip, often due to slow or inconsistent wire feeding. If youre experiencing frequent burnbacks, it could be a sign that your liner needs replacing.
Visible Damage or Wear
Regularly inspect the liner for visible signs of wear, such as kinks, bends, or cracks. If the liner appears damaged, replacing it is essential to maintain proper wire feeding.
How to Replace the Liner in a Miller M-15 MIG Gun: Step-by-Step Guide
Replacing the liner in your Miller M-15 MIG gun is a straightforward process that can be completed in just a few steps. Here’s how to do it:
Tools and Materials Needed:
- Replacement liner (ensure its the correct size for your MIG gun and wire diameter)
- Wrenches or pliers
- Wire cutters (if the liner needs to be trimmed)
- Compressed air or a clean cloth (for cleaning out the gun)
Step 1: Power Off the Welder
Before you begin, turn off the welder and disconnect it from the power source to ensure your safety. You dont want any accidental wire feeding or electrical issues while replacing the liner.
Step 2: Remove the Welding Wire
Next, remove the welding wire from the wire feeder. You can do this by cutting the wire near the drive rolls and pulling the remaining wire out of the gun. This step ensures that no wire is fed through the liner while you’re replacing it.
Step 3: Remove the Contact Tip
Unscrew and remove the contact tip from the MIG gun. The contact tip is where the welding wire exits the gun, and removing it will give you access to the liner.
Step 4: Disconnect the MIG Gun
Disconnect the MIG gun from the wire feeder and welder. This may involve loosening a connection at the wire feeder and carefully detaching the gun. Be sure to note how everything is connected, as you will need to reattach it later.
Step 5: Remove the Old Liner
Once the gun is disconnected, locate the end of the liner inside the gun handle or at the cable connector. Gently pull the old liner out of the MIG gun, making sure not to damage any other components during the process.
Step 6: Clean the Gun and Cable
Before installing the new liner, its a good idea to clean the inside of the gun and cable. Use compressed air or a clean cloth to remove any dust, dirt, or debris that may have accumulated inside the gun. A clean interior ensures that the new liner will function smoothly.
Step 7: Install the New Liner
Insert the new liner into the MIG gun, carefully feeding it through the cable. Push the liner until it reaches the gun’s handle and extends slightly beyond the contact tip holder. Ensure that the liner is fully seated inside the gun, as an improperly seated liner can cause feeding issues.
Step 8: Trim the Liner (If Necessary)
If the liner extends too far beyond the contact tip holder, use wire cutters to trim it to the appropriate length. The liner should sit just inside the contact tip holder, allowing for smooth wire feeding without obstruction.
Step 9: Reattach the Contact Tip and Gun
Once the liner is installed and trimmed, reattach the contact tip to the gun. Make sure the contact tip is securely fastened but avoid over-tightening, which could damage the threads. Then, reconnect the MIG gun to the wire feeder and welder, ensuring all connections are properly secured.
Step 10: Feed the Wire and Test
After reassembling the gun, feed the welding wire back through the drive rolls and into the new liner. Slowly pull the gun trigger to test the wire feeding, making sure the wire moves smoothly without resistance. If the wire feeds consistently, your liner replacement is complete.
Choosing the Right Liner for Your Miller M-15 MIG Gun
Selecting the right liner for your MIG gun is crucial for ensuring smooth wire feeding and preventing future problems. Liners are available in various materials, diameters, and lengths, and each type is suited for different welding applications.
Steel Liners
Steel liners are the most common type of MIG gun liners and are typically used with solid steel wires. They are durable and provide long-lasting performance, making them ideal for heavy-duty industrial applications.
Advantages
- Durable and long-lasting
- Suitable for solid steel wires
- Handles high-temperature applications
Disadvantages
- Higher friction compared to other materials
- Not suitable for soft wires like aluminum
Teflon Liners
Teflon liners are designed for softer wires, such as aluminum or copper, which can kink or become damaged when used with a steel liner. Teflon reduces friction, allowing for smoother wire feeding with these materials.
Advantages
- Low friction
- Ideal for soft wires like aluminum
- Reduces the risk of wire damage
Disadvantages
- Less durable than steel liners
- Not suited for heavy-duty applications
Nylon Liners
Nylon liners offer a balance between the durability of steel and the smooth feeding of Teflon. These liners are commonly used for stainless steel and other softer alloys, providing smooth wire feed without excessive wear.
Advantages
- Smooth wire feeding
- Suitable for stainless steel and softer wires
- More durable than Teflon
Disadvantages
- Less durable than steel liners
- May not perform as well in extreme conditions
Steel vs Teflon vs Nylon Liners
To help you choose the right liner for your Miller M-15 MIG gun, heres a comparison table of the three most common liner types:
| Feature | Steel Liner | Teflon Liner | Nylon Liner |
|---|
Preventative Maintenance Tips for Your Miller M-15 MIG Gun Liner
To keep your MIG gun and liner in optimal condition, regular maintenance is essential. Here are some tips to prolong the life of your liner and prevent wire feeding issues:
Clean the Gun Regularly: Use compressed air to blow out dust, debris, and metal shavings from inside the gun. This helps prevent clogs and keeps the liner functioning smoothly.
Inspect the Liner Frequently: Regularly inspect the liner for signs of wear, such as kinks, bends, or cracks. Replacing the liner as soon as you notice these issues will prevent feeding problems from developing.
Keep the Wire Clean: Ensure the welding wire is free of dirt, rust, or contaminants before feeding it into the gun. Dirty wire can clog the liner and lead to feeding problems.
Adjust Wire Tension Properly: Make sure the tension on the drive rolls is properly set to avoid wire feeding problems like birdnesting. Too much or too little tension can cause issues with the liner.
Conclusion
Replacing the liner in your Miller M-15 MIG gun is a simple yet essential task that can significantly improve wire feeding performance and weld quality. By following the step-by-step instructions in this guide, you can replace your liner efficiently and ensure that your MIG gun continues to operate smoothly.
Choosing the right liner for your welding application whether its steel, Teflon, or nylon can also help prevent future wire feeding issues and extend the life of your MIG gun.
Regular maintenance and timely liner replacements will keep your welding equipment in top condition, allowing you to achieve consistent, high-quality welds with minimal downtime.
