How to Stick Weld for Beginners?

Are you a beginner looking to dive into the world of stick welding? Stick welding, also known as shielded metal arc welding (SMAW), is a popular welding technique that offers versatility and ease of use. Whether you’re interested in DIY projects or pursuing a career in welding, mastering the basics of stick welding is a valuable skill to have in your arsenal.

In this guide, we’ll walk you through the essential steps of stick welding and provide you with valuable tips and tricks to help you get started. From understanding the equipment and materials needed to mastering the proper technique, we’ll cover it all. You’ll learn how to set up your welding machine, strike an arc, maintain a steady bead, and create strong and durable welds.

Photo by forestry

Stick welding might seem intimidating at first, but with practice and patience, you’ll quickly gain confidence and proficiency. So grab your welding helmet, put on your safety gear, and let’s dive into the exciting world of stick welding together. Get ready to unleash your creativity and bring your metalworking projects to life!

What is Stick Welding?

Stick welding, also known as shielded metal arc welding (SMAW), is a welding process that uses an electric current to create an arc between a flux-coated electrode and the workpiece. The flux coating on the electrode melts during welding and forms a protective shield, preventing contamination of the weld and creating a slag that can be easily removed.

Stick welding is one of the oldest and most versatile welding processes, suitable for welding various types of metals, including steel, stainless steel, cast iron, and more. It is commonly used in construction, fabrication, maintenance, and repair work. Stick welding offers excellent penetration, making it ideal for welding thick materials and outdoor applications.

While stick welding may not be as precise and clean as other welding techniques, such as TIG or MIG welding, it offers several advantages that make it a popular choice for beginners and professionals alike.

Advantages of Stick Welding

Portability

Stick welding machines are compact and portable, allowing you to weld in various locations, including remote areas without access to electricity.

Versatility

Stick welding can be used to weld a wide range of metals and thicknesses, making it suitable for various applications.

Cost-Effective

Stick welding equipment is relatively affordable compared to other welding processes, making it a cost-effective option for beginners.

Outdoor Use

Stick welding performs well in outdoor environments, making it ideal for construction and repair projects.

Disadvantages of Stick Welding

Slower Welding Speed

Stick welding is generally slower compared to other welding processes, which can be a disadvantage when working on large projects with tight deadlines.

More Skill Required

Stick welding requires more skill and practice to achieve high-quality welds compared to other processes.

Limited Aesthetics

Stick welding may produce rougher and less aesthetically pleasing welds compared to processes like TIG welding.

Despite its limitations, stick welding remains a valuable skill for beginners to learn due to its versatility and accessibility.

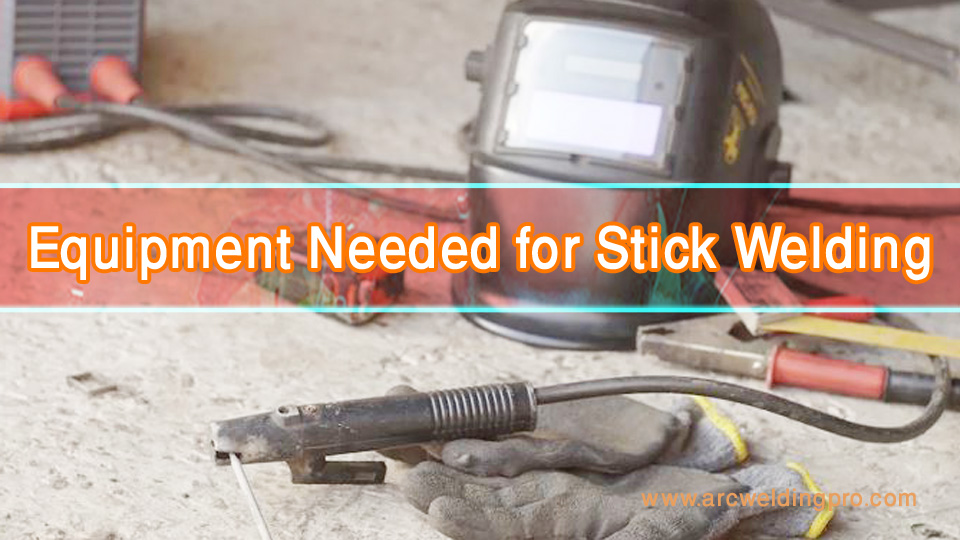

Equipment Needed for Stick Welding

Before you can start stick welding, it’s essential to understand the equipment and materials you’ll need. Here’s a breakdown of the key components:

Welding Machine

The welding machine, also known as a power source, provides the electric current necessary for stick welding. It converts AC or DC power into the appropriate welding current.

Electrodes

Stick welding uses consumable electrodes, which are coated with a flux material. The flux coating melts during welding, creating a protective shield and producing a slag that covers the weld bead.

Electrode Holder

The electrode holder, also known as a stinger, is a device that holds the electrode and allows you to strike an arc. It also conducts the electric current from the welding machine to the electrode.

Ground Clamp

The ground clamp is connected to the workpiece to complete the electrical circuit. It ensures proper grounding and safety during welding.

Personal Protective Equipment (PPE)

Safety should be a top priority when stick welding. Essential PPE includes a welding helmet with a darkened lens, welding gloves, flame-resistant clothing, safety glasses, and steel-toed boots.

Image by AdobeStock

Setting up your stick welding workspace

Ventilation

Stick welding produces fumes and smoke that can be harmful if inhaled. Ensure you have proper ventilation in your workspace, preferably in an open area or a well-ventilated welding booth.

Work Surface

It’s crucial to have a clean and properly prepared work surface. Remove any rust, paint, or other contaminants that could affect the quality of the weld.

Positioning

Position your workpiece in a way that allows for comfortable and safe welding. Consider using clamps or fixtures to hold the workpiece securely in place.

Basic Stick Welding Techniques for Beginners

Now that you have your equipment set up and your workspace prepared, it’s time to learn the basic stick welding techniques. Mastering these techniques will lay the foundation for creating strong and durable welds.

Striking an Arc

To start the welding process, you need to strike an arc between the electrode and the workpiece. Hold the electrode at a slight angle and make contact with the workpiece, then quickly lift it about 1/8 inch to create an arc. Practice striking the arc until you can consistently create a stable and controlled arc.

Maintaining a Steady Bead

Once the arc is established, you’ll need to maintain a steady bead. This involves moving the electrode along the joint at a steady pace. Aim for a consistent travel speed and maintain a consistent arc length.

Electrode Angle and Position

The angle and position of the electrode can significantly affect the quality of the weld. For most applications, a slight drag technique is used, where the electrode is tilted slightly in the direction of travel. Experiment with different angles and positions to find what works best for the specific joint and material.

Welding Techniques

Stick welding offers various techniques, including the weave technique, circle technique, and stringer technique. Each technique has its advantages and is suitable for different applications. Practice each technique to develop your skills and determine which one works best for you.

Stick welding requires practice and patience to master. Don’t be discouraged if your first welds aren’t perfect. With time and experience, you’ll improve your technique and produce high-quality welds.

Some Mistakes to Avoid While Welding

Stick welding can be challenging, especially for beginners. Here are some common mistakes to avoid to ensure better welding results:

Incorrect Electrode Selection

Different electrodes are designed for specific applications and materials. Using the wrong type of electrode can lead to weak welds and poor penetration. Always choose the appropriate electrode for the job.

Poor Angle and Positioning

Incorrect electrode angle and positioning can result in improper penetration and weak welds. Practice maintaining the correct angle and electrode position to achieve optimal results.

Inconsistent Travel Speed

Inconsistent travel speed can lead to uneven and weak welds. Aim for a steady and consistent travel speed to ensure a uniform bead.

Improper Arc Length

The arc length, or the distance between the electrode and the workpiece, plays a crucial role in stick welding. Too long of an arc can cause the electrode to stick, while too short of an arc can result in poor penetration. Find the optimal arc length for each welding application.

Insufficient Cleaning

Properly cleaning the workpiece before welding is essential to achieve strong welds. Remove any dirt, grease, or rust that could interfere with the welding process.

By avoiding these common mistakes and focusing on technique, you’ll be well on your way to becoming a proficient stick welder.

Troubleshooting Common Stick Welding Issues

Stick welding is not without its challenges. Here are some common issues you may encounter during stick welding and how to troubleshoot them:

Porosity

Porosity refers to small holes or voids in the weld bead. It is often caused by contamination, improper shielding, or excessive moisture in the electrode coating. Ensure proper electrode storage and handling, and follow proper welding techniques to prevent porosity.

Lack of Penetration

Insufficient penetration can weaken the weld joint. It can be caused by factors such as incorrect current settings, improper electrode angle, or too fast of a travel speed. Adjust the welding parameters and technique to achieve the desired penetration.

Cracking

Weld cracking can occur due to various factors, including rapid cooling, excessive heat input, or improper joint preparation. Ensure proper preheating, control the heat input, and follow correct joint preparation procedures to minimize the risk of cracking.

Slag Inclusion

Slag inclusion happens when the slag from the electrode is trapped in the weld bead. It can weaken the weld and cause defects. Maintain proper electrode manipulation and slag removal techniques to avoid slag inclusion.

By understanding and troubleshooting these common stick welding issues, you’ll be able to overcome challenges and produce high-quality welds.

Stick Welding Projects for Beginners

Now that you have a good grasp of the basics of stick welding, it’s time to put your skills to the test with some beginner-friendly projects. Here are a few ideas to get you started:

Welding a Steel Table Frame

Build a simple table frame using steel square tubing. Practice welding the joints and ensuring squareness and alignment.

Creating Metal Art

Let your creativity flow by creating metal art pieces. Start with simple designs and gradually increase the complexity as you gain more confidence in your welding skills.

Repairing Metal Objects

Stick welding is an excellent technique for repairing metal objects, such as garden tools, metal furniture, or gates. Practice your welding skills while giving new life to old or broken items.

Fabricating a BBQ Grill

Build your own custom BBQ grill using steel plates and rods. This project allows you to practice welding different joint types and create a functional and durable grill.

Remember to start with small projects and gradually advance to more complex ones as you gain experience and confidence in your stick welding abilities.

Conclusion

Stick welding, also known as shielded metal arc welding (SMAW), is a versatile and accessible welding technique for beginners. By understanding the equipment and materials needed, practicing the basic techniques, avoiding common mistakes, troubleshooting issues, and exploring beginner-friendly projects, you’ll be well on your way to becoming a proficient stick welder.

Stick welding may seem challenging at first, but with practice, patience, and a commitment to safety, you’ll quickly gain confidence and proficiency. So don’t hesitate to dive into the exciting world of stick welding. Grab your welding helmet, put on your safety gear, and unleash your creativity as you bring your metalworking projects to life! Happy welding!
