Stick Welding Basics for Beginners?

Stick welding basics for beginners involve understanding the welding process and equipment needed. In this guide, we’ll cover everything you need to know to get started with stick welding.

Stick welding, also known as Shielded Metal Arc Welding (SMAW), is a welding process that uses a consumable electrode coated in flux to create an electric arc between the electrode and the metal being welded. This arc melts the metal, creating a weld pool that solidifies to join the two pieces of metal together.

Stick welding is a versatile and affordable welding process that can be used on a wide variety of metals and in a range of industries, including construction, automotive, and manufacturing. We’ll cover the basics of stick welding, including the equipment you’ll need, safety considerations, and tips for getting started.

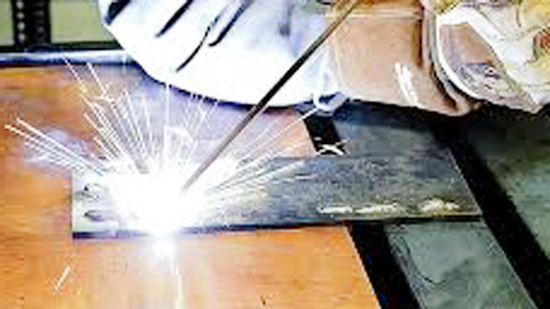

Photo by thefabricator

What is Stick Welding

Stick welding, also known as shielded metal arc welding (SMAW), is a popular welding technique that has been widely used for decades. It involves the use of a consumable electrode coated in flux, which melts and forms a protective shield as it burns. This process creates a strong bond between the metal pieces being welded.

Basics Of Stick Welding

Stick welding is a versatile method that can be used to weld various types of metals, including steel, cast iron, and stainless steel. It is commonly used in industries such as construction, fabrication, and maintenance, as well as for DIY projects.

Here are some key aspects to understand about stick welding:

Equipment: Stick welding requires a welding machine, welding cables, an electrode holder, and a ground clamp. It is essential to have the right equipment and ensure they are in good working condition before starting.

Electrode selection: Different types of electrodes are available, each designed for specific applications and materials. It is important to choose the right electrode for the metal being welded to achieve optimal results.

Preparation: Before beginning the welding process, the metal surfaces must be clean and free from rust, paint, and other contaminants. Proper preparation ensures a strong and clean weld.

Technique: Stick welding requires a steady hand and precise movement. The electrode should be held at the correct angle and distance from the workpiece. The welding speed, current, and voltage must also be controlled for a successful weld.

Safety: As with any welding process, safety precautions are crucial. This includes wearing protective clothing, such as a welding helmet, gloves, and a welding jacket. Adequate ventilation and eye protection are also essential.

Why It’s Popular Among Beginners

Stick welding is highly regarded among beginners for several reasons:

Cost-effective: Stick welding equipment is generally more affordable compared to other welding methods, making it accessible to beginners on a budget.

Portability: Stick welding machines are compact and easy to transport, allowing beginners to work on welding projects in various locations.

Versatility: Stick welding can be used to weld a wide range of metals and is suitable for both thick and thin materials.

Simple setup: Setting up a stick welding machine is relatively straightforward, making it ideal for beginners who are learning the basics of welding.

Learning curve: While stick welding requires practice to master, beginners can quickly grasp the fundamentals and start producing satisfactory welds with proper guidance and practice.

Stick welding offers beginners an opportunity to develop their welding skills and gain confidence in their abilities. With dedication and practice, beginners can achieve quality welds and expand their welding knowledge.

Essential Equipment For Stick Welding

In stick welding, having the right equipment is crucial for successful welds. Let’s explore the key components that are essential for beginners to get started:

Choosing The Right Welding Machine

When selecting a welding machine for stick welding, consider factors like amperage range, duty cycle, and portability.

Understanding Electrodes

Electrodes are a critical part of stick welding. Different electrodes have varying properties, so choose the right one based on the type of metal you are welding.

Safety Measures For Welders

Welding can be a dangerous task if proper safety measures are not followed. Welding involves high temperatures and bright light, which can cause severe burns and eye damage. Therefore, it is crucial to take necessary precautions to ensure a safe work environment. In this section, we will discuss the safety measures that every welder should follow.

Personal Protective Gear

Personal protective gear is essential to protect the welder from harmful radiation, sparks, and debris. Here are some personal protective gear that every welder must wear:

• Welding helmet with a shade lens to protect the eyes and face from UV and infrared rays.
• Welding gloves made of leather to protect the hands from heat and sparks.
• Welding jacket made of flame-resistant material to protect the upper body from heat and sparks.
• Welding boots made of leather with steel toes to protect the feet from heavy objects and sparks.

Creating A Safe Workspace

Creating a safe workspace is crucial for a welder’s safety. Here are some tips to create a safe workspace:

• Ensure adequate ventilation to remove fumes and gases from the workspace.
• Clear the workspace of any flammable material, including paper, cardboard, and gasoline.
• Use fire-resistant barriers to prevent sparks from igniting nearby combustibles.
• Ensure that the workspace is well-lit to prevent tripping or falling.
• Keep a fire extinguisher nearby in case of an emergency.

By following these safety measures, a welder can reduce the risk of injuries and create a safe work environment. It is essential to remember that welding can be dangerous, and safety should be a top priority for every welder.

Preparing To Weld

New to stick welding? Here’s what you need to know to prepare for your first weld. From selecting the right equipment to setting up your workspace, these basics will help beginners get started with confidence.

Metal Preparation Tips

Before diving into stick welding, it is crucial to properly prepare the metal surface to ensure a strong and durable weld. Here are some metal preparation tips to help beginners get started:

1. Clean the metal surface: Begin by removing any dirt, rust, paint, or other contaminants from the metal. Use a wire brush, grinder, or sandpaper to clean the surface thoroughly. This step is essential as welding on a dirty surface can lead to weak welds and poor adhesion.

2. Remove moisture: Moisture can negatively affect the quality of a weld, so it’s important to make sure the metal is dry before welding. If the metal has been exposed to moisture, use a clean cloth or a heat gun to remove any remaining moisture.

3. Bevel the edges (if necessary): In some cases, it may be necessary to bevel the edges of the metal pieces to create a V-shaped groove. This allows for better penetration and a stronger weld. Use a grinder or a file to create the desired bevel.

4. Clamp the workpieces securely: To ensure stability and accuracy during the welding process, it’s essential to securely clamp the workpieces together. This helps maintain proper alignment and prevents movement that could affect the quality of the weld.

Setting Up The Welding Machine

Once the metal is properly prepared, the next step is to set up the welding machine. Here’s a step-by-step guide for beginners:

1. Choose the right electrode: Selecting the appropriate electrode is crucial for achieving the desired weld. Different electrodes have different properties and are suitable for various types of metals. Refer to the electrode manufacturer’s recommendations or seek guidance from an experienced welder.

2. Set the amperage: Adjust the amperage on the welding machine based on the thickness of the metal being welded. As a general rule, thinner materials require lower amperage, while thicker materials require higher amperage. Consult the welding machine’s manual for specific amperage recommendations.

3. Check the polarity: Stick welding requires the correct polarity to ensure proper weld penetration and quality. Check the welding machine’s manual to determine the appropriate polarity for the chosen electrode and adjust accordingly.

4. Connect the electrode holder and ground clamp: Attach the electrode holder to the positive terminal and the ground clamp to the negative terminal of the welding machine. Ensure the connections are tight to maintain good electrical conductivity.

5. Test the machine settings: Before starting your weld, it’s a good practice to test the machine settings on a scrap piece of metal. This allows you to fine-tune the amperage and make any necessary adjustments to achieve the desired weld quality.

By following these metal preparation tips and setting up the welding machine correctly, beginners can lay the foundation for successful stick welding. To prioritize safety at all times, wearing appropriate protective gear and working in a well-ventilated area. Stick welding can be a rewarding skill to learn, and with practice, you can master the art of creating strong and durable welds.

Executing The Weld

When it comes to stick welding, executing the weld is a critical process that requires precision and attention to detail. Whether you’re a beginner or an experienced welder, mastering the techniques involved in executing a successful weld is essential for producing high-quality results. In this section, we’ll explore the key aspects of executing the weld, including striking the arc and maintaining arc stability.

Striking The Arc

Striking the arc is the initial step in the stick welding process. It involves creating an electrical arc between the welding electrode and the workpiece. To achieve this, the electrode must be brought into contact with the workpiece and then quickly withdrawn to create the spark. This action requires a steady hand and a smooth motion to ensure a clean and precise arc is established.

Maintaining Arc Stability

Maintaining arc stability is crucial for producing consistent and high-quality welds. Once the arc is established, it’s important to maintain a stable distance between the electrode and the workpiece. This distance, known as the arc length, directly impacts the quality of the weld. By carefully controlling the arc length, welders can achieve optimal penetration and fusion, resulting in strong, durable welds.

Troubleshooting Common Problems

Stick welding, while a useful skill, can present challenges for beginners. Knowing how to troubleshoot common issues is essential for smooth welding experiences.

Dealing With Electrode Sticking

Electrode sticking can occur due to improper angle or too long of an arc. Ensure a proper angle and maintain a short arc length for smoother welding.

Addressing Poor Weld Quality

Poor weld quality can result from incorrect amperage settings or dirty work surfaces. Adjust amperage as needed and always clean the work area before welding.

Practice Projects For Beginners

Practice projects are essential for beginners to gain hands-on experience and build confidence in stick welding. By starting with simple projects and gradually advancing to more complex tasks, beginners can develop their skills and techniques. These projects not only provide practical application but also help in understanding the fundamentals of stick welding.

Simple Projects To Start With

For novice welders, starting with simple projects is the best way to get accustomed to the basics of stick welding. Welding a basic butt joint is an ideal starting point as it allows beginners to practice maintaining a consistent arc length and achieving proper penetration. Another simple project is welding a fillet joint, which provides hands-on experience in creating strong and visually appealing welds.

Graduating To More Complex Tasks

As beginners gain confidence and proficiency in stick welding, they can progress to more complex tasks. Fabricating a simple metal table can be a great intermediate project, involving the welding of various joints and components. Repairing a metal gate or fence provides an opportunity to work with thicker materials and different welding positions, further enhancing skills and knowledge.

Advancing Your Stick Welding Skills

Once you have mastered the basics of stick welding, it’s time to take your skills to the next level. Learning advanced techniques and joining welding communities can significantly enhance your proficiency in stick welding.

Learning Advanced Techniques

As you progress in your stick welding journey, it’s essential to expand your skill set by learning advanced techniques. This includes mastering the art of vertical and overhead welding, as well as honing your ability to weld different types of joints. Familiarizing yourself with specialized electrodes and understanding how to manipulate the welding arc will further elevate your expertise.

Joining Welding Communities

Engaging with fellow welders in online forums, social media groups, or local welding clubs can provide invaluable support and knowledge sharing. By connecting with experienced welders, you can gain insights into advanced stick welding methods, troubleshoot challenges, and stay updated on the latest industry developments. Networking with like-minded individuals will not only enhance your skills but also foster a sense of community within the welding fraternity.

Conclusion

Mastering stick welding basics is crucial for beginners. Remember safety precautions, practice consistently, and seek guidance when needed. With dedication and patience, you can improve your skills over time. Embrace the learning process and enjoy the journey of becoming a proficient stick welder.
