When it comes to tig welding, gas flow rate plays a crucial role in achieving optimal welding results. This article dives deep into the importance of gas flow rate in tig welding and provides valuable insights on how to set it correctly.
Importance of gas flow rate in TIG welding
Proper gas flow rate ensures a shielded welding area, protecting the weld from atmospheric contaminants. Too low of a flow rate can lead to inadequate shielding, resulting in poor weld quality and potential defects. On the other hand, an excessively high flow rate can cause turbulence and disrupt the shielding, leading to inconsistent and porous welds.
Finding the right balance can be tricky, but our expert tips and techniques will guide you through the process. We’ll discuss the factors that influence gas flow rate, such as welding material, torch size, and joint configuration, and provide practical recommendations to achieve the best results.
Shielding gas in TIG welding
In TIG welding, shielding gas is used to protect the weld pool and the tungsten electrode from atmospheric contamination. It creates an inert environment that prevents oxidation and ensures a clean and strong weld. The gas flows through the torch and forms a shield around the weld area, preventing the entry of oxygen, nitrogen, and other contaminants.
Argon is the most commonly used shielding gas in TIG welding due to its inert properties. It provides excellent protection for most metals, including steel, stainless steel, and aluminum. The flow rate of the shielding gas is crucial to ensure proper coverage and protection during the welding process.
Factors affecting gas flow rate in TIG welding
Several factors influence the gas flow rate required for TIG welding. These factors should be taken into account when setting the flow rate to achieve optimal results.
Welding material
Different materials require different gas flow rates for effective shielding. Thicker materials typically require higher flow rates to ensure adequate protection. For example, when welding aluminum, a higher flow rate is needed due to its higher thermal conductivity and greater susceptibility to oxidation.
Torch size
The size of the TIG torch also affects the gas flow rate. Larger torches generally require higher flow rates to maintain a sufficient shielding gas coverage. Smaller torches, on the other hand, may require lower flow rates to avoid excessive turbulence and gas wastage.
Joint configuration
The joint configuration, such as a butt joint or a fillet joint, can impact the gas flow rate. In some cases, certain joint designs may require adjustments to the flow rate to ensure proper shielding coverage, especially in tight spaces or complex joint geometries.
Optimal gas flow rate for different materials and thicknesses
To achieve high-quality TIG welds, it is essential to set the gas flow rate correctly based on the welding material and thickness. Here are some general recommendations:
Steel and stainless steel
For steel and stainless steel welding, a flow rate of 15-20 cubic feet per hour (CFH) is typically sufficient for materials up to 1/8 inch in thickness. Thicker materials may require a higher flow rate, ranging from 20-25 CFH.
Aluminum
Aluminum welding requires a higher flow rate due to its high thermal conductivity. A flow rate of 20-30 CFH is generally recommended for aluminum welding, depending on the thickness of the material. Thicker aluminum may require a flow rate of up to 35 CFH.
Other materials
For other materials, such as copper, brass, or titanium, it is best to consult the welding specifications or manufacturer’s recommendations for the appropriate gas flow rate.
It’s important to note that these recommendations serve as a starting point, and adjustments may be necessary based on specific welding conditions and personal preferences.
How to measure and adjust gas flow rate in TIG welding
Accurately measuring and adjusting the gas flow rate is essential to ensure proper shielding during TIG welding. Here’s a step-by-step process to help you set the gas flow rate correctly:
- Attach a flowmeter or regulator to the gas cylinder.
- Open the cylinder valve slowly to allow gas to flow into the regulator.
- Set the desired flow rate on the flowmeter or regulator.
- Purge the gas line by briefly opening the torch valve to remove any impurities or contaminants.
- Adjust the flow rate as needed by turning the flowmeter or regulator knob.
- Check the gas flow visually by observing the gas coverage around the weld area. It should form a stable and consistent shield without excessive turbulence or gas leakage.

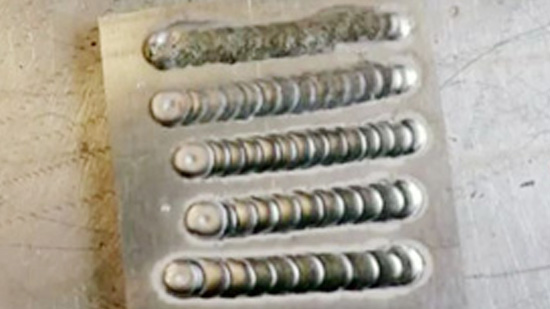

Photo by perfectwelders
Remember to make gradual adjustments and monitor the gas flow during the welding process to ensure consistent shielding.
Some mistakes and issues related to gas flow rate in TIG welding
Several common mistakes and issues can arise when setting the gas flow rate in TIG welding. These include:
Insufficient shielding
Too low of a flow rate can result in inadequate shielding, leading to weld contamination and defects. This is commonly seen as discoloration or oxidation on the weld surface.
Excessive turbulence
Setting the flow rate too high can cause excessive turbulence, disrupting the shielding and leading to inconsistent welds. Porosity and lack of fusion are common issues associated with excessive gas flow.
Improper torch positioning
Incorrect torch positioning can affect the gas flow and shielding effectiveness. Ensure that the torch angle and distance from the workpiece are appropriate for the desired gas coverage.
Gas flow rate recommendations from experts and industry standards
Experts in the field of TIG welding and industry standards provide valuable recommendations for gas flow rates. These recommendations serve as a guide for welders to achieve optimal results:
- The American Welding Society (AWS) suggests a flow rate of 15-20 CFH for most TIG welding applications on steel and stainless steel.
- The Aluminum Association recommends a flow rate of 20-30 CFH for aluminum welding.
- It is always advisable to consult the welding equipment manufacturer’s guidelines and specifications for specific materials and torch configurations.
Best practices for maintaining consistent gas flow rate in TIG welding
To maintain consistent gas flow rate in TIG welding and achieve high-quality welds, it’s important to follow these best practices:
- Regularly check and replace gas flow and pressure gauges to ensure accurate readings.
- Keep the gas lines clean and free from obstructions or debris that can affect the flow rate.
- Perform regular leak tests to identify and fix any gas leakage issues promptly.
- Train and educate welders on the importance of gas flow rate and the correct techniques for setting and adjusting it.
- Monitor and document gas flow rates for different materials, thicknesses, and joint configurations to establish reliable welding procedures.
By implementing these best practices, welders can consistently achieve optimal gas flow rates and produce high-quality TIG welds.
Conclusion
In tig welding, gas flow rate is a critical factor in achieving high-quality welds. It ensures proper shielding, protects against atmospheric contaminants, and contributes to weld strength and aesthetics.
By understanding the factors influencing gas flow rate, measuring and adjusting it correctly, and following industry recommendations and best practices, welders can consistently achieve optimal gas flow rates and produce exceptional TIG welds.
