When it comes to welding stainless steel pipe, TIG welding is the go-to method. With its precision, clean welds, and ability to join even the thinnest of materials, TIG welding is a popular choice among professionals. We will delve into the world of TIG welding and explore the techniques, equipment, and considerations you need to know to successfully weld stainless steel pipe.
TIG welding, also known as Gas Tungsten Arc Welding (GTAW), utilizes a tungsten electrode to create an arc that melts the base metal and filler rod. The process is controlled by the skilled welder, who manually feeds the filler rod into the weld puddle while maintaining the desired heat. The result is a strong and aesthetically pleasing weld with minimal spatter.
Photo by cmw.cc
Whether you’re a professional welder or a DIY enthusiast, understanding the ins and outs of TIG welding stainless steel pipe is essential for achieving high-quality results. From selecting the right filler rod to mastering the proper technique, we’ll provide you with the knowledge needed to tackle this specialized welding process with confidence. So, let’s dive in and discover the art of TIG welding stainless steel pipe.
Advantages of TIG welding stainless steel pipe
TIG welding offers several advantages when it comes to welding stainless steel pipe. Firstly, it allows for precise control over the heat input, minimizing the risk of distortion or warping. This is particularly important when working with thin-walled pipes, as excessive heat can cause deformation. Additionally, TIG welding produces clean and aesthetically pleasing welds, making it ideal for applications where appearance matters.
Another advantage of TIG welding stainless steel pipe is its versatility. TIG welding can be used on a wide range of stainless steel alloys, offering flexibility in various welding projects. It also provides excellent control over the weld pool, allowing for intricate and detailed work.
TIG welding produces minimal spatter, resulting in less post-weld cleanup. This saves time and effort, especially when working on projects with strict quality requirements. Overall, TIG welding is a reliable and efficient method for welding stainless steel pipe.
Tips for preparing stainless steel pipe for TIG welding
Before starting the TIG welding process, proper preparation of the stainless steel pipe is crucial for achieving optimal results. Here are some tips to ensure your pipes are ready for welding:
Clean the surface
Thoroughly clean the pipe’s surface to remove any dirt, grease, or contaminants that could affect the quality of the weld. Use a stainless steel wire brush or a dedicated cleaning agent to remove any stubborn residues.
Remove oxides
Stainless steel forms a thin oxide layer on its surface, which can hinder the welding process. Use a stainless steel pickling paste or solution to remove these oxides and achieve a clean surface for welding.
Bevel the edges
For thicker pipes or when welding joints, bevel the edges to create a V-shaped groove. This increases the weld joint’s surface area, ensuring proper penetration and strength of the weld.
Proper preparation is essential for achieving strong and durable TIG welds on stainless steel pipes. Take the time to clean, remove oxides, and bevel the edges to ensure a successful welding process.

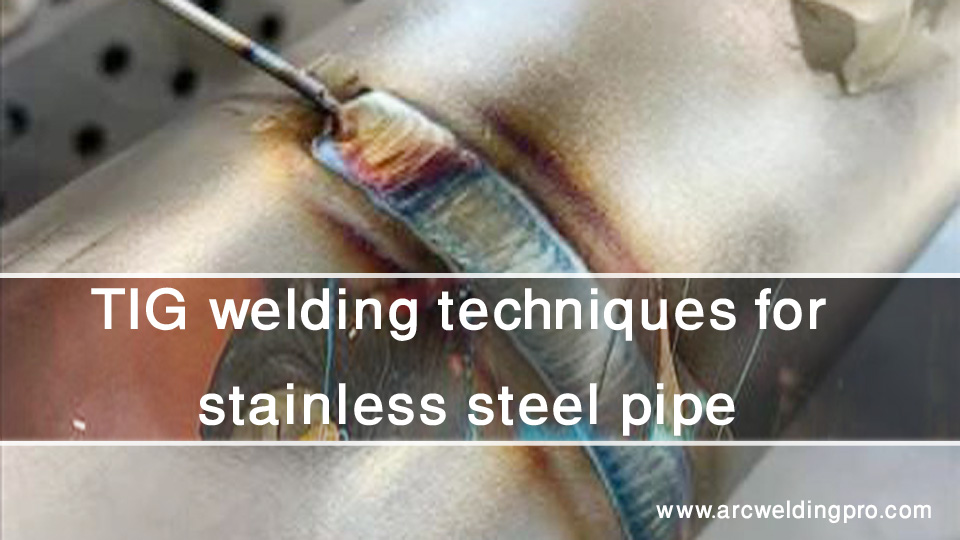

TIG welding techniques for stainless steel pipe
TIG welding stainless steel pipe requires specific techniques to achieve optimal results. Here are some key techniques to keep in mind:
Establish a stable arc
Start by establishing a stable arc before moving the torch along the joint. This ensures consistent heat and proper fusion between the base metal and filler rod. Maintain a steady hand movement and avoid excessive heat input.
Control the weld puddle
As you weld, focus on controlling the size and shape of the weld puddle. Use a slight weaving motion to distribute the heat evenly and prevent overheating in one area. This technique helps avoid distortion and ensures a strong and uniform weld.
Feed the filler rod smoothly
Feed the filler rod into the weld puddle smoothly and at a consistent rate. The goal is to achieve a continuous and uniform deposition of filler metal. Avoid excessive buildup or gaps by maintaining control over the filler rod.
Image by silverbureau
Choosing the right TIG welding equipment for stainless steel pipe
Selecting the right TIG welding equipment is crucial for achieving successful welds on stainless steel pipes. Here are some factors to consider when choosing your equipment:
Tungsten electrode selection
Choose a tungsten electrode suitable for welding stainless steel. Thoriated tungsten electrodes are commonly used for their superior arc stability and durability. However, if you’re working with thin materials, consider using ceriated or lanthanated tungsten electrodes to minimize the risk of tungsten inclusion.
Gas selection
Use a shielding gas appropriate for welding stainless steel. Argon is commonly used as a shielding gas for TIG welding stainless steel because it provides excellent arc stability and protects the weld from oxidation.
Power source
Consider the power source’s capabilities, such as its amperage range and duty cycle. Make sure the power source can handle the specific requirements of TIG welding stainless steel pipe, especially if you’re working on larger or more demanding projects.
Torch selection
Choose a TIG torch suitable for your welding application. Consider factors such as torch size, handle style, and ergonomic features that will enhance your comfort and control during the welding process.
By selecting the right TIG welding equipment, you’ll ensure optimal performance and achieve high-quality welds on stainless steel pipes.
Common challenges in TIG welding stainless steel pipe and how to overcome them
TIG welding stainless steel pipe can present some challenges. Here are a few common issues you may encounter and tips to overcome them:
Heat control
Stainless steel is prone to distortion and warping when exposed to excessive heat. To overcome this, use a lower heat input and control the weld puddle size. Additionally, consider using heat sinks or heat-resistant materials to distribute heat and prevent overheating.
Contamination
Contaminants such as oil, grease, or dirt can affect the quality of the weld. Ensure proper cleaning of the stainless steel pipe before welding and maintain a clean work environment. Regularly clean the tungsten electrode and replace it if it becomes contaminated during the welding process.
Tungsten inclusion
Tungsten inclusion occurs when the tungsten electrode becomes trapped in the weld. To prevent this, use the appropriate tungsten electrode size and type for the stainless steel being welded. Maintain the correct electrode stick-out length and avoid excessive heat input, which can cause the tungsten to melt and become embedded in the weld.
By being aware of these challenges and implementing the necessary precautions, you’ll be able to overcome them and achieve high-quality TIG welds on stainless steel pipes.

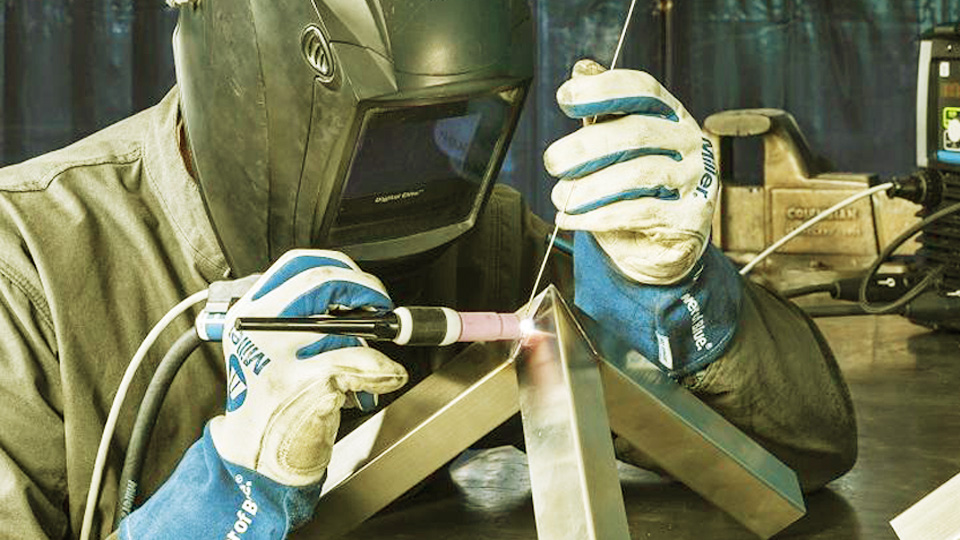

Safety precautions for TIG welding stainless steel pipe
Safety should always be a top priority when TIG welding stainless steel pipe. Here are some essential safety precautions to follow:
Protective clothing
Wear appropriate protective clothing, including a welding helmet with a shade suitable for TIG welding, flame-resistant clothing, gloves, and safety glasses. This will protect you from welding sparks, UV radiation, and potential burns.
Ventilation
Ensure proper ventilation in your workspace to prevent the buildup of harmful fumes and gases. Use exhaust fans or work in a well-ventilated area to maintain clean air quality.
Electrical safety
Ensure that your TIG welding equipment is properly grounded and that all cables and connections are in good condition. Avoid contact with live electrical parts and always use insulated tools when necessary.
Fire prevention
Keep a fire extinguisher nearby and ensure you have a fire-resistant work surface. Remove any flammable materials from your workspace and be mindful of potential fire hazards.
By following these safety precautions, you’ll create a safer working environment and reduce the risk of accidents or injuries while TIG welding stainless steel pipes.
Image by thefabricator
Best practices for achieving a clean and professional TIG weld on stainless steel pipe
To achieve a clean and professional TIG weld on stainless steel pipe, here are some best practices to follow:
Practice and experimentation
TIG welding requires skill and practice. Take the time to practice on scrap pieces of stainless steel pipe before working on your actual project. Experiment with different techniques, heat settings, and filler rod sizes to find what works best for your specific application.
Maintain cleanliness
Keep your stainless steel pipe and welding equipment clean throughout the welding process. Regularly clean the tungsten electrode, remove any spatter or slag, and ensure a clean work environment to minimize the risk of contamination.
Inspect and test
After completing each weld, inspect it visually and, if necessary, perform non-destructive testing methods such as dye penetrant testing or visual inspection with a magnifying glass. This will help ensure the weld’s quality and identify any potential defects.
Continual improvement
Never stop learning and improving your TIG welding skills. Stay updated with the latest techniques, equipment advancements, and industry standards. Attend welding seminars, workshops, or online courses to enhance your knowledge and expertise.
By following these best practices, you’ll be able to consistently achieve clean and professional TIG welds on stainless steel pipes.
Conclusion
TIG welding stainless steel pipe requires skill, knowledge, and the right equipment. By understanding the advantages of TIG welding, properly preparing the stainless steel pipe, mastering the techniques, and selecting the appropriate equipment, you’ll be able to achieve high-quality welds that are both strong and aesthetically pleasing.
To follow safety precautions, continuously improve your skills, and utilize available resources to enhance your knowledge. With practice and dedication, you’ll become proficient in the art of TIG welding stainless steel pipe, opening up a world of possibilities for your welding projects. So, grab your TIG torch, put on your protective gear, and start creating flawless welds on stainless steel pipes today.
