Different Types of Flames in Gas Welding

In gas welding, the types of flames include neutral, carburizing, and oxidizing flames. Each flame has distinct characteristics.

Gas welding flames play a crucial role in achieving optimal welding results. The different types of flames and their applications is essential for welders to produce high-quality welds. Let’s delve deeper into the significance of each flame type and how they influence the welding process.

By mastering the nuances of gas welding flames, welders can enhance their precision and efficiency in various welding applications.

Photo by dizz

About Gas Welding Flames

Historical context:

Gas welding has been a crucial method in metalworking for centuries.

Basics of gas welding:

• Gas welding involves using a fuel gas and oxygen to produce a flame for welding.
• The two primary types of gas welding flames are neutral and carburizing.

Neutral flames provide a balanced mix of fuel gas and oxygen for general welding.

Carburizing flames have excess fuel gas and are used for welding high-carbon steels.

Characteristics Of A Good Welding Flame

A good welding flame exhibits a light blue color and a well-defined inner cone, indicating the right balance of oxygen and acetylene. The flame should be steady and not produce excessive noise, ensuring efficient and precise gas welding. Additionally, it should be free from any signs of soot or smoke, indicating clean combustion.

When it comes to gas welding, achieving a good welding flame is crucial for producing strong and reliable welds. The characteristics of a good welding flame can be identified through temperature considerations, as well as color and shape indicators. Let’s explore these aspects in more detail:

Temperature Considerations

The temperature of a welding flame is a key factor that directly affects the quality of the weld. A good welding flame should have a balanced temperature, neither too hot nor too cold. The ideal temperature range for gas welding is typically between 3200?C and 3500?C (5800?F and 6300?F). This ensures that the metal being welded melts properly, allowing for effective fusion and penetration.

Color And Shape Indicators

The color and shape of the flame also provide valuable indicators of the welding process. A good welding flame exhibits certain characteristics that can be visually identified:

Blue Inner Cone: The inner cone of the flame should have a bright blue color. This indicates that the fuel gas is burning efficiently and at the correct ratio with the oxygen. It signifies a well-oxidized flame, ensuring proper heat concentration for effective welding.

Sharp Outer Cone: Surrounding the blue inner cone, there should be a sharp outer cone. This outer cone is typically colorless or slightly yellowish. It indicates that the flame is properly focused and concentrated, providing precise heat distribution to the welding area.

No Extraneous Flames: A good welding flame should not have any extraneous flames or excessive flickering. These irregularities can indicate an improper fuel-to-oxygen ratio, resulting in an unstable flame that can lead to poor weld quality.

By carefully observing the color and shape of the flame, welders can ensure they have a good welding flame, which is essential for achieving high-quality welds. Remember, a well-balanced temperature and a visually consistent flame are key factors in creating strong and reliable welds.

Neutral Flame: The Balanced Approach

Achieving a neutral flame is crucial in gas welding to maintain a balanced approach. Different types of flames, such as oxidizing, carburizing, and neutral, play a key role in the welding process. Understanding the characteristics of each flame type is essential for achieving optimal results.

Gas welding is a widely used process in manufacturing and repair industries. It requires the use of a fuel gas and an oxidizer to create a flame that melts the metal parts to be joined. The flame used in gas welding can have different properties depending on the type of gas used and the ratio of fuel gas to oxidizer.

One of the most important types of flames used in gas welding is the neutral flame. Let’s take a closer look at the properties and applications of this balanced approach.

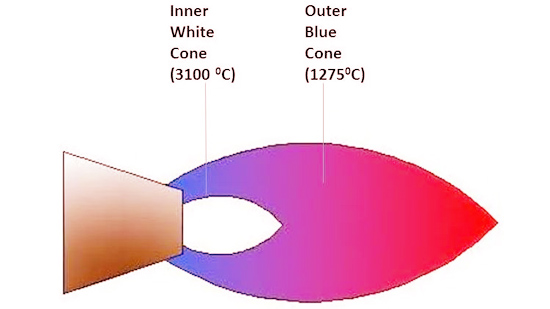

Properties

The neutral flame is created by mixing equal amounts of fuel gas and oxidizer. This results in a flame that has a balanced chemical reaction, with neither a reducing nor an oxidizing effect on the metal being welded. The neutral flame burns at a temperature of around 5,500?F (3,000?C), which is hot enough to melt most common metals used in welding.

The neutral flame has a distinct cone shape, with a light blue inner cone surrounded by a dark blue outer cone. The inner cone is the hottest part of the flame and is used to melt the metal being welded. The outer cone is cooler and is used to protect the weld from oxidation and atmospheric contamination.

Applications

The neutral flame is the most versatile flame used in gas welding because it can be used to weld a variety of metals, including steel, aluminum, and copper. It is commonly used in applications where a high-quality weld is required, such as in the aerospace and automotive industries.

The neutral flame is also used for brazing, a process that joins two pieces of metal by heating them to a temperature below their melting point and then filling the gap between them with a filler metal.

The neutral flame is ideal for brazing because it creates a clean joint with minimal oxidation and discoloration. In conclusion, the neutral flame is an essential tool in gas welding because of its balanced chemical reaction and versatility.

It is used in a variety of applications, including welding and brazing, and produces high-quality results. By understanding the properties and applications of the neutral flame, welders can achieve precise and reliable results in their work.

Carburizing Flame: Adding Carbon

In gas welding, the carburizing flame is used to introduce carbon into the weld pool, strengthening the metal. This type of flame has a higher amount of acetylene, creating a reducing atmosphere that prevents oxidation. It’s an essential process for enhancing the hardness of the metal surface.

Gas welding is a popular method of joining metals. It involves the use of a flame that is produced by the combustion of a fuel gas mixed with oxygen. The flame is used to heat the metal to its melting point, and a filler material is added to create a bond between the two pieces of metal. There are different types of flames in gas welding, and one of them is the carburizing flame.

Defining Features

The carburizing flame is so named because it adds carbon to the weld pool. This type of flame is characterized by a light blue cone in the center of the flame, surrounded by a darker blue cone. The inner cone is where the carbon is added to the weld pool, while the outer cone provides the heat needed to melt the metal.

When To Use

The carburizing flame is used when welding metals that are high in carbon content, such as cast iron. The carbon in the flame helps to increase the carbon content of the weld, which is necessary for a strong bond. This type of flame can also be used when welding metals that are prone to oxidation, as the carbon helps to protect the metal from the oxygen in the air.

Precautions

When using a carburizing flame, it is important to take precautions to ensure safety. One of the most important precautions is to use proper ventilation, as the carbon in the flame can produce toxic fumes. It is also important to use the correct type of filler material, as using the wrong material can result in a weak bond.

The carburizing flame is an important tool in gas welding, particularly when welding metals that are high in carbon content or prone to oxidation. By understanding the defining features of this type of flame and taking proper precautions, welders can produce strong, high-quality welds.

Oxidizing Flame: For Certain Metals

Oxidizing flame is a gas welding flame type used for specific metals.

Characteristics

• Blue inner cone with a light blue outer flame
• Highly oxygen-rich flame
• Short, sharp flame

Ideal Uses

1. Works best for welding steel, iron, and copper
2. Effective for cutting through thick metals
3. Not suitable for welding aluminum or magnesium

Flame Adjustment Techniques

When it comes to gas welding, achieving the perfect flame is crucial for a successful weld. Understanding the different types of flames and how to adjust them is essential for welders to produce high-quality work. In this post, we’ll explore flame adjustment techniques, focusing on achieving the perfect balance and safety precautions.

Achieving The Perfect Balance

Gas welding requires a precise balance of oxygen and fuel gas to create the ideal flame. The perfect balance results in a clean, efficient flame that promotes optimal weld quality. Achieving this balance involves adjusting the oxygen and fuel gas ratios to produce the desired flame characteristics.

Safety Precautions

Ensuring safety while adjusting the welding flame is paramount. Adhering to safety precautions minimizes the risk of accidents and promotes a secure working environment. Welders must prioritize safety by following proper procedures, using appropriate personal protective equipment, and being mindful of potential hazards.

Impact Of Flame Types On Different Materials

Different flame types in gas welding have varying effects on materials. A neutral flame produces minimal oxidation, while a carburizing flame introduces carbon into the metal, affecting its properties. An oxidizing flame can lead to surface scaling and weakening of certain materials.

Impact of Flame Types on Different Materials Gas welding is a versatile process that utilizes different types of flames to weld various materials. The flame type used in gas welding can significantly impact the quality and strength of the weld. Understanding the impact of flame types on different materials is crucial for achieving successful welding outcomes.

Metals And Their Reactions

Different metals react differently to the types of flames used in gas welding. For instance, ferrous metals such as steel and iron are best welded with a neutral flame, which provides a balanced heat distribution and reduces the risk of oxidation.

On the other hand, non-ferrous metals like aluminum and copper require a slightly oxidizing flame to form a protective oxide layer that prevents contamination and ensures a clean weld. It is essential to consider the specific reactions of different metals when selecting the appropriate flame type for gas welding.

Tips For Material-specific Welding

When welding different materials, it’s essential to tailor the welding process to the specific properties of the material. Here are some material-specific welding tips:

Steel: Use a neutral flame to prevent oxidation and maintain the integrity of the metal.

Aluminum: Employ a slightly oxidizing flame to form a protective oxide layer and achieve a clean weld.

Copper: Utilize a slightly carburizing flame to prevent excessive oxidation and maintain the conductivity of the material.

Cast Iron: Apply a carburizing flame to prevent rapid cooling and ensure proper fusion of the material. Understanding the unique requirements of each material is crucial for achieving high-quality welds in gas welding applications.

By tailoring the flame type to the specific material, welders can optimize the welding process and produce durable and reliable welds. In gas welding, the choice of flame type plays a critical role in determining the quality and integrity of the weld.

By understanding the impact of flame types on different materials, welders can make informed decisions to achieve superior welding results.

Advanced Gas Welding Flames

Advanced gas welding flames refer to the different types of flames produced during gas welding. These include neutral, oxidizing, and carburizing flames, each with their unique characteristics and uses. Understanding these flames is crucial for achieving quality welds in various welding applications.

Innovations In Gas Welding

Gas welding has seen significant advancements in recent years, particularly in the development of advanced gas welding flames. These innovations have expanded the capabilities of gas welding and improved the precision and efficiency of the process.

The introduction of advanced gas welding flames has revolutionized the welding industry, allowing for greater control and customization in the welding process. This has opened up new possibilities for welding applications across various industries.

Future Trends

As technology continues to advance, the future of gas welding is poised for further innovation. Future trends in gas welding are expected to focus on enhancing the precision, speed, and environmental sustainability of the welding process.

Advancements in gas welding equipment and techniques will play a crucial role in shaping the future of the industry, ensuring that gas welding remains a versatile and reliable method for joining metal components.

Conclusion

To summarize, understanding the different types of flames in gas welding is crucial for achieving successful welds. By recognizing the characteristics of each flame, such as neutral, oxidizing, and carburizing flames, welders can effectively control heat and maintain proper weld quality.

This knowledge empowers welders to select the appropriate flame for specific materials and welding techniques, ensuring optimal results.
