To weld on a car without shorting the ECU, disconnect the battery and avoid welding near electronic components. When welding, use a welding blanket to shield sensitive areas from heat and sparks.
Always consult a professional if unsure. Introducing welding to a car can be a daunting task for many DIY enthusiasts. The process is not as simple as it may seem, especially when delicate electronic components are involved. One wrong move could lead to a short circuit in the ECU, causing significant damage to the vehicle’s electrical system. In this blog post, we will explore some essential tips on how to weld on a car without risking damage to the ECU.
Safety First: Preparing To Weld On A Vehicle
Welding on a car can be a daunting task, but with the right safety precautions, it can be done efficiently and safely. Before beginning any welding project, it’s important to prepare and ensure the work area is safe and ready for welding. This includes wearing personal protective equipment and making sure the work area is clear of any flammable materials.
Personal Protective Equipment
Personal protective equipment, or PPE, is essential when welding on a car. This equipment protects the welder from potential hazards such as sparks and debris. The following PPE should be worn when welding on a car:
| Equipment | Description |
| Welding Helmet | Protects the face, eyes, and neck from sparks and radiation. |
| Welding Gloves | Protects the hands from sparks and heat. |
| Welding Jacket | Protects the torso and arms from sparks and heat. |
| Welding Boots | Protects the feet from sparks and heat. |
| Respirator | Protects the lungs from fumes and gases. |
Work Area Readiness
Preparing the work area is essential to ensure a safe and efficient welding project. The following steps should be taken to prepare the work area:
- Clear the work area of any flammable materials such as gasoline, oil, and paint.
- Clean the area around the weld to ensure a clean and strong weld.
- Ensure there is adequate ventilation to prevent fumes and gases from accumulating.
- Keep a fire extinguisher nearby in case of an emergency.
By following these safety precautions, you can weld on a car without shorting the ECU and ensure a successful welding project without any hazards. Safety should always be the top priority when welding on a car.
Understanding Vehicle Electronics
Basics Of An Ecu
An Engine Control Unit (ECU) is a crucial component that regulates various vehicle functions.
It processes data from sensors to control fuel injection, ignition timing, and other essential operations.
How Welding Can Affect Car Electronics
- Heat from welding can damage sensitive electronic components in the car.
- Electric arcs during welding can cause voltage spikes that harm the ECU.
- Incorrect grounding while welding can lead to electrical surges impacting the ECU.
Image by samples.jbpub
Choosing the Right Welding Equipment
When it comes to welding on a car without causing damage to the ECU, selecting the right welding equipment is crucial. Proper equipment ensures that the welding process is efficient and safe, reducing the risk of electrical damage to the car’s ECU.
Types Of Welders
There are several types of welders suitable for welding on cars, including MIG (Metal Inert Gas), TIG (Tungsten Inert Gas), and spot welders. MIG welders are versatile and easy to use, making them a popular choice for automotive welding. TIG welders offer precise control and are ideal for thin materials. Spot welders are specifically designed for welding car body panels.
Selecting Welding Consumables
Choosing the right welding consumables is essential to ensure high-quality welds without damaging the car’s ECU. Electrodes, wires, and shielding gases must be selected based on the type of welder and the specific requirements of the welding project. Using the correct consumables minimizes the risk of electrical interference with the car’s sensitive electronics.
Pre-welding Preparations
When it comes to welding on a car, taking the necessary precautions and preparations is crucial to avoid damaging sensitive electronic components like the Engine Control Unit (ECU). Pre-welding preparations are essential to ensure a safe and successful welding process without risking shorting the ECU.
Cleaning The Work Surface
Before starting any welding work on your car, thoroughly clean the work surface to remove any dirt, grease, or flammable materials that could pose a fire hazard. Use a suitable solvent or degreaser to clean the area around the welding site, ensuring a clean and contamination-free surface for welding.
Disconnecting The Battery
Prior to any welding activity, it’s vital to disconnect the car’s battery to prevent the risk of electrical damage to the ECU and other sensitive electronic components. Remove the negative terminal first, followed by the positive terminal, and secure them away from the battery to avoid accidental reconnection.

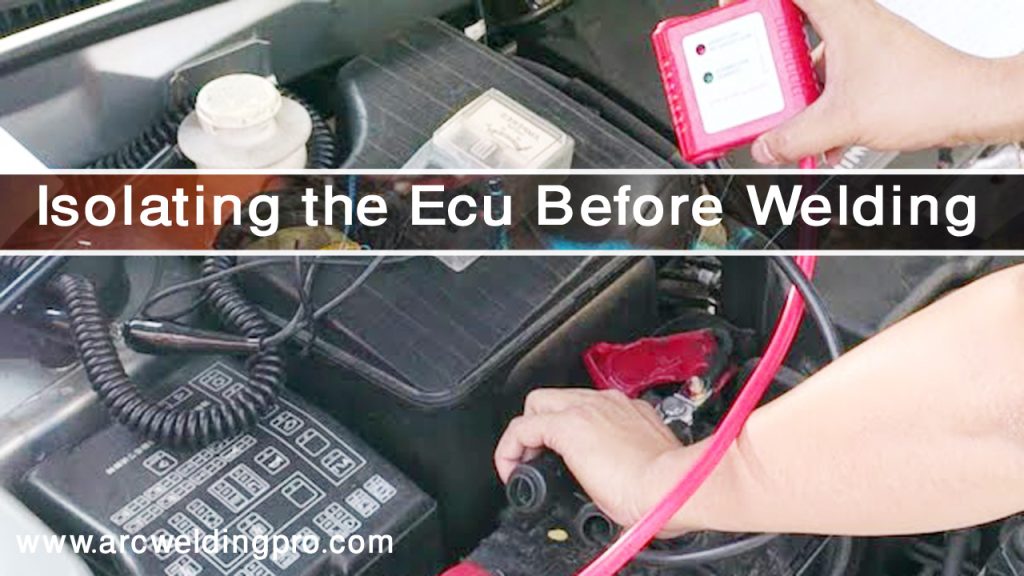

Isolating the Ecu Before Welding
When welding on a car, it’s crucial to isolate the ECU to prevent short circuits. Disconnect the battery and remove the ECU fuse to safeguard the electronic control unit during the welding process. This precaution helps avoid damage to the ECU system and ensures a successful welding job on the vehicle.
Reasons For Ecu Protection
Protecting the ECU during welding is crucial to prevent damage caused by electrical interference.
Methods To Isolate The Ecu
There are various methods available to isolate the ECU before welding on a car.
- Disconnect the battery to cut power supply.
- Remove the ECU and store it in a safe place.
- Use an ECU cover to shield it from sparks.
Image by risingsun4x4club
Executing the Weld
Executing the weld on a car requires proper technique to prevent shorting the ECU. Begin by preparing the metal surface and selecting the appropriate welding method, such as MIG or TIG. Take care to avoid overheating the ECU and follow safety precautions to ensure a successful weld.
Welding Techniques For Car Repair
When welding on a car, it is crucial to use appropriate techniques to avoid damaging the ECU. Always follow safety precautions and guidelines to ensure a successful weld.
Monitoring Heat Transfer
Proper monitoring of heat transfer is essential during the welding process. This helps prevent overheating and potential damage to sensitive components like the ECU.
When executing a weld on a car, ensure that the area around the weld point is cleaned and free of any flammable materials. Position the welding tool at the correct angle to achieve the desired weld result.
Begin the welding process by applying short bursts of heat to gradually build up the weld. Avoid prolonged exposure to heat to prevent damage to surrounding components.
Regularly check the temperature of the weld area to avoid overheating. Use heat-resistant materials to shield sensitive parts such as the ECU from excessive heat.
After completing the weld, allow the area to cool down gradually before reconnecting the ECU and testing the vehicle to ensure proper functionality.
Post-welding Procedures
After completing the welding process on your car, it’s crucial to follow the necessary post-welding procedures to avoid damaging the electronic control unit (ECU). These steps are essential to ensure the safety and functionality of the vehicle’s electronics. Let’s take a closer look at the post-welding procedures to keep the ECU and other electronic components safe.
Inspecting Weld Quality
After welding, it’s vital to inspect the quality of the welds to ensure they meet the required standards. Check for proper penetration, uniformity, and structural integrity. Any imperfections or defects should be addressed promptly to prevent potential issues down the line. If necessary, consult with a professional welder to assess the weld quality thoroughly.
Reconnecting Electronics Safely
When it’s time to reconnect the electronics, exercise caution and follow proper procedures. Prioritize safety by disconnecting the battery before working on any electronic components. Take care to avoid short circuits and ensure all connections are secure and properly insulated. Utilize protective equipment such as gloves and safety glasses to prevent any accidents during the reconnection process.
Testing tnd Troubleshooting the electronic control unit (ECU)
When it comes to welding on a car, testing and troubleshooting the electronic control unit (ECU) is crucial to avoid potential damage. By following the right steps, you can ensure that your welding process does not result in a short ECU. Let’s take a closer look at the testing and troubleshooting methods for welding on a car without causing any harm to the ECU.
Image by bosch-repair-service
Initial System Checks
Before you begin any welding work on your car, it’s important to conduct thorough initial system checks to identify any potential issues. This includes inspecting the condition of the ECU, wiring harnesses, and any nearby electronic components. Look for signs of damage or wear that could be exacerbated during the welding process. Additionally, ensure that the car’s battery is disconnected to prevent electrical surges that could damage the ECU.
Troubleshooting Common Issues After Welding
If you encounter problems with the ECU after welding on your car, there are several common issues that could be the culprit. One of the first steps in troubleshooting is to check for any visible damage to the ECU or surrounding components. Additionally, testing the ECU with a multimeter can help identify any electrical issues that may have arisen during the welding process. It’s also important to inspect the grounding of the welding equipment and ensure that no stray currents have affected the ECU.
Conclusion
Welding on a car without shorting the ECU is crucial for vehicle safety and performance. By following proper techniques and precautions, you can successfully weld on your car without damaging the ECU. Remember to disconnect the battery, use insulation, and consult a professional if needed.
