Welding Burn Through Causes & How to Prevent Burn Through in Welding

Welding is a crucial process in various industries, from construction to manufacturing. It involves joining two or more pieces of metal together using heat and pressure. While welding is an essential skill, it comes with its own set of challenges. One of the most common issues welders face is burn through, which can compromise the integrity of the weld and lead to costly repairs.

We will explore the causes of welding burn through and provide practical tips on how to prevent it, ensuring high-quality welds every time.

What is Welding Burn Through?

Before diving into the causes and prevention methods, it’s essential to understand what welding burn through actually is. Burn through occurs when the welding heat melts completely through the base metal, creating a hole or gap in the workpiece. This phenomenon is particularly problematic when working with thin materials or in situations where precise control of heat input is crucial.

Burn through not only weakens the structural integrity of the weld but also results in an unsightly appearance. It can lead to rejected parts, increased material waste, and additional time spent on repairs or rework. Understanding the causes of burn through is the first step in preventing this issue and improving overall welding quality.

Common Causes of Welding Burn Through

Several factors can contribute to welding burn through. By identifying these causes, welders can take proactive measures to mitigate the risk of burn through occurring. Let’s explore some of the most common causes:

Excessive Heat Input

One of the primary causes of burn through is applying too much heat to the workpiece. This can happen when the welding current is set too high or when the welding speed is too slow. Excessive heat input causes the base metal to melt faster than intended, leading to burn through.

Incorrect Electrode Selection

Choosing the wrong electrode for the job can significantly increase the likelihood of burn through. Electrodes that are too large for the material thickness or those with inappropriate coating compositions can deliver excessive heat to the weld pool, resulting in burn through.

Improper Arc Length

Maintaining the correct arc length is crucial in preventing burn through. If the arc length is too short, it concentrates the heat in a small area, increasing the chances of burning through the material. Conversely, an excessively long arc can cause instability and poor heat distribution, also leading to burn through in some cases.

Inadequate Travel Speed

The speed at which the welder moves the electrode along the joint plays a significant role in heat distribution. Moving too slowly allows excessive heat to build up in one area, potentially causing burn through. On the other hand, moving too quickly can result in lack of fusion and other weld defects.

Poor Fit-Up and Joint Preparation

Improper preparation of the welding joint can contribute to burn through. Gaps that are too wide or inconsistent can lead to uneven heat distribution and areas where the material is more susceptible to burning through.

Thin Material Thickness

Welding thin materials presents a higher risk of burn through due to their lower heat capacity. Thin sheets of metal heat up quickly and can easily melt through if proper precautions are not taken.

Lack of Heat Sinking

In some cases, the absence of proper heat sinking can lead to burn through. Heat sinking helps dissipate excess heat from the weld area, preventing localized overheating and potential burn through.

Prevention Techniques for Welding Burn Through

Now that we’ve identified the common causes of welding burn through, let’s explore effective prevention techniques that welders can employ to minimize the risk of this issue occurring:

Proper Heat Input Control

Controlling heat input is crucial in preventing burn through. This can be achieved through several methods:

Adjust Welding Parameters

Fine-tune your welding machine settings, including amperage and voltage, to match the material thickness and type. Start with lower settings and gradually increase as needed.

Pulsed Welding

Utilize pulsed welding techniques, which alternate between high and low current levels. This helps control heat input and reduces the risk of burn through, especially on thin materials.

Use of Heat Sinks

Employ heat sinks, such as copper backing bars or heat-absorbing compounds, to draw excess heat away from the weld area. This is particularly useful when welding thin materials or in areas with limited heat dissipation.

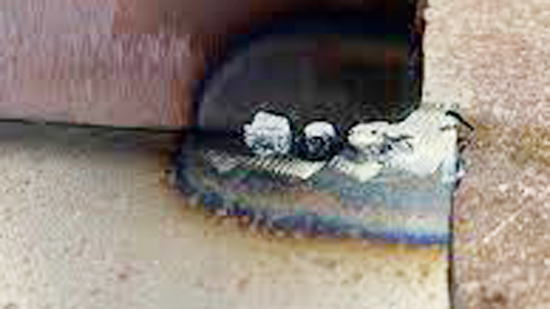

Image by peachparts

Proper Electrode Selection

Choose the right electrode for the job based on the material type, thickness, and welding position. Consider factors such as:

• Electrode diameter: Select an electrode size appropriate for the material thickness.
• Coating type: Choose electrodes with coatings that provide better control and penetration for the specific application.
• Polarity: Ensure the correct polarity (AC, DC+, or DC-) is used based on the electrode type and material being welded.

Maintain Correct Arc Length

Practice maintaining the proper arc length throughout the welding process. As a general rule, the arc length should be approximately equal to the diameter of the electrode being used. Consistent arc length helps ensure even heat distribution and reduces the risk of burn through.

Optimize Travel Speed

Develop a steady and appropriate travel speed to prevent excessive heat buildup in one area. The ideal travel speed varies depending on the welding process, material thickness, and joint configuration. Practice on scrap materials to find the optimal speed for each application.

Proper Joint Preparation

Ensure proper fit-up and joint preparation before welding:

• Clean the joint area thoroughly to remove any contaminants.
• Use appropriate joint designs that minimize the risk of burn through, such as backing strips or edge preparation techniques.
• Maintain consistent gap widths to promote even heat distribution.

Implement Tack Welding

For longer welds or when working with thin materials, use tack welds to secure the pieces in place before completing the full weld. This helps maintain proper alignment and reduces the risk of burn through by allowing heat to dissipate between tacks.

Use of Backing Materials

When welding thin materials or in situations where burn through is a significant concern, consider using backing materials:

• Copper backing strips can help dissipate heat and prevent burn through.
• Ceramic backing tape can provide support and protect against burn through on the backside of the weld.

Employ Proper Welding Techniques

Develop and practice proper welding techniques to minimize the risk of burn through:

Stringer Beads

For thin materials, use stringer beads instead of weaving techniques. This helps distribute heat more evenly and reduces the likelihood of burn through.

Step-Back Technique

Implement the step-back technique, where you weld in short segments and move back slightly before continuing. This allows heat to dissipate and reduces the risk of burn through in one area.

Intermittent Welding

For long welds on thin materials, consider using intermittent welding patterns. This involves welding in short bursts with cooling periods in between, helping to manage heat input effectively.

Utilize Advanced Welding Technologies

Take advantage of modern welding technologies designed to minimize burn through:

Synergic Welding Systems

These systems automatically adjust welding parameters based on material thickness and type, helping to maintain optimal heat input.

Adaptive Pulse Welding

Advanced welding machines with adaptive pulse capabilities can dynamically adjust the welding current to prevent burn through and ensure consistent penetration.

Weld Monitoring Systems

Implement real-time weld monitoring systems that can alert the welder to potential burn through conditions before they occur.

Training and Skill Development

While understanding the causes and prevention techniques for welding burn through is crucial, developing the necessary skills to implement these techniques effectively is equally important. Here are some ways to enhance your welding skills and reduce the likelihood of burn through:

Practice on Scrap Materials

Before tackling important projects, practice welding on scrap materials of various thicknesses. This allows you to experiment with different techniques and machine settings without the pressure of potentially ruining a valuable workpiece.

Attend Welding Workshops and Courses

Participate in professional welding workshops and courses to learn from experienced welders. These programs often provide hands-on training and can introduce you to advanced techniques for preventing burn through.

Stay Updated on Industry Advancements

Keep yourself informed about the latest developments in welding technology and techniques. Attend trade shows, read industry publications, and engage with online welding communities to stay current with best practices for preventing burn through.

Seek Mentorship

If possible, seek guidance from experienced welders who can provide personalized advice on preventing burn through in various welding scenarios. Their practical knowledge can be invaluable in developing your skills.

Conclusion

Welding burn through is a common challenge that welders face, but with the right knowledge and techniques, it can be effectively prevented. By understanding the causes of burn through and implementing the prevention methods outlined in this guide, welders can significantly improve the quality of their welds and reduce the occurrence of this frustrating issue.

Preventing burn through requires a combination of proper equipment selection, parameter adjustment, and skillful technique. It’s a process that demands patience, practice, and continuous learning.

As you gain experience and refine your welding skills, you’ll develop an intuitive understanding of how to manage heat input and avoid burn through across a wide range of welding applications.

By prioritizing burn through prevention, welders can enhance their productivity, reduce material waste, and produce high-quality welds that meet or exceed industry standards. Whether you’re a novice welder or a seasoned professional, implementing these strategies will help you achieve better results and advance your welding career.
