Are you facing the challenge of welding cast iron? In this article, we will explore the art of welding cast iron with flux core wire. Whether you’re a seasoned welder or just starting out, this technique can be a game changer for you.
Flux core welding is a versatile method that offers several benefits. It allows you to join cast iron pieces effortlessly, providing a strong and durable bond. With its unique properties, flux core wire also helps to minimize cracking and porosity, ensuring a successful weld.
We will walk you through the step-by-step process of welding cast iron with flux core wire. From selecting the right flux core wire to preparing the cast iron surface, we’ve got you covered. We will also discuss the best practices and tips for achieving impeccable results.
Photo by reddit
Properties of cast iron
Cast iron is a strong and brittle material that is commonly used in various applications, including engine blocks, pipes, and machinery parts. It is known for its excellent heat retention and resistance to wear and corrosion. However, welding cast iron can be a tricky task due to its unique properties.
One of the main challenges when welding cast iron is its high carbon content, which makes it prone to cracking. Cast iron also has a low melting point compared to other metals, which makes it susceptible to distortion and warping during the welding process. Additionally, cast iron is prone to porosity, which can weaken the weld and compromise its integrity.
To overcome these challenges, it is crucial to understand the properties of cast iron and use the right welding technique. Flux core welding with the appropriate flux core wire can provide the necessary protection and control to achieve a successful weld.
Challenges of welding cast iron
Welding cast iron poses several challenges that require careful consideration and proper technique. One of the main challenges is the high carbon content, which causes the metal to become brittle and prone to cracking. The welding process generates high heat, and if not controlled properly, can lead to the formation of cracks in the cast iron.
Another challenge is the low melting point of cast iron. This means that the metal can easily become overheated, resulting in distortion and warping. The rapid cooling of the weld can also lead to stress and further cracking.
Porosity is another common issue when welding cast iron. Due to its high carbon content, cast iron tends to absorb moisture, which can cause gas bubbles to form during the welding process. The presence of porosity weakens the weld and compromises its strength.
To overcome these challenges, it is important to use the right welding technique and equipment, as well as select the appropriate flux core wire.
Flux core welding process
Flux core welding is a popular method for welding cast iron due to its versatility and effectiveness. It involves using a flux core wire, which contains flux compounds that provide shielding and protect the weld from contaminants.
The flux core wire is fed through the welding gun, and as the wire melts, it releases flux that forms a protective gas shield around the weld. This shield prevents oxygen and other gases from contaminating the weld, reducing the chances of cracking and porosity.
The flux core welding process is similar to MIG welding, with the main difference being the presence of flux in the wire. It is important to set the welding machine to the appropriate settings, including the correct voltage and wire speed, to achieve the desired results.
Image by metalexponents
Preparing the cast iron for welding
Before welding cast iron with flux core wire, proper preparation of the cast iron surface is essential. This involves cleaning the surface to remove any contaminants, such as paint, rust, or grease, that can interfere with the welding process.
To clean the surface, use a wire brush or grinding wheel to remove any loose or oxidized material. It is important to clean the entire area that will be welded, as well as a few inches beyond it, to ensure proper adhesion and prevent cracking.
After cleaning, it is recommended to preheat the cast iron to reduce the risk of cracking. Preheating helps to minimize thermal shock and allows for a more controlled welding process. The temperature and duration of preheating will depend on the thickness and size of the cast iron piece.
Choosing the right flux core wire
Selecting the right flux core wire is crucial for achieving a successful weld when working with cast iron. The flux core wire should have the appropriate composition and characteristics to match the properties of cast iron.
One of the key factors to consider when choosing flux core wire for welding cast iron is the flux composition. The flux should have a high carbon content to match the high carbon content of cast iron. This helps to mitigate the risk of cracking and porosity.
Another important consideration is the wire diameter. Thicker wires are generally more suitable for welding thicker cast iron pieces, while thinner wires are better for thinner sections. It is essential to choose the right diameter to ensure proper penetration and fusion.
The flux core wire should also have good wetting and flow properties to ensure a smooth and even weld. This helps to minimize the chances of defects and ensures a strong bond between the cast iron pieces.

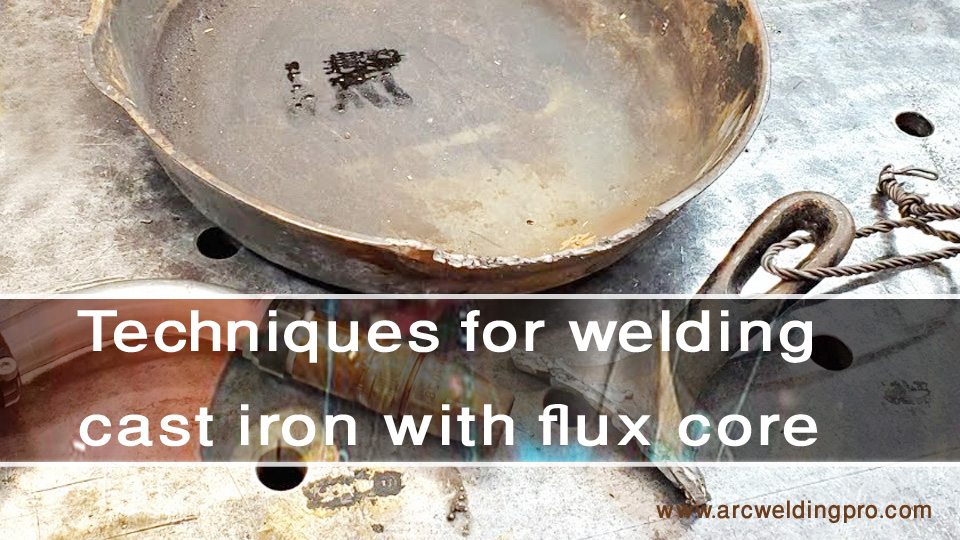

Techniques for welding cast iron with flux core
When welding cast iron with flux core wire, there are several techniques that can help you achieve optimal results. Here are some tips to keep in mind:
- Use a steady hand and maintain a consistent travel speed to ensure even heat distribution and fusion.
- Employ a backstep technique, where you weld in short sections and move backward, to reduce the risk of cracking.
- Use a slight weaving motion while welding to achieve good fusion and minimize the chances of porosity.
- Control the heat input by adjusting the voltage and wire speed to prevent overheating and distortion.
- Employ proper post-weld cooling techniques, such as covering the weld with a heat-resistant blanket or slowly cooling it in a controlled environment, to minimize stress and cracking.
By following these techniques, you can enhance your chances of achieving a successful weld when working with cast iron and flux core wire.
Post-welding considerations and precautions
After completing the weld, there are certain considerations and precautions to keep in mind to ensure the longevity and strength of the weld.
Firstly, it is important to remove any slag or excess flux from the weld. Slag can weaken the weld and compromise its integrity, so it is crucial to clean it thoroughly using a wire brush or grinding wheel.
Secondly, it is recommended to perform a post-weld heat treatment on the cast iron to relieve any residual stresses. This can be done by slowly heating the cast iron to a specific temperature and then allowing it to cool slowly. Heat treatment helps to improve the strength and toughness of the weld.
Lastly, it is essential to inspect the weld for any defects, such as cracks or porosity. If any defects are found, they should be repaired promptly to ensure the integrity of the weld.
Image by BrandonLund, YT
Some Mistakes to avoid when welding cast iron
When welding cast iron with flux core wire, there are some common mistakes that should be avoided to achieve the best results.
One common mistake is using the wrong flux core wire. It is important to select a wire with the appropriate composition and characteristics for cast iron welding.
Another mistake is not properly cleaning the cast iron surface before welding. Failure to remove contaminants can lead to poor adhesion and weak welds.
Overheating the cast iron is another common mistake. Excessive heat can cause the metal to become brittle and prone to cracking.
Lastly, failing to control the welding parameters, such as voltage and wire speed, can result in poor fusion and weak welds.
By being aware of these common mistakes and taking the necessary precautions, you can avoid them and achieve high-quality welds when working with cast iron and flux core wire.
Conclusion
Welding cast iron with flux core wire is a highly effective technique that allows you to join cast iron pieces with ease and confidence. By understanding the properties of cast iron, the challenges involved, and the right techniques and precautions, you can achieve impeccable results.
Remember to select the appropriate flux core wire, prepare the cast iron surface properly, and employ the recommended welding techniques. Pay attention to post-welding considerations and avoid common mistakes to ensure the strength and longevity of the weld.
Whether you’re a seasoned welder looking to expand your skills or a beginner facing the challenges of welding cast iron, flux core welding is a technique worth exploring. With the right knowledge and practice, you can master the art of welding cast iron and achieve professional-level results. Happy welding!
