What Are the Different Types of Non-Destructive Testing?

Non-Destructive Testing (NDT) is an essential process used across many industries, including aerospace, construction, automotive, and manufacturing, to evaluate the integrity of materials, components, or structures without causing any damage. NDT ensures safety, quality, and reliability while allowing for continuous operation and use of the materials being inspected.

In this guide, well explore the different types of Non-Destructive Testing, explain how each method works, its advantages and limitations, and provide a comparison to help you determine the best method for specific applications.

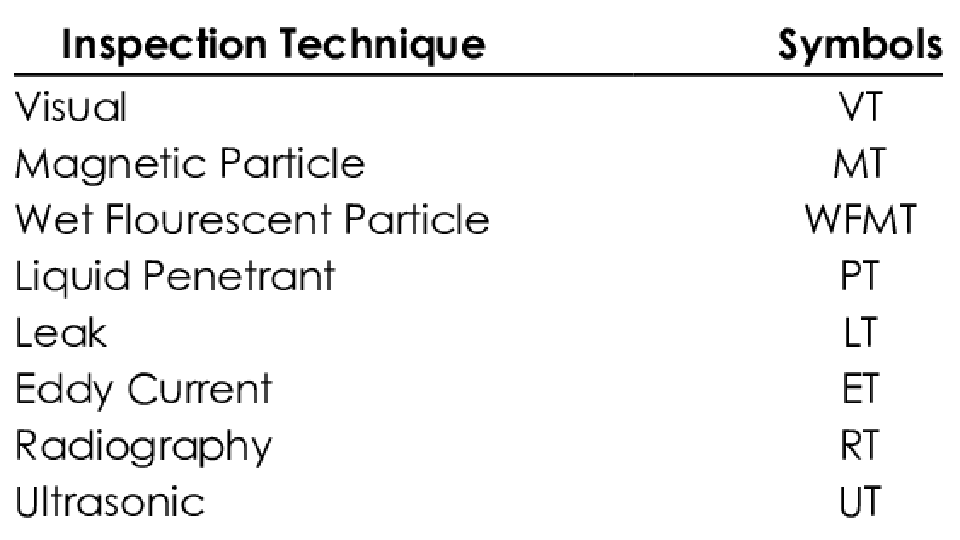

Image by aster-fab

What is Non-Destructive Testing?

Non-Destructive Testing (NDT) refers to a set of analysis techniques that examine materials, components, or systems without damaging them. The primary goal of NDT is to detect surface and subsurface defects, identify structural inconsistencies, and ensure the safety of materials used in critical applications. Unlike destructive testing methods that destroy samples, NDT preserves the material, making it suitable for inspecting both finished products and components in use.

Why Use NDT?

• Safety Assurance: Identifying defects early reduces the risk of structural failure in critical industries like aviation, nuclear power, and oil & gas.
• Cost-Effectiveness: NDT saves costs by detecting defects early, preventing costly repairs, and avoiding the need for additional samples.
• Quality Control: NDT ensures that products meet industry standards, ensuring consistent quality in manufacturing.

Types of Non-Destructive Testing

There are several types of Non-Destructive Testing, each with unique applications and benefits. Below are the most commonly used types of NDT:

Visual Testing (VT)

Visual Testing (VT) is one of the simplest and most commonly used NDT methods. It involves visually inspecting the surface of a material or component for defects such as cracks, corrosion, misalignment, or warping. It may involve the use of magnifying glasses, mirrors, borescopes, or advanced optical devices.

• How it Works: A trained inspector examines the material visually, either directly or with optical aids, to identify visible defects.
• Applications: Commonly used in welding inspections, automotive manufacturing, construction, and routine maintenance checks.
• Advantages: Simple, low-cost, and fast; no specialized equipment required.
• Limitations: Can only detect surface defects; limited to visible areas.

Ultrasonic Testing (UT)

The Ultrasonic Testing (UT) uses high-frequency sound waves to detect flaws inside a material. A transducer sends ultrasonic waves into the material, and any changes in the sound wave’s travel indicate internal defects. This method is highly accurate and can be used to detect both surface and subsurface defects.

• How it Works: Sound waves are transmitted into the material. The time it takes for the waves to reflect back to the sensor reveals any irregularities.
• Applications: Widely used in aerospace, construction, manufacturing, and pipeline inspection to detect cracks, voids, and other internal defects.
• Advantages: Can detect both surface and internal defects; suitable for various materials.
• Limitations: Requires skilled operators; challenging on materials with complex geometries.

Radiographic Testing (RT)

Radiographic Testing (RT) uses X-rays or gamma rays to capture images of the internal structure of materials. The radiation passes through the material and creates an image on film or a digital detector. Defects such as cracks or voids appear as dark spots on the image, making it easy to identify internal flaws.

• How it Works: X-rays or gamma rays are directed at the material, and the resulting image shows internal features, revealing any flaws.
• Applications: Common in welding inspections, aerospace, automotive manufacturing, and oil & gas pipelines.
• Advantages: Effective for detecting internal flaws, including cracks, voids, and porosity.
• Limitations: Expensive equipment, safety concerns due to radiation exposure, and requires skilled operators.

Magnetic Particle Testing (MT)

Magnetic Particle Testing (MT) is used to detect surface and slightly subsurface defects in ferromagnetic materials like iron, steel, and nickel. The material is magnetized, and iron particles are applied to the surface. Defects in the material cause disruptions in the magnetic field, which attract the iron particles, highlighting the location of flaws.

• How it Works: The material is magnetized, and iron particles are applied. Any magnetic flux leakage indicates the presence of defects.
• Applications: Common in industries that use ferromagnetic materials, such as automotive, aerospace, and manufacturing.
• Advantages: Simple and quick; effective at detecting surface cracks.
• Limitations: Only works on ferromagnetic materials; limited to surface and near-surface defects.

Image by researchgate

Liquid Penetrant Testing (PT)

Liquid Penetrant Testing (PT) is used to detect surface defects in non-porous materials. A liquid penetrant is applied to the surface, allowing it to seep into any cracks or voids. After excess penetrant is removed, a developer is applied to draw the penetrant out of the defects, making them visible to the inspector.

• How it Works: A penetrant is applied to the surface, and after removal of excess, a developer is used to reveal the location of any surface defects.
• Applications: Common in aerospace, automotive, and construction industries to detect cracks, pores, and other surface defects in metals, ceramics, and plastics.
• Advantages: Cost-effective, simple to perform, and works on a wide range of materials.
• Limitations: Only detects surface-level defects; requires thorough cleaning before and after the test.

Eddy Current Testing (ET)

Eddy Current Testing (ET) uses electromagnetic induction to detect flaws in conductive materials. A coil carrying alternating current is placed near the material, generating eddy currents. Any irregularities in the material disrupt the flow of eddy currents, indicating the presence of defects.

• How it Works: An alternating current is passed through a coil near the material, inducing eddy currents. Variations in the current flow indicate defects.
• Applications: Used in aerospace, automotive, and marine industries to inspect conductive materials like metals for surface and subsurface cracks.
• Advantages: Effective for surface and near-surface defect detection, no need for coupling medium.
• Limitations: Limited to conductive materials, sensitive to material thickness and conductivity.

Acoustic Emission Testing (AET)

Acoustic Emission Testing (AET) monitors the release of energy in the form of sound waves from materials under stress. Cracks, deformation, and corrosion emit acoustic signals that can be detected and analyzed to determine the condition of the material.

• How it Works: Sensors detect the acoustic waves emitted by the material as it undergoes stress. The location and magnitude of the sound waves reveal potential defects.
• Applications: Used for monitoring structural integrity in bridges, pressure vessels, pipelines, and storage tanks.
• Advantages: Real-time monitoring of defect development, ideal for detecting dynamic processes like crack propagation.
• Limitations: Difficult to interpret results; requires multiple sensors and careful calibration.

Thermographic Testing (TT)

Thermographic Testing (TT) uses infrared cameras to detect temperature variations on the surface of materials. Defects like cracks, voids, and corrosion can affect the heat flow in a material, creating thermal anomalies that can be captured and analyzed.

• How it Works: An infrared camera captures the heat distribution on the surface of a material. Changes in temperature patterns reveal hidden defects.
• Applications: Commonly used in electrical inspections, aerospace, building inspections, and material testing.
• Advantages: Non-contact, fast, and effective for detecting large surface areas.
• Limitations: Limited depth penetration; environmental conditions can affect results.

Comparison of Non-Destructive Testing Methods

Below is a comparison of the different types of Non-Destructive Testing, highlighting their key features, strengths, and limitations.

NDT Method	Best For	Advantages	Limitations
Visual Testing (VT)	Surface defects	Simple, low-cost, quick	Limited to surface defects; human error possible
Ultrasonic Testing (UT)	Internal and subsurface defects	High accuracy, works on thick materials	Requires skilled operators, challenging for complex shapes
Radiographic Testing (RT)	Internal flaws in welds, castings	Detailed images of internal defects	Expensive, safety concerns with radiation
Magnetic Particle Testing (MT)	Surface and near-surface cracks	Simple, quick, effective for ferromagnetic materials	Limited to ferromagnetic materials, surface defects only
Liquid Penetrant Testing (PT)	Surface cracks, voids	Cost-effective, easy to apply	Only detects surface defects, requires careful cleaning
Eddy Current Testing (ET)	Conductive materials	No need for couplants, detects surface and near-surface defects	Limited to conductive materials, sensitive to thickness and conductivity
Acoustic Emission Testing (AET)	Dynamic processes like crack growth	Real-time monitoring, detects internal defects	Complex setup, requires multiple sensors
Thermographic Testing (TT)	Surface and subsurface defects in large areas	Non-contact, fast, detects temperature variations	Limited depth penetration, sensitive to environmental conditions

Conclusion

Non-Destructive Testing (NDT) offers a wide range of methods for inspecting materials and components without causing any damage, making it essential for industries that require the highest levels of safety and quality assurance. From simple visual inspections to advanced techniques like ultrasonic and radiographic testing, each NDT method has its strengths and weaknesses depending on the material, application, and type of defect.

By understanding the different types of NDT and their applications, industries can select the most appropriate method to ensure product integrity, safety, and compliance with industry standards. Whether detecting surface-level cracks or deep internal flaws, NDT plays a critical role in maintaining the reliability and performance of critical structures and systems across various industries.
