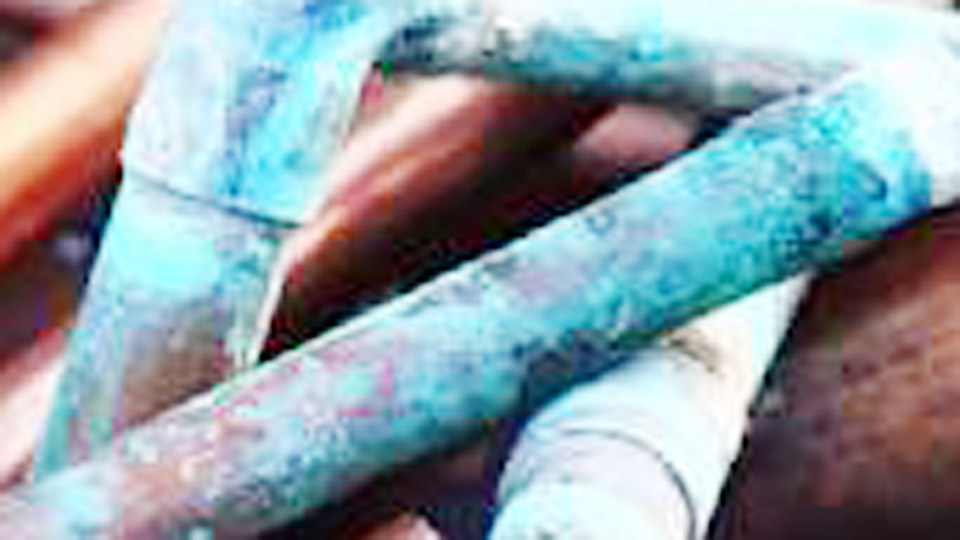

What Causes Copper Water Pipes to Corrode?

I used to think copper pipes were indestructible—until I discovered a small, pinhole leak behind my kitchen wall. At first, I thought it was just old age. But when I pulled back the drywall and found several green, crusty spots along the outside of the pipe, I knew something else was going on. That small leak turned into a full-blown learning experience about how and why copper pipes corrode.

After replacing sections, talking to plumbers, and testing my water, I realized corrosion isn’t just a time thing—it’s often a water chemistry thing. Too much acidity, high chlorine levels, stray electrical current… even how the pipes were installed can all play a role.

waterfilterguru

I’ll walk you through the real-world causes of copper pipe corrosion, based on what I’ve seen firsthand and what pros in the field taught me. If you’ve noticed stains, leaks, or just want to protect your plumbing investment, understanding the warning signs could save you thousands down the line.

Why Copper Pipe Corrosion Matters to Welders

Corrosion isn’t just a plumbing problem—it’s a welding one too. When I prep copper pipes for brazing or soldering, rust or pitting makes clean joints nearly impossible. Corrosion weakens the metal, leading to porous welds or leaks that fail under pressure. For DIYers fixing a home water line, corrosion means more repairs.

For hobbyists building custom projects, it can ruin a polished finish. For pros like me working on commercial HVAC systems, it’s a costly issue that can delay jobs or compromise safety. Understanding what causes copper water pipes to corrode helps you prevent it and keep your projects solid.

What Is Copper Pipe Corrosion?

Corrosion is when copper reacts with its environment, forming copper oxide or carbonate—think of that green patina you see on old pipes. This reaction eats away at the metal, causing pitting, pinholes, or thinning that weakens the pipe. In plumbing, corrosion can release copper into drinking water, cause leaks, or reduce water pressure.

I’ve cut open corroded pipes and found pits so deep they nearly punched through. For welders, this means a weaker base material that’s harder to join and more likely to fail under stress.

Common Causes of Copper Pipe Corrosion

Copper is tough, but it’s not immune to corrosion. Here’s what I’ve seen cause trouble in my years of working with copper pipes.

Acidic Water (Low pH)

Water with a low pH (below 7) is acidic and eats away at copper. I’ve seen this in homes with well water, where the pH was around 6.5, causing blue-green stains in sinks and pinhole leaks. Acidic water strips the protective oxide layer on copper, exposing it to further damage. Test your water’s pH with a kit from a hardware store to catch this early.

High Dissolved Oxygen

Oxygen in water speeds up oxidation, forming copper oxide. Hot water lines are especially vulnerable because heat increases oxygen’s reactivity. I once repaired a hot water line where high dissolved oxygen caused pitting in just a few years. Running water regularly and insulating hot lines can help reduce this.

Hard Water (High Mineral Content)

Hard water, loaded with calcium and magnesium, leaves mineral deposits that stress copper pipes. In a commercial job, I saw limescale buildup inside a pipe that triggered pitting corrosion. A water softener can fix this, but it’s a pain if you don’t catch it early.

High Water Velocity

Fast-moving water erodes the pipe’s inner surface, a problem called erosion-corrosion. This happens in undersized pipes or systems with high-pressure pumps. I’ve seen it in recirculating hot water systems where the flow was too fast—over 8 feet per second for cold water or 5 feet per second for hot. Proper pipe sizing and flow control prevent this.

Microbial Activity (Biocorrosion)

Bacteria like sulfate-reducing bacteria create corrosive byproducts that attack copper. I worked on a well-water system where microbial corrosion caused green stains and pitting in just two years. Low disinfection levels in soft water make this worse. Regular water testing and chlorination can keep bacteria in check.

Stray Electrical Currents

Improper electrical grounding can turn copper pipes into an anode, causing electrochemical corrosion. I’ve seen this in older homes where appliances were grounded to pipes, leading to pinhole leaks. Check for stray currents with a multimeter and ensure proper grounding to avoid this.

Excess Flux Residue

When soldering or brazing, leftover flux is corrosive if not cleaned off. I made this mistake early in my career—left flux on a soldered joint, and it corroded within months. Always flush the system and wipe joints clean with a damp rag after soldering.

Galvanic Corrosion

Connecting copper to dissimilar metals like steel or aluminum creates a galvanic reaction, where the less noble metal corrodes. I’ve seen copper pipes corrode near iron fittings in old homes. Use dielectric unions or brass fittings to isolate metals and prevent this.

Exposure to Moisture and Air

External corrosion happens when pipes are exposed to damp environments, like basements or crawlspaces. Moisture and oxygen form copper carbonate—the green patina. I’ve repaired pipes in damp walls where insulation could’ve prevented corrosion. Keep pipes dry and insulated.

Here’s a table summarizing these causes:

Cause	Description	Prevention Tips
Acidic Water	Low pH eats away copper	Test pH, use neutralizers
High Dissolved Oxygen	Oxygen accelerates oxidation	Insulate hot lines, run water
Hard Water	Mineral deposits stress pipes	Install water softener
High Water Velocity	Fast flow erodes pipe	Size pipes correctly, control flow
Microbial Activity	Bacteria produce corrosive byproducts	Test water, chlorinate
Stray Electrical Currents	Electrochemical corrosion from grounding	Check grounding, use dielectric unions
Excess Flux Residue	Corrosive flux left after soldering	Clean joints thoroughly
Galvanic Corrosion	Reaction with dissimilar metals	Use brass or dielectric fittings
Moisture and Air	External patina from damp environments	Insulate, keep pipes dry

Types of Copper Pipe Corrosion

Corrosion shows up in different ways, each with unique challenges for welders.

Uniform Corrosion

This is a slow, even deterioration across the pipe’s surface. It’s less common but can thin pipes over decades. I’ve seen it in old homes with acidic well water, where pipes were uniformly weakened but still weldable with care.

Pitting Corrosion

Pitting creates small, deep holes that lead to pinhole leaks. It’s the most common issue I’ve dealt with, especially in systems with microbial activity or high oxygen. Pits make brazing tricky because the metal’s too weak for a strong joint.

Erosion-Corrosion

High water velocity or turbulence (like at elbows) strips the protective oxide layer, causing smooth wear or pits. I’ve repaired elbows in hot water systems where flow rates were too high, requiring larger pipes to fix.

Microbial Influenced Corrosion (MIC)

Bacteria form biofilms that produce acids, causing pitting or blue-green stains. I saw this in a soft-water HVAC system—green gunk inside the pipes made brazing a nightmare. Chlorination and water treatment are key.

Why Corrosion Affects Welding

Corroded copper is a welder’s enemy. Pits and thinning weaken the metal, making it hard to get a clean, strong joint. I’ve tried brazing pitted pipes, and the filler wouldn’t flow properly, leading to leaks. Corrosion also contaminates the weld pool, causing porosity or cracks.

For soldering, flux struggles to stick to corroded surfaces, resulting in weak bonds. Always clean or replace corroded sections before welding to ensure a solid joint.

How to Identify Copper Pipe Corrosion

Spotting corrosion early saves headaches. Here’s what I look for:

• Blue-Green Stains: Patina or copper carbonate on pipes or fixtures indicates corrosion. I’ve seen this in sinks and showers.
• Pinhole Leaks: Tiny leaks, often at elbows or joints, signal pitting. I found one in a basement pipe that caused mold damage.
• Reduced Water Pressure: Corrosion buildup narrows pipes, slowing flow. I’ve noticed this in old homes with limescale.
• High Copper Levels: A metallic taste or blue water means copper’s leaching. Test with a home water kit if you suspect this.

Preventing Copper Pipe Corrosion

Prevention is better than repair. Here’s how I keep pipes corrosion-free:

Test Water Quality: Use a pH test kit (available at hardware stores) to check for acidity. Aim for a pH of 7–8.5. I test my well water yearly.

Install a Water Softener: Hard water causes limescale, so a softener helps. I added one to a client’s home and saw less corrosion.

Use Proper Pipe Sizing: Follow the Copper Development Association’s guidelines—max 8 fps for cold water, 5 fps for hot (140°F or less), 2–3 fps above 140°F. I resized pipes on a hot water system to stop erosion.

Insulate Pipes: Foam insulation prevents condensation and external corrosion. I wrap pipes in damp basements.

Clean After Soldering: Wipe flux off with a warm, soapy rag or flush the system. I learned this after flux corroded a joint.

Use Dielectric Unions: For copper-to-iron connections, dielectric fittings prevent galvanic corrosion. I use these on water heaters.

Add Corrosion Inhibitors: Orthophosphate treatments protect pipes. I’ve seen utilities add this to reduce pitting.

Check Grounding: Ensure appliances aren’t grounded to pipes. I use a multimeter to test for stray currents.

Regular Inspections: Check pipes yearly for green patina or leaks. I caught a pinhole early during a routine check, saving a big repair.

Fixing Corroded Copper Pipes

If corrosion’s already set in, here’s how I handle it:

Clean Minor Corrosion: For surface patina, I use a baking soda paste or vinegar with a soft brush, then rinse and dry. This worked on a lightly corroded water line.

Repair Pinhole Leaks: For small leaks, I solder a patch or replace the section. I fixed a pinhole in an elbow with a new fitting and 95/5 solder.

Replace Damaged Sections: For severe pitting, cut out the bad section with a pipe cutter and braze in a new piece. I replaced a 3-foot section of pitted pipe in an HVAC system.

Consider PEX or CPVC: For heavily corroded systems, I sometimes switch to plastic piping like PEX, which resists corrosion. I repiped a home with PEX after repeated leaks.

Consult a Pro: For complex issues, like microbial corrosion, a plumber or water treatment specialist can analyze water chemistry and recommend fixes.

Real-World Welding Scenarios

Corrosion affects welders in these cases:

• DIY Repairs: Fixing a leaky copper water line in a home. I cleaned corrosion with vinegar before soldering a new fitting.
• Hobbyist Projects: Building a copper sculpture. I avoided corroded pipes to ensure clean brazed joints for a polished look.
• Professional Jobs: Brazing HVAC lines. I replaced a pitted section to prevent refrigerant leaks in a commercial unit.

Advanced Tips for Welders

Take your corrosion prevention to the next level:

Use Nitrogen Purge: When brazing refrigeration lines, flow nitrogen to prevent internal oxidation. I do this on every HVAC job.

Ream Pipe Ends: Smooth cut ends with a reaming tool to avoid turbulence and erosion-corrosion. I learned this after a rough cut caused pitting.

Monitor Water Chemistry: Test for total dissolved solids (TDS) and chlorides, which accelerate corrosion. I use a TDS meter for clients with well water.

Apply Protective Coatings: For external corrosion, I coat exposed pipes with rust-inhibiting primer after cleaning.

Follow ASTM B828: For soldering, use the right amount of flux and clean thoroughly, per ASTM standards, to avoid residue corrosion.

When to Replace Copper Pipes

If corrosion is widespread—multiple pinholes, heavy pitting, or frequent leaks—replacement is smarter than patching. I’ve repiped homes with PEX when copper corrosion was too severe, especially in well-water systems. PEX is corrosion-resistant, flexible, and cheaper than copper.

For critical systems like HVAC, I stick with new copper but ensure proper water treatment to prevent recurrence. Weigh the cost of repairs against replacement for your situation.

Maintaining Your Plumbing System

Keep your pipes in top shape:

• Flush the System: Run water through all fixtures monthly to prevent stagnation.
• Inspect Annually: Check for green patina, leaks, or pressure drops.
• Clean Flux Residue: After soldering or brazing, flush pipes to remove corrosive flux.
• Test Water Regularly: Use home kits to monitor pH, TDS, and copper levels.

I learned to flush systems after a client’s pipes corroded from leftover flux—now it’s a standard step.

Conclusion

Understanding what causes copper water pipes to corrode is crucial for welders, DIYers, and hobbyists. Acidic water, high oxygen, hard water, fast flow, bacteria, stray currents, flux, dissimilar metals, and moisture all play a role. By testing water, sizing pipes right, insulating, and cleaning properly, you can prevent corrosion and keep your pipes strong for decades.

For welders, clean pipes mean better joints and fewer headaches. Grab a pH kit, inspect your pipes, and tackle corrosion head-on. Your welds—and your wallet—will thank you.

FAQ

How do I know if my copper pipes are corroding?

Look for blue-green stains in sinks, pinhole leaks, reduced water pressure, or a metallic taste in water. I check pipes visually and test water with a home kit to confirm high copper levels.

Can I weld corroded copper pipes?

You can, but it’s tough. Pits and corrosion weaken the metal, causing poor filler flow or porous welds. I clean minor corrosion with vinegar or replace heavily pitted sections before brazing.

How do I prevent corrosion in copper pipes?

Test water for pH and minerals, install a water softener, use dielectric unions, insulate pipes, and clean flux after soldering. I also check grounding to avoid stray currents.

Is it safe to drink water from corroded copper pipes?

High copper levels (above 1.3 mg/L, per EPA) can cause stomach issues or, rarely, liver damage. I test water if I see blue stains and consult a plumber for fixes.

Should I replace corroded copper pipes with PEX?

If corrosion is severe—multiple leaks or heavy pitting—PEX is a corrosion-resistant option. I switched a client’s system to PEX after repeated copper failures, and it’s held up great.
