Friction Stir Welding (FSW) is an innovative solid-state joining process that welds materials without melting them. Developed in 1991 by The Welding Institute (TWI), FSW is primarily used for welding metals, particularly those that are difficult to join using traditional fusion welding techniques, such as aluminum, magnesium, and copper. This process is widely adopted in industries such as aerospace, automotive, marine, and rail transportation, where lightweight, high-strength joints are essential.
Unlike conventional welding methods, which rely on melting the material and using filler materials, friction stir welding operates below the materials melting point, creating stronger and defect-free joints. In this blog post, we will explore how friction stir welding works, its advantages, disadvantages, and its comparison with other welding techniques.

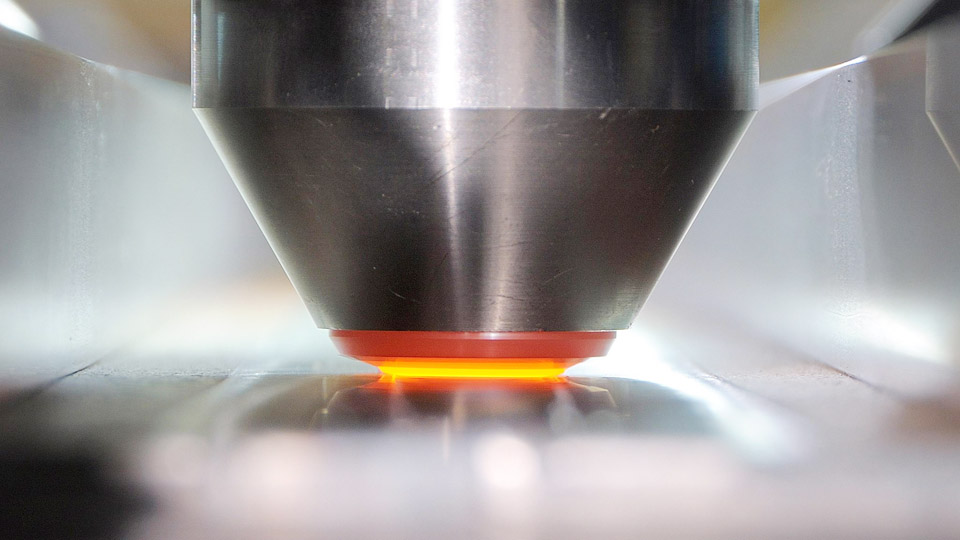

Image by twi-global
How Does Friction Stir Welding Work?
Friction Stir Welding operates by generating frictional heat through the rotation of a non-consumable tool. This tool has a specially designed pin and shoulder that are applied to the materials being joined. The process can be broken down into several stages that result in a high-quality weld.
Tool Insertion
The process begins with the insertion of the rotating tool into the material at the seam between the two pieces being joined. The tool consists of a cylindrical shoulder and a protruding pin, which is also known as the probe. The pin is designed to penetrate the workpieces at the joint, while the shoulder makes contact with the surface of the material.
Frictional Heating
As the tool rotates, the friction between the tools shoulder and the surface of the material generates localized heat. This heat softens the material in the welding zone but does not melt it. The material around the pin becomes plasticized, allowing it to deform without liquefying. The frictional heating is highly localized, which prevents excessive heat buildup and reduces thermal distortion.
Material Stirring
Once the material is sufficiently softened, the tool moves along the joint, stirring the plasticized material from both workpieces. The pin mixes the material on either side of the seam, creating a mechanical bond between them. The shoulder applies downward pressure, ensuring that the softened material flows evenly around the pin, forming a consistent weld.
Weld Formation
As the tool advances, the material behind it cools and solidifies, forming a high-strength bond between the two workpieces. The result is a solid-state joint, free of typical fusion welding defects like porosity or cracking. The solidified material retains much of its original properties, which enhances the strength of the weld.
Advantages of Friction Stir Welding
Friction stir welding offers numerous advantages over traditional welding techniques, especially for materials like aluminum, which can be challenging to weld using conventional methods. Below are some of the key benefits of FSW:
High-Strength Welds
One of the most significant advantages of friction stir welding is the ability to create strong, durable welds. Since the material is not melted during the process, the welded joint retains much of the base materials original mechanical properties. This results in a stronger, more reliable bond compared to fusion welding, which can introduce weaknesses due to melting and solidification.
Minimal Thermal Distortion
The localized nature of the heat generated during FSW results in minimal thermal distortion. Unlike conventional welding, which can cause significant warping or shrinking due to the high heat input, FSW operates below the materials melting point, reducing the risk of distortion and residual stress.

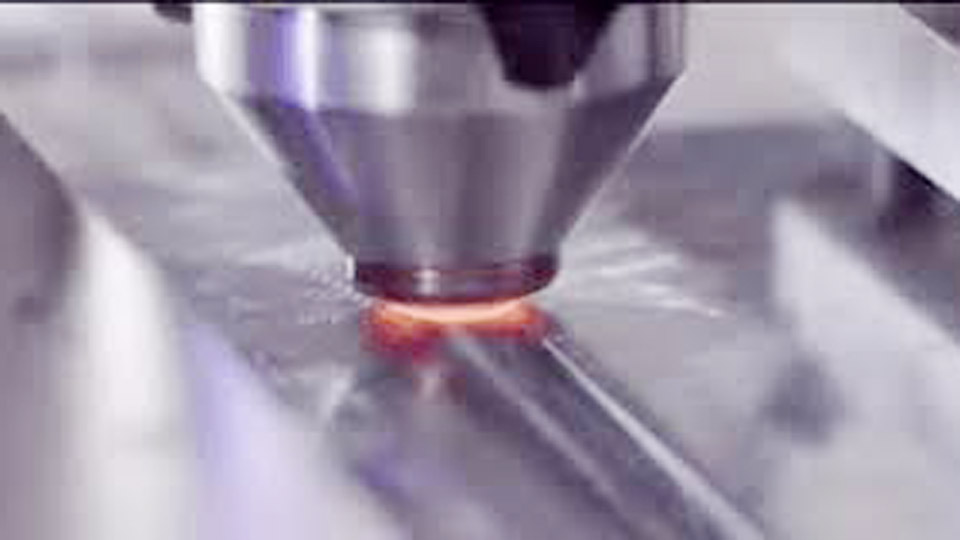

Image by megastir
No Filler Material or Shielding Gas Needed
FSW does not require filler materials, flux, or shielding gases, making it a cleaner and more cost-effective welding method. This reduces the need for additional materials and equipment, resulting in lower production costs and a more environmentally friendly process.
No Welding Defects
Friction stir welding eliminates many of the common defects associated with fusion welding methods, such as porosity, cracking, and incomplete fusion. The solid-state nature of FSW ensures that the material remains intact without forming gas bubbles or voids, resulting in a defect-free weld.
Dissimilar Material Joining
FSW is capable of joining dissimilar materials that would otherwise be challenging to weld using traditional methods. This makes it an ideal solution for applications that require hybrid materials, such as aluminum and copper or aluminum and steel, which are often used in industries seeking to reduce weight and improve efficiency.
Disadvantages of Friction Stir Welding
While friction stir welding has many advantages, there are also limitations and challenges associated with the process:
High Initial Equipment Cost
The specialized equipment required for friction stir welding can be expensive. FSW machines need precise control systems to manage the rotation speed, pressure, and movement of the tool. This can lead to higher upfront costs compared to conventional welding methods, especially for small-scale operations.
Limited to Certain Materials
Friction stir welding is most effective for materials with good plasticity, such as aluminum, magnesium, and copper. It is less effective for materials with high melting points, such as steel or titanium, although advances are being made to extend the use of FSW to these materials. For now, other methods like laser or arc welding may be required for these tougher materials.
Surface Marks and Finishing
The welding process leaves surface marks or visible indentations due to the tools interaction with the material. While these marks do not affect the strength of the weld, they may require additional finishing, especially for applications where aesthetics are important.
Thickness Limitation
FSW works best for materials with a thickness range between 1.5mm and 75mm. Welding thicker materials requires specialized tools and equipment, which may not always be practical or cost-effective.
Applications of Friction Stir Welding
Friction stir welding is widely used in industries where strong, reliable welds are critical, and weight reduction is a priority. Below are some of the key applications:
Aerospace Industry
The aerospace industry was one of the first to adopt friction stir welding due to its ability to produce strong, lightweight joints in aluminum. FSW is used to weld fuselage panels, wings, fuel tanks, and other critical components where structural integrity is paramount. The process reduces the overall weight of the aircraft while maintaining high strength and durability.
Automotive Industry
FSW is increasingly used in the automotive industry to join aluminum components such as car doors, hoods, chassis, and other structural parts. The process helps manufacturers produce lighter, more fuel-efficient vehicles without compromising safety or performance. FSW is particularly beneficial for electric vehicles, where reducing weight is crucial for improving battery efficiency and range.
Shipbuilding Industry
In the shipbuilding industry, friction stir welding is used to join aluminum hulls, decks, and other large components. The ability to create long, continuous welds with minimal distortion and high strength makes FSW an ideal solution for building lightweight, corrosion-resistant ships and vessels.
Rail Transportation
Friction stir welding is used in the production of high-speed trains and railway carriages, where lightweight materials and strong joints are critical for safety and performance. FSW enables the joining of large aluminum panels and frames, reducing weight and improving the overall structural integrity of rail vehicles.
Electrical and Electronics Industry
FSW is used in the electronics industry for joining dissimilar materials, such as aluminum and copper, in battery enclosures, heat sinks, and other components. The process provides strong, reliable joints without the need for excessive heat, making it ideal for sensitive electronic components.
Comparison Between Friction Stir Welding and Conventional Welding
To better understand the advantages of FSW, its helpful to compare it with traditional welding techniques like MIG (Metal Inert Gas) welding and TIG (Tungsten Inert Gas) welding.
| Aspect | Friction Stir Welding (FSW) | MIG Welding | TIG Welding |
|---|---|---|---|
| Heat Input | Low heat input, no melting | High heat, material is melted | High heat, material is melted |
| Material State | Solid-state process, no melting involved | Fusion welding, material melts | Fusion welding, material melts |
| Filler Material | No filler material required | Requires filler wire | Requires filler rod |
| Defects | No porosity or cracking | Prone to defects such as porosity | Can have defects if not done properly |
| Thermal Distortion | Minimal distortion due to low heat | High risk of distortion | High risk of distortion |
| Suitability | Best for lightweight metals like aluminum and magnesium | Versatile, works on a wide range of metals | Versatile, works on a wide range of metals |
| Speed of Welding | Fast for long, continuous welds | Moderate to fast | Slower, requires precise control |
| Cost | Higher initial equipment cost | Lower equipment cost | Lower equipment cost |
| Operator Skill | Requires skilled operation and CNC programming | Requires trained operator | Requires highly skilled operator |
Conclusion
Friction Stir Welding (FSW) is an advanced welding technology that offers numerous benefits over traditional fusion welding techniques. By using frictional heat and mechanical stirring to join materials without melting them, FSW produces high-quality, defect-free welds that are stronger and more reliable than conventional methods.
This makes FSW ideal for industries like aerospace, automotive, and shipbuilding, where lightweight materials and structural integrity are crucial.
While FSW has some limitations, such as higher initial equipment costs and a restricted range of materials, its advantages in terms of strength, minimal thermal distortion, and defect-free welds make it a valuable tool for modern manufacturing processes.
