What Is IGBT Inverter Welding Machine and How It Works

Imagine walking into a fabrication shop where two welders work side by side. One struggles with a heavy transformer machine that overheats and produces uneven arcs.

The other, using a compact inverter welder, finishes cleaner welds faster and with less power. The difference lies in one key technology: the IGBT inverter.

Understanding what is IGBT inverter welding machine reveals why modern workshops are replacing older, bulky units with these efficient, portable systems.

The IGBT (Insulated Gate Bipolar Transistor) acts as the heart of the inverter, rapidly switching currents to deliver smoother, more stable arcs. This precision results in higher welding quality and improved control over the molten pool.

According to welding equipment trends, inverter-based machines are up to 30–40% more energy-efficient compared to traditional transformer models.

They also weigh nearly 60% less, making them ideal for both shop use and fieldwork. This combination of power, portability, and performance is redefining modern welding standards.

Yet the true strength of IGBT inverter welders lies in their versatility. They support multiple processes—MMA, TIG, and MIG—offering welders flexibility across different metals and conditions.

Their fast response and consistent arc reduce spatter, improve bead appearance, and lower rework time.

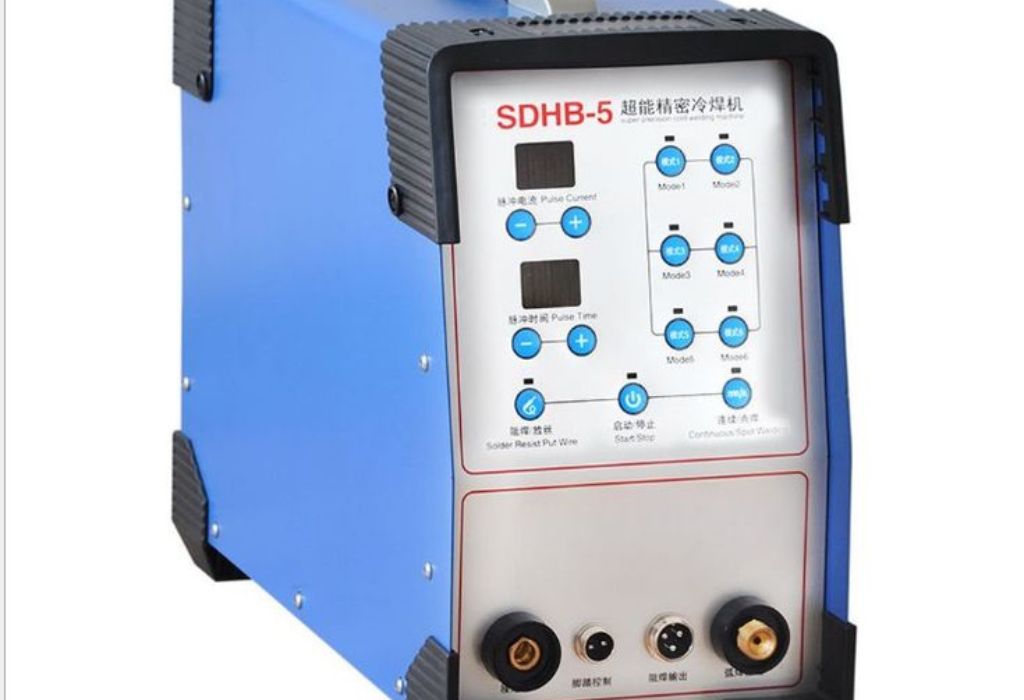

What Is IGBT Technology in a Welding Machine

To understand modern welding innovation, it’s important to know what is IGBT inverter welding machine and how the technology behind it reshapes performance.

IGBT stands for Insulated Gate Bipolar Transistor, a semiconductor device that combines the efficiency of a MOSFET and the power handling of a traditional transistor.

In simple terms, IGBTs act as high-speed electronic switches. They control how electricity flows inside the welder, turning current on and off thousands of times per second.

This fast switching creates a steady, controlled output that allows precise heat regulation and smoother arc behavior.

Compared to older transformer-based welders, IGBT machines offer more control, cleaner welds, and higher efficiency.

This technology also enables lightweight, compact designs without sacrificing power. Because IGBT systems switch at very high frequencies, they can use smaller transformers, reducing weight and size significantly.

A traditional welding machine might weigh over 40 kilograms, while an IGBT inverter welder with similar power can weigh less than 10.

Another major benefit is energy efficiency. The reduced power loss during switching means more of the input energy is converted into welding power rather than wasted as heat.

This results in lower electricity consumption and better performance consistency, even on long work sessions.

Overall, IGBT technology bridges power and precision. It has become the industry standard for portable welders, allowing professionals and beginners alike to achieve strong, stable, and clean welds with less effort.

Q: What does IGBT stand for in welding?
A: It stands for Insulated Gate Bipolar Transistor, a device that controls power efficiently within the welding inverter.

Q: Why are IGBT welders better than transformer welders?
A: They are lighter, more energy-efficient, and provide smoother arcs with improved control.

Q: Does IGBT technology improve weld quality?
A: Yes, its fast switching creates stable current flow, resulting in cleaner welds with fewer defects.

Q: Can IGBT welders handle all metals?
A: Most models can weld mild steel, stainless steel, and other common materials with proper settings.

Q: Are IGBT machines suitable for fieldwork?
A: Absolutely. Their compact size, energy efficiency, and consistent performance make them ideal for mobile welding jobs.

How IGBT Inverter Welding Machines Work

Once the basic concept is clear, understanding what is IGBT inverter welding machine becomes much easier when you see how it actually works.

Inside every IGBT inverter welder, electrical energy follows a controlled path—from input to arc output—passing through several critical stages designed for efficiency and precision.

The process begins with AC-to-DC conversion. Incoming alternating current from the power source is first rectified into direct current using diodes.

This conversion is essential because the inverter circuit and IGBT transistors operate best with steady DC voltage. The filtered DC power then enters the inverter stage.

In the inverter stage, IGBT transistors rapidly switch the DC power on and off at extremely high frequencies—often between 20,000 and 100,000 times per second.

This high-speed switching generates high-frequency AC power, allowing the welder to use smaller transformers for voltage adjustment. That’s why inverter welders are lighter and more compact than traditional transformer machines.

Afterward, the high-frequency current is stepped down through a miniature transformer, reducing voltage while increasing current to match welding requirements.

The current then passes through a rectifier and output filter, converting it back to a smooth, stable DC used to create a strong and consistent welding arc.

Finally, the control system continuously monitors arc stability, output current, and thermal conditions. This closed-loop feedback ensures the machine adjusts instantly to fluctuations, maintaining optimal performance and preventing overheating.

The result is a clean, energy-efficient welding process with precise control over penetration and bead shape—ideal for both light fabrication and heavy industrial use.

Q: How does an IGBT inverter welding machine convert power?
A: It rectifies AC to DC, switches it at high frequency, then transforms and filters it into stable welding current.

Q: Why is high-frequency switching important?
A: It allows smaller components, better control, and smoother welding arcs.

Q: What role does the control board play?
A: It monitors output and temperature, adjusting power for consistent arc stability.

Q: Does an IGBT welder use more electricity?
A: No, it uses less—thanks to higher conversion efficiency and minimal energy loss.

Q: Why does the arc feel smoother on inverter welders?
A: Because rapid electronic switching keeps voltage steady and eliminates sudden current drops.

Advantages and Limitations of IGBT Inverter Welding Machines

When evaluating what is IGBT inverter welding machine, it’s essential to understand not just how it works, but also why it has become so widely used in both professional and hobby welding.

Like any technology, IGBT welders come with clear advantages — and a few limitations worth noting before use.

Advantages of IGBT Inverter Welders

One of the biggest advantages is efficiency. IGBT-based welders convert electrical energy with very little loss, often achieving efficiencies of up to 85–90%. This means less wasted power, lower electricity costs, and longer operation on smaller generators.

They also deliver a smoother, more stable arc. Rapid current control minimizes spatter, improves puddle control, and allows for cleaner welds, especially when working with thinner materials.

Portability is another standout feature. These welders are compact and lightweight, making them ideal for on-site or remote jobs. Many models weigh less than 10 kg, allowing easy transportation without compromising performance.

IGBT machines also feature advanced controls, such as digital displays and auto-adjustment functions. These help welders fine-tune voltage, current, and arc force with precision, improving consistency and reducing error.

Finally, they offer multi-process capability — a single machine can handle MMA, TIG, and even MIG welding with compatible attachments, providing flexibility for different projects.

Limitations of IGBT Inverter Welders

While powerful, IGBT welders are more sensitive to moisture, dust, and voltage fluctuations compared to heavy-duty transformer machines. Their internal circuits can be damaged if exposed to extreme environments or poor power quality.

Another limitation is maintenance complexity. Although durable, repairs require skilled technicians and specialized components, which can increase service costs.

Despite these minor drawbacks, the advantages far outweigh the limitations for most users — especially those who value efficiency, precision, and portability.

Q: What makes IGBT welders more efficient than transformer types?
A: They minimize energy loss through high-speed electronic switching, converting more input power into usable welding current.

Q: Are IGBT welders suitable for beginners?
A: Yes. Their stable arcs and easy-to-adjust controls make them beginner-friendly and safe to operate.

Q: Can they handle heavy-duty welding tasks?
A: Absolutely. Many industrial-grade models are designed to weld thick materials with continuous duty cycles.

Q: What environments should be avoided?
A: Very humid, dusty, or unstable power environments can shorten their lifespan.

Q: Are IGBT welders cost-effective in the long run?
A: Yes. Their energy efficiency and reduced rework needs lower overall operational costs over time.

Using an IGBT Inverter Welding Machine — Setup and Safety

Knowing what is IGBT inverter welding machine is only half the journey. To achieve consistent, high-quality welds, proper setup and safety practices are essential. Even the most advanced technology performs poorly if the environment, parameters, or protective gear are ignored.

Workspace and Safety Preparation

Start by preparing a clean and organized workspace. Remove any flammable materials, ensure good ventilation, and maintain a dry, stable surface.

Fumes generated during welding can be hazardous, so adequate airflow or an exhaust fan is important to keep the air safe to breathe.

Wear the correct personal protective equipment (PPE) every time. A welding helmet with an auto-darkening filter protects your eyes from ultraviolet light, while flame-resistant gloves, a welding jacket, and leather boots protect against sparks and heat. Safety glasses and ear protection should also be used for grinding or chipping operations.

Machine Setup and Power Check

Inspect your IGBT inverter welding machine before use. Check that all connections are tight and cables are free from cracks or wear. Attach the ground clamp to a clean, bare section of the metal workpiece — a poor connection can cause arc instability and uneven current flow.

Ensure that the power supply matches your machine’s voltage rating. Most portable inverters operate on 110V or 220V, but fluctuating or weak power can damage the internal circuits. Use heavy-duty extension cords and avoid overloading sockets.

Adjusting Parameters and Preparing the Workpiece

Once powered on, set the correct amperage and polarity based on your electrode type or welding process. Refer to the electrode packaging or manufacturer’s chart for recommended settings.

Clean the workpiece thoroughly by removing oil, rust, or paint. A clean surface allows deeper penetration and prevents defects like porosity.

Finally, position your machine close enough to the work area for easy control but far enough to prevent exposure to sparks or slag. Once these steps are complete, you’re ready to begin welding safely and efficiently.

Q: Why is ventilation important when using an inverter welder?
A: It helps remove harmful fumes and prevents overheating during long welding sessions.

Q: What PPE is mandatory for inverter welding?
A: A welding helmet, gloves, flame-resistant clothing, leather boots, and safety glasses.

Q: How do you prevent electric shock during setup?
A: Always ensure dry conditions, intact cables, and proper grounding on bare metal.

Q: What causes arc instability in inverter welders?
A: Loose ground clamps, damaged cables, or contaminated work surfaces.

Q: Why clean the metal before welding?
A: Dirt, oil, or rust interferes with current flow and leads to weak or porous welds.

Executing the Weld — Step-by-Step Guide

Once the setup is ready, it’s time to put the machine to work. Executing the weld correctly is the stage where knowledge meets skill, and understanding what is IGBT inverter welding machine helps ensure every movement produces a strong, clean joint.

Start by striking the arc. Hold the electrode about 15–30 degrees from the workpiece and either tap or lightly drag it across the surface until the arc ignites.

Once lit, maintain a short, consistent arc length, roughly equal to the diameter of the electrode. This balance keeps the heat stable and prevents excessive spatter or undercutting.

Move smoothly along the joint, watching the weld puddle closely. The molten pool should stay centered and even. If it starts to wobble or spread too wide, adjust the travel speed or current slightly. A consistent rhythm creates a uniform bead with smooth ripples.

For multi-pass welds, allow each layer to cool naturally before cleaning off the slag with a chipping hammer and wire brush.

This prevents trapped impurities and ensures solid fusion between layers. If welding vertically or overhead, lower the amperage slightly to maintain better control and minimize sagging.

IGBT inverter welders excel here — their rapid current response allows fine control over the puddle, making them ideal for detailed work. The stable arc and precise power adjustment reduce the chances of electrode sticking and make every bead more predictable.

Q: How do you start an arc with an IGBT inverter welder?
A: Tap or scratch the electrode on the surface until the arc forms, then lift slightly to maintain a stable connection.

Q: What’s the ideal arc length for beginners?
A: Keep it about equal to the electrode’s diameter for balanced penetration and minimal spatter.

Q: How do inverter welders help control the puddle?
A: Their fast power regulation maintains consistent current, resulting in smoother puddle control.

Q: Why should slag be removed between passes?
A: Leftover slag can trap impurities, weaken fusion, and cause weld defects.

Q: How do you handle vertical or overhead welding?
A: Reduce current slightly and maintain a tight, steady arc to prevent the molten metal from sagging.

Troubleshooting and Common Mistakes

Even the best welders encounter problems at some point. Knowing what is IGBT inverter welding machine is only useful if you can also recognize and fix common issues that affect weld quality. Troubleshooting early prevents wasted materials, rework, and equipment strain.

Common Welding Problems and Their Causes

The most frequent issue is arc instability. This usually happens when the ground clamp is loose, cables are damaged, or the power source is inconsistent. Always check that the clamp is connected to clean, bare metal and that all terminals are tight before welding.

Excessive spatter is another widespread problem. It’s often caused by high amperage, long arc length, or dirty metal.

Lowering current and maintaining a consistent, short arc can reduce spatter significantly. Cleaning the workpiece thoroughly before welding also helps maintain a stable arc.

A third issue is porosity, where tiny gas bubbles form inside the weld bead. This typically occurs when the metal is contaminated with oil, paint, or rust. Using dry electrodes and ensuring proper ventilation will eliminate moisture and gas buildup.

Some welders also face poor penetration or weak welds. This can result from low current settings or fast travel speed. Increasing amperage slightly and maintaining steady movement helps achieve full fusion between metals.

Finally, machine overheating can occur when duty cycle limits are ignored. IGBT welders are efficient, but even they need cooling intervals. Respecting these limits extends the life of the internal components and ensures consistent performance.

Q: Why does the arc keep flickering or cutting out?
A: The ground clamp may be loose, or the input power could be fluctuating. Tighten all connections and check power stability.

Q: What causes too much spatter?
A: Using too high amperage, dirty surfaces, or maintaining a long arc length.

Q: Why is there porosity in my weld?
A: Moisture, rust, or paint contamination introduces gas bubbles into the weld pool.

Q: How can I avoid weak weld penetration?
A: Use proper current settings, keep a short arc, and move steadily along the joint.

Q: What should I do if the welder overheats?
A: Pause welding and let the machine cool down before continuing. Always observe its rated duty cycle.

Best Practices and Future Trends

Mastering what is IGBT inverter welding machine goes beyond understanding its parts and functions. To consistently produce high-quality welds, welders must adopt best practices that improve performance, extend equipment life, and enhance workplace safety.

Additionally, keeping an eye on future innovations ensures you stay ahead in the rapidly evolving world of welding technology.

Best Practices for Using IGBT Inverter Welders

The first rule of professional welding is routine maintenance. Keep the machine clean and dust-free by blowing out vents and wiping surfaces after each use. Inspect cables, ground clamps, and connectors regularly—small issues like corrosion or loose terminals can quickly lead to arc instability or overheating.

Monitor your duty cycle carefully. IGBT inverters are efficient, but overuse beyond the rated limit can cause thermal shutdowns and reduce component life. Allow the unit to rest as recommended between cycles.

Maintain proper technique during every weld. Use a short, consistent arc length, control travel speed, and clean your workpiece thoroughly. These small details prevent defects like spatter, undercut, or porosity, ensuring strong and visually appealing welds.

Another vital habit is logging parameters. Record amperage, electrode type, material thickness, and polarity for each project. These notes act as a personal reference that helps troubleshoot future problems and repeat successful welds consistently.

Finally, prioritize safety and ventilation. Always wear proper PPE and ensure airflow is adequate, especially when working in enclosed areas. This not only protects your health but also prevents weld contamination from trapped gases or fumes.

Future Trends in IGBT Inverter Welding Machines

The next generation of IGBT welders is becoming smarter and more adaptive. Many modern units now feature digital displays, synergic controls, and automatic parameter adjustment that optimize voltage and current in real time.

Emerging models use AI-assisted feedback systems to monitor arc stability and automatically correct fluctuations. Compact designs with integrated cooling and battery-powered systems are also becoming popular, enabling true mobility for field welders.

As these advancements continue, the welding industry is shifting toward greater precision, portability, and energy efficiency. The IGBT inverter welder remains at the heart of this transformation—bridging the gap between human skill and intelligent automation.

Q: How often should I service my IGBT inverter welder?
A: Regular inspection and cleaning after every few uses are ideal; a professional service check once a year is recommended.

Q: What’s the easiest way to improve weld quality?
A: Keep the workpiece clean, maintain a steady hand, and adjust parameters gradually.

Q: How can I extend the life of my inverter welder?
A: Respect the duty cycle, store it in a dry place, and clean vents to prevent dust buildup.

Q: What’s new in inverter welding technology?
A: Digital controls, synergic programs, and AI-based arc regulation are enhancing precision and ease of use.

Q: Will portable battery-powered welders replace plug-in models?
A: They’re growing in popularity for on-site work, but plug-in units still dominate heavy fabrication due to higher power output.

Conclusion

Understanding what is IGBT inverter welding machine unlocks a new level of efficiency, control, and precision in modern welding.

These machines represent the evolution from bulky, energy-hungry transformers to compact, intelligent systems that deliver cleaner arcs, stronger welds, and greater portability.

IGBT inverter welders combine advanced electronics with real-world practicality. They give welders stable power output, fine control over penetration, and higher efficiency that directly translates into reduced energy consumption.

When used correctly—with proper setup, maintenance, and technique—they can handle everything from light fabrication to heavy industrial applications.

The growing adoption of IGBT inverter welders across workshops and construction sites proves their reliability and value.

As technology continues to evolve, features like automatic parameter adjustment, synergic modes, and smart monitoring will make welding even more precise and user-friendly.

Still, the core principles of welding remain unchanged. Clean surfaces, correct amperage, consistent travel speed, and patience are what separate a good weld from a great one. The machine amplifies your skill—it doesn’t replace it.
