Radiographic Testing (RT) is a non-destructive testing (NDT) method used to inspect welds and other metal structures for internal flaws or discontinuities. This technique uses X-rays or gamma rays to create radiographic images of the internal structure of a weld, allowing for detailed inspection without damaging the material.
Radiographic testing is crucial in various industries, including construction, aerospace, automotive, and oil and gas, where the integrity of welds is critical for safety and performance.

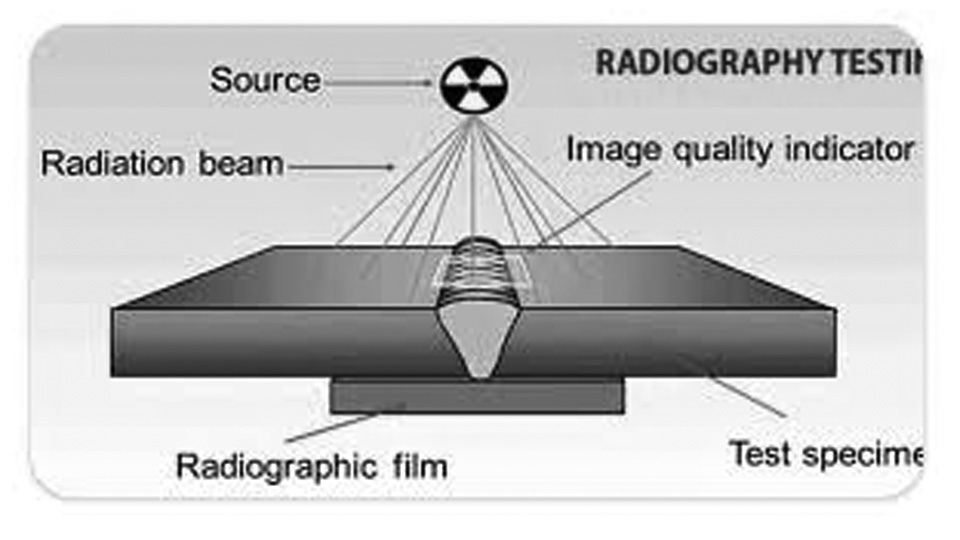

Image by Piping/NDT/Welding.com.ph
In this blog post, we will explore what radiographic testing in welding involves, how it works, its benefits and limitations, and how it compares to other NDT methods.
How Does Radiographic Testing in Welding Work?
Radiographic testing in welding involves using radiation to create images of the internal structure of welds. Heres a step-by-step overview of how the process works:
Preparation
Before conducting radiographic testing, the weld area must be prepared. This involves cleaning the surface of the weld and surrounding material to ensure that the radiographic images are clear and free of artifacts. The surface must be smooth, and any contaminants such as rust, oil, or paint should be removed.
Placement of Radiographic Film or Detector
A radiographic film or digital detector is placed on one side of the weld joint. On the opposite side, a radiation source (X-ray tube or gamma ray source) is positioned. The film or detector captures the radiation that passes through the weld and the surrounding material.
Exposure to Radiation
The radiation source is activated, and it passes through the weld and surrounding material. Different materials and welds absorb radiation differently, which creates variations in the intensity of radiation reaching the film or detector.
Areas with higher density (such as metal) absorb more radiation and appear darker on the radiographic image, while areas with lower density (such as voids or cracks) allow more radiation to pass through and appear lighter.
Development of Radiographic Image
For traditional radiographic testing using film, the exposed film is developed using chemical processing to create a visible image. For digital radiographic testing, the digital detector produces an electronic image that can be viewed on a computer screen. The resulting radiographic image shows the internal structure of the weld, revealing any discontinuities or defects.
Inspection and Interpretation
The radiographic image is analyzed by a trained inspector to identify any internal defects such as cracks, porosity, inclusions, or incomplete fusion. The inspector assesses the quality of the weld and determines if it meets the required standards and specifications.
Benefits of Radiographic Testing
Radiographic testing offers several advantages that make it a popular choice for inspecting welds:
Detailed Internal Inspection
Radiographic testing provides a clear view of the internal structure of a weld, allowing inspectors to identify defects that are not visible on the surface. This detailed internal view helps ensure that welds meet quality and safety standards.
High Sensitivity
The technique is highly sensitive to small defects, such as tiny cracks or inclusions, making it suitable for detecting even minor issues that could affect the integrity of the weld.
Permanent Records
Radiographic images provide permanent records of the weld inspection, which can be useful for documentation, quality control, and future reference. These records can be reviewed and analyzed at any time.
Applicable to Various Materials
Radiographic testing can be used on a wide range of materials, including metals, plastics, and composites. It is suitable for inspecting welds in various industries, from construction to aerospace.
Limitations of Radiographic Testing
While radiographic testing has many benefits, it also has some limitations:
Radiation Safety
Radiographic testing involves the use of radiation, which can be hazardous to human health. Safety measures must be taken to protect personnel from exposure, including proper shielding, safety training, and adherence to regulatory guidelines.
Cost and Equipment
The cost of radiographic testing equipment, including X-ray tubes or gamma ray sources, and film or digital detectors, can be high. Additionally, the process requires skilled personnel to operate the equipment and interpret the results.
Limited to Line-of-Sight Inspection
Radiographic testing is limited to inspecting areas that are within the line of sight of the radiation source and detector. This means that complex geometries or welds with multiple layers may require multiple exposures to fully inspect.
Image Interpretation
Interpreting radiographic images requires expertise and experience. Misinterpretation of images can lead to incorrect assessments of weld quality or missed defects.
Radiographic Testing vs Other NDT Methods
| NDT Method | Advantages | Limitations | Typical Applications |
|---|---|---|---|
| Radiographic Testing | Detailed internal inspection, high sensitivity, permanent records | Radiation safety, high cost, line-of-sight limitation | Welds, structural components, aerospace |
| Ultrasonic Testing | Detects various defects, can measure thickness, no radiation hazards | Requires couplant, surface preparation needed | Welds, thickness measurement, composites |
| Magnetic Particle Testing | Effective for detecting surface and near-surface defects, no radiation | Limited to ferromagnetic materials, requires surface preparation | Automotive parts, structural steel |
| Dye Penetrant Testing | Simple and cost-effective, detects surface defects | Limited to surface defects, requires clean surface | Casting, forgings, welds |
Conclusion
Radiographic Testing (RT) is a valuable non-destructive testing method for inspecting welds and ensuring their integrity. By using X-rays or gamma rays, RT provides a detailed view of the internal structure of a weld, allowing for the detection of defects that could compromise the weld’s strength and reliability.
Despite its advantages, RT also has limitations, including radiation safety concerns, high costs, and the need for skilled interpretation. Understanding these factors helps ensure that radiographic testing is used effectively and safely in various industries.
By comparing radiographic testing with other NDT methods, you can make informed decisions about the best inspection technique for your specific application, ensuring high-quality and reliable welds in your projects.
