Resistance welding is a crucial process in modern manufacturing, playing a vital role in industries ranging from automotive to electronics. This efficient and reliable welding technique has revolutionized the way we join metals, offering speed, precision, and cost-effectiveness. In this guide, we’ll explore the intricacies of resistance welding, its working principles, applications, advantages, and disadvantages.
Image by metalsupermarkets
What is Resistance Welding?
Resistance welding is a type of welding process that uses the electrical resistance of materials to generate heat and create a weld. This method creates welds by applying pressure and passing an electric current through the materials to be joined. The process was first introduced in the late 19th century and has since become a cornerstone of modern manufacturing.
Key Features of Resistance Welding:
- Uses electrical resistance to generate heat
- Creates localized welds at specific points
- Requires no filler material
- Ideal for joining thin metal sheets
- Highly suitable for automation

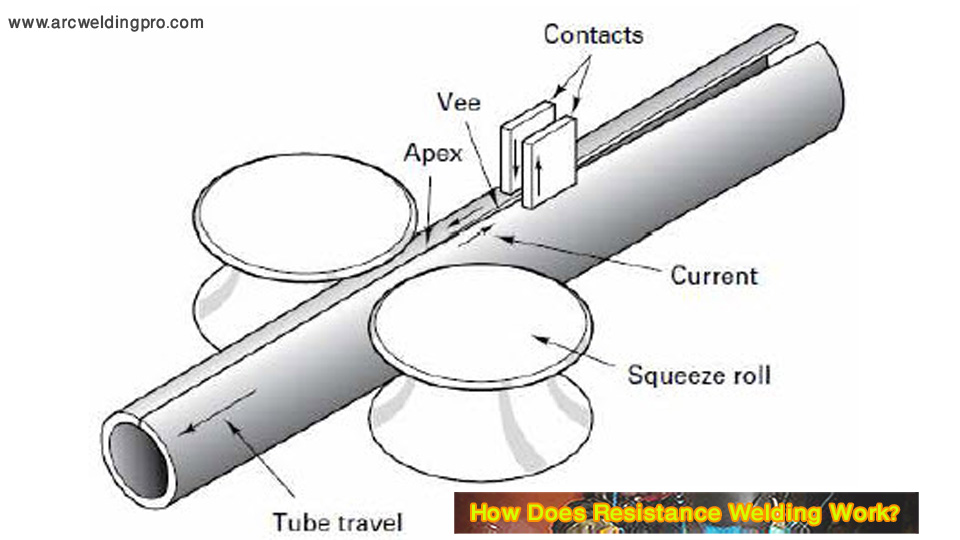

How Does Resistance Welding Work?
The resistance welding process relies on the principle of electrical resistance to generate heat and create a weld. Here’s a step-by-step breakdown of how resistance welding works:

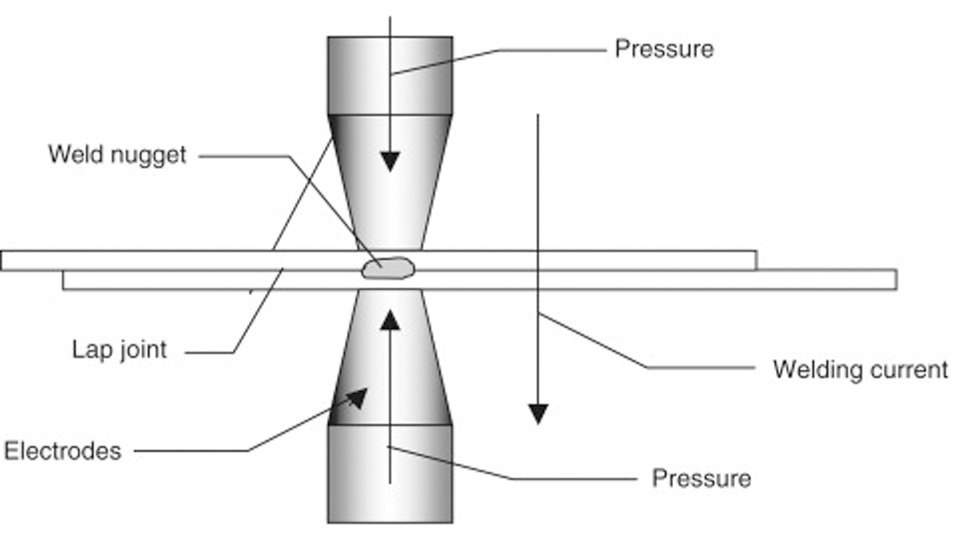

Material Positioning
The metal pieces to be joined are placed between two electrodes, typically made of copper alloy. These electrodes are responsible for applying pressure and conducting electrical current.
Pressure Application
The electrodes apply pressure to the metal pieces, ensuring good contact between the parts to be welded. This pressure can be applied manually, pneumatically, or hydraulically, depending on the welding machine.
Current Flow
A high-intensity electric current is passed through the electrodes and the metal pieces. This current is typically applied for a very short duration, usually between 10 to 100 milliseconds.
Heat Generation
As the current flows through the metal pieces, it encounters resistance. This resistance causes localized heating at the point of contact between the pieces. The amount of heat generated is expressed by the formula:
Q = I?Rt
Where: Q = Heat energy I = Current R = Electrical resistance t = Time duration of current flow
Melting and Fusion
The intense heat causes the metal at the contact point to melt, forming a small pool of molten metal. This molten pool is contained by the pressure of the electrodes and the surrounding solid metal.
Cooling and Solidification
Once the current flow stops, the molten metal begins to cool and solidify, forming a weld nugget that joins the metal pieces together. The electrodes continue to apply pressure during this cooling phase to ensure proper formation of the weld.
Weld Completion
After the weld has solidified, the pressure is released, and the electrodes are retracted. The process can then be repeated at other points as needed.
Image by msvs-dei.vlabs
Types of Resistance Welding
There are several types of resistance welding, each suited for different applications:
Spot Welding
Spot welding is the most common type of resistance welding. It creates individual weld spots at specific points where two or more metal sheets overlap. This method is widely used in the automotive industry for joining body panels.
Seam Welding
Seam welding, also known as continuous spot welding, uses wheel-shaped electrodes to create a continuous, leak-tight weld along a seam. It’s often used in the production of fuel tanks, pipes, and other containers that require a hermetic seal.
Projection Welding
In projection welding, one of the workpieces has a raised area or projection that concentrates the welding current. This method is useful for welding nuts, bolts, and other fasteners to metal sheets.
Flash Welding
Flash welding is used to join the ends of bars, tubes, or pipes. The parts are brought together under pressure, and a high current causes flashing and welding at the interface.
Upset Welding
Similar to flash welding, upset welding is used for joining bars, rods, and tubes end-to-end. The parts are clamped together, heated by resistance, and then upset (pushed together) to form the weld.
Applications of Resistance Welding
Resistance welding has found widespread use across various industries due to its efficiency and reliability. Here are some key applications:
Automotive Industry
The automotive sector is one of the largest users of resistance welding technology. It’s employed in:
- Car body assembly
- Door panel construction
- Frame and chassis fabrication
- Seat frame manufacturing
- Exhaust system assembly
Aerospace Industry
In aerospace manufacturing, resistance welding is used for:
- Airframe component assembly
- Joining of thin metal sheets in aircraft structures
- Fabrication of fuel tanks and other containment vessels
Electronics Industry
Resistance welding plays a crucial role in electronics manufacturing:
- Battery production (e.g., welding battery tabs)
- Circuit board assembly
- Joining of delicate electronic components
Appliance Manufacturing
Many household appliances rely on resistance welding:
- Refrigerator and washing machine assembly
- Microwave oven construction
- HVAC system fabrication
Other Applications
- Metal furniture manufacturing
- Sheet metal fabrication
- Medical device production
- Jewelry making
Advantages of Resistance Welding
Resistance welding offers numerous benefits that have contributed to its widespread adoption:
Speed and Efficiency
Resistance welding is one of the fastest welding methods available. The process can create welds in milliseconds, making it ideal for high-volume production environments.
Cost-Effectiveness
The process requires no filler materials or shielding gases, reducing material costs. Additionally, its speed and automation potential lead to lower labor costs.
Consistency and Repeatability
When properly set up, resistance welding machines can produce consistent, high-quality welds repeatedly, ensuring uniform product quality.
Minimal Heat Affected Zone
The localized nature of resistance welding results in a small heat-affected zone, minimizing distortion and maintaining the material’s properties in surrounding areas.
Automation Potential
Resistance welding is highly suitable for automation, allowing for integration with robotic systems for increased productivity and precision.
Clean Process
Unlike some other welding methods, resistance welding produces no sparks, fumes, or open flames, making it a cleaner and safer process.
Versatility
Resistance welding can join a variety of metals and is particularly effective for thin sheet metal applications.
Disadvantages of Resistance Welding
Despite its many advantages, resistance welding also has some limitations:
Limited Joint Types
Resistance welding is primarily suitable for lap joints and is not effective for butt joints or other complex joint configurations.
Material Thickness Limitations
The process is most effective for thin materials, typically up to 3mm thick. Welding thicker materials can be challenging and may require specialized equipment.
Surface Appearance
Resistance welds can leave visible marks on the surface, which may be undesirable in some applications where aesthetics are important.
Electrode Wear
The copper electrodes used in resistance welding can wear over time, requiring regular maintenance and replacement to maintain weld quality.
Initial Equipment Cost
High-quality resistance welding equipment can be expensive, particularly for automated systems, which may present a barrier for smaller operations.
Material Limitations
While resistance welding works well with many metals, it can be challenging with highly conductive materials like copper or aluminum, requiring specialized techniques or equipment.
Access Requirements
Both sides of the workpiece must be accessible to the electrodes, which can limit the use of resistance welding in certain applications or geometries.
Resistance Welding vs Other Welding Methods
To better understand the unique position of resistance welding in the fabrication industry, let’s compare it to some other common welding methods:
| Aspect | Resistance Welding | Arc Welding | Laser Welding |
|---|---|---|---|
| Speed | Very Fast | Moderate | Very Fast |
| Cost | Low to Medium | Medium | High |
| Skill Required | Low | High | Medium |
| Joint Types | Limited (mainly lap joints) | Versatile | Versatile |
| Material Thickness | Thin (up to 3mm) | Thin to Thick | Thin to Medium |
| Automation Potential | High | Medium | High |
| Weld Appearance | Visible spots/seams | Visible bead | Nearly invisible |
| Heat Affected Zone | Small | Large | Very Small |
| Filler Material | Not Required | Required | Not Required |
| Energy Source | Electricity | Electricity | Laser |
Best Practices for Resistance Welding
To achieve optimal results with resistance welding, consider the following best practices:
Proper Material Preparation
Ensure that the surfaces to be welded are clean and free from contaminants like oil, rust, or paint. Proper surface preparation is crucial for achieving strong, consistent welds.
Electrode Maintenance
Regularly inspect and maintain the electrodes. Clean or dress the electrode tips as needed to remove contamination and maintain the proper tip geometry.
Parameter Optimization
Carefully adjust welding parameters such as current, time, and pressure based on the materials being welded and their thickness. Conduct test welds to fine-tune these parameters.
Cooling Time
Allow sufficient cooling time between welds to prevent heat buildup, which can affect weld quality and electrode life.
Weld Spacing
Maintain proper spacing between weld spots to ensure structural integrity without compromising the material’s properties.
Quality Control
Implement regular quality control checks, including destructive and non-destructive testing, to ensure consistent weld quality.
Operator Training
Provide thorough training to operators on proper machine operation, safety procedures, and troubleshooting techniques.
Future Trends in Resistance Welding
As technology continues to advance, we can expect to see several developments in resistance welding:
Advanced Control Systems
Integration of AI and machine learning for real-time weld quality monitoring and parameter adjustment.
Energy Efficiency
Development of more energy-efficient resistance welding systems to reduce power consumption and operating costs.
New Material Applications
Advancements in resistance welding techniques for joining advanced materials, including high-strength steels and lightweight alloys.
Integration with Industry 4.0
Increased connectivity and data collection capabilities for improved process control and traceability.
Conclusion
Resistance welding has established itself as an indispensable technique in modern manufacturing, offering a unique combination of speed, efficiency, and reliability. Its ability to quickly join thin metal sheets with minimal setup and no consumables makes it particularly valuable in high-volume production environments.
While resistance welding does have limitations, such as joint type restrictions and material thickness constraints, its advantages often outweigh these drawbacks in suitable applications. The process’s adaptability to automation has further cemented its position in industries like automotive and electronics manufacturing.
As technology continues to advance, we can expect to see further improvements in resistance welding equipment and techniques, potentially expanding its capabilities and applications. For manufacturers and engineers working with sheet metal and similar materials, understanding the principles, advantages, and limitations of resistance welding is crucial for making informed decisions about joining processes.
By leveraging the strengths of resistance welding and adhering to best practices, industries can continue to benefit from this efficient and reliable welding method, driving productivity and innovation in manufacturing processes worldwide.
