Riveting is a fundamental technique in metal work that has been used for centuries to join materials together permanently. This method of fastening plays a crucial role in various industries, from construction and automotive to aerospace and manufacturing. In this comprehensive guide, we’ll explore the ins and outs of riveting, its applications, types of rivets, and the riveting process itself.
Image by sancogrup
Understanding the Riveting
Definition of Riveting
Riveting is a mechanical fastening process used to join two or more pieces of material, typically metal, by using a rivet. A rivet is a permanent mechanical fastener with a smooth cylindrical shaft and a head on one end. During the riveting process, the tail end of the rivet is deformed, creating a second head that secures the materials together.
Historical Context
Riveting has a rich history dating back to ancient civilizations. It gained significant prominence during the Industrial Revolution, playing a crucial role in the construction of bridges, ships, and early skyscrapers. The iconic image of workers riveting steel beams on high-rise buildings is a testament to the importance of this technique in shaping our modern world.
Riveting Process
Step 1: Hole Preparation
The first step in riveting involves preparing holes in the materials to be joined. These holes must be accurately sized and aligned to ensure a proper fit for the rivet.
Step 2: Rivet Insertion
Once the holes are prepared, the rivet is inserted through them. The head of the rivet remains on one side of the joined materials.
Step 3: Tail Deformation
The key step in riveting is the deformation of the tail end of the rivet. This is typically done using specialized tools such as a pneumatic rivet gun, hydraulic press, or manual hammer and bucking bar.
Step 4: Second Head Formation
As the tail is deformed, it spreads out to form a second head on the opposite side of the materials. This second head, along with the original head, clamps the materials tightly together.

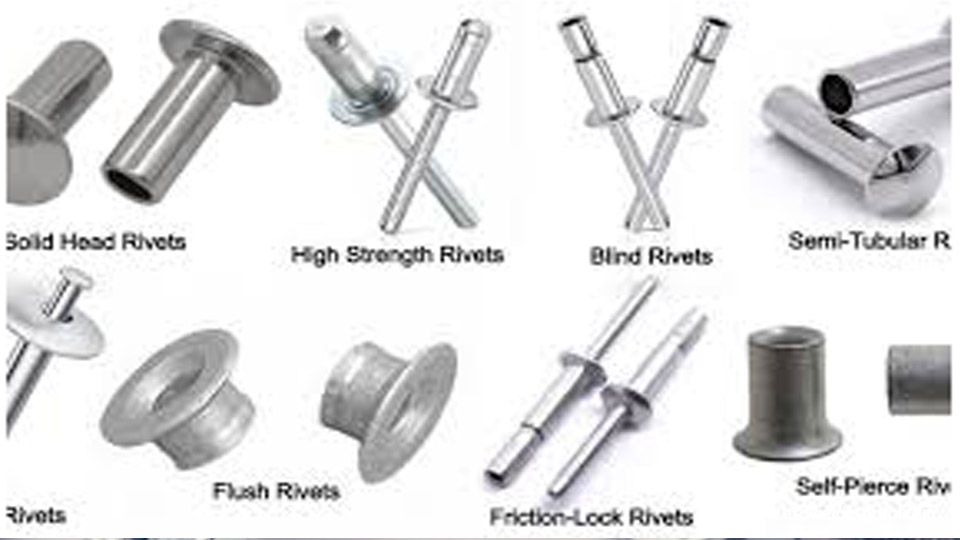

Types of Rivets
There are several types of rivets used in metal work, each designed for specific applications:
Solid Rivets
Solid rivets are the most traditional type, consisting of a solid shaft with a preformed head. They require access to both sides of the joint for installation and are known for their high strength.
Blind Rivets (Pop Rivets)
Blind rivets, also known as pop rivets, can be installed from one side of the workpiece. They consist of a hollow rivet body and a mandrel that is pulled through the body during installation, expanding it to form the second head.
Tubular Rivets
Tubular rivets have a hollow shaft and are often used in softer materials or where a lower installation force is required.
Split Rivets
Split rivets have a tail that is partially split, allowing it to spread more easily during installation. They are often used in leather work and other soft materials.
Structural Rivets
Structural rivets are large, high-strength rivets used in critical load-bearing applications such as bridge construction and heavy machinery.
Image by linquip
Advantages and Disadvantages of Riveting
Advantages:
- High strength and durability
- Suitable for joining dissimilar materials
- Resistant to vibration and fatigue
- Can be used in applications where welding is not suitable
- Allows for some flexibility in the joint
Disadvantages:
- Permanent joint (cannot be easily disassembled)
- May require access to both sides of the workpiece
- Can add weight to the structure
- Potential for galvanic corrosion if dissimilar metals are used
- May create stress concentrations around the rivet holes
Applications of Riveting in Metal Work
Riveting is used across various industries and applications:
Aerospace Industry
In aircraft construction, riveting is extensively used to join fuselage panels, wing structures, and other critical components. The high strength-to-weight ratio of riveted joints makes them ideal for aerospace applications.
Automotive Manufacturing
Riveting is employed in automotive body assembly, particularly in joining body panels and structural components. It’s often used in combination with adhesives for improved strength and corrosion resistance.
Construction and Infrastructure
Large structural rivets are used in bridge construction, steel building frames, and other heavy-duty applications where high strength and durability are required.
Shipbuilding
While welding has largely replaced riveting in modern shipbuilding, rivets are still used in certain applications, particularly in restoration work on historic vessels.
Electronics and Appliances
Smaller rivets are used in the assembly of electronic devices, appliances, and other consumer products where a permanent, reliable fastening method is needed.
Riveting Tools and Equipment

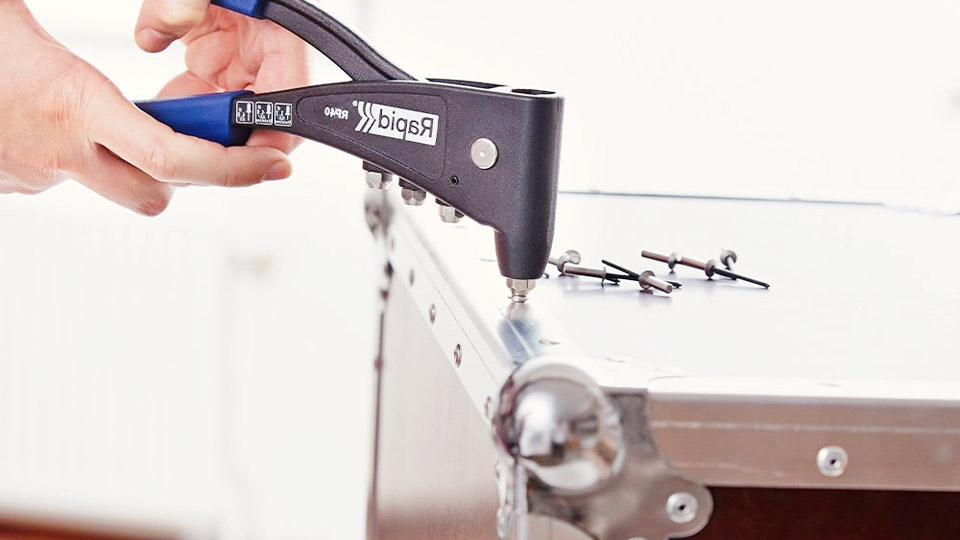

Manual Riveting Tools
- Hand riveters
- Rivet hammers
- Bucking bars
- Rivet sets
Pneumatic and Hydraulic Tools
- Pneumatic rivet guns
- Hydraulic riveters
- Squeeze riveters
Automated Riveting Systems
- CNC riveting machines
- Robotic riveting systems
- Automated riveting cells
Riveting vs Other Joining Methods
To better understand the role of riveting in metal work, let’s compare it to other common joining methods:
| Joining Method | Strength | Permanence | Material Compatibility | Heat Input | Skill Required |
|---|---|---|---|---|---|
| Riveting | High | Permanent | Good | Low | Moderate |
| Welding | Very High | Permanent | Limited | High | High |
| Bolting | High | Non-permanent | Excellent | None | Low |
| Adhesive Bonding | Moderate | Permanent | Excellent | Low | Moderate |
Best Practices for Riveting
To ensure high-quality riveted joints, consider the following best practices:
Proper Hole Preparation
Ensure holes are correctly sized, aligned, and free from burrs or debris.
Rivet Selection
Choose the appropriate rivet type, size, and material for your specific application.
Correct Tool Usage
Use the right tools and equipment for the job, and ensure they are properly maintained.
Consistent Technique
Develop and maintain a consistent riveting technique to ensure uniform joint quality.
Quality Control
Implement regular quality checks to verify the integrity of riveted joints.
Future Trends in Riveting
As technology advances, riveting continues to evolve:
Self-Pierce Riveting
This technique eliminates the need for pre-drilled holes, making it faster and more efficient for certain applications.
Hybrid Joining Methods
Combining riveting with adhesive bonding or other techniques to create stronger, more versatile joints.
Advanced Materials
Development of new rivet materials and coatings to improve strength, corrosion resistance, and compatibility with advanced composites.
Automation and Robotics
Increased use of automated riveting systems to improve efficiency and consistency in high-volume production environments.
Conclusion
Riveting remains a crucial technique in metal work, offering a reliable and versatile method for joining materials. Its ability to create strong, durable joints without the need for heat makes it invaluable in many industries. As technology advances, riveting continues to evolve, adapting to new materials and manufacturing processes.
Whether you’re working on a small DIY project or involved in large-scale industrial manufacturing, understanding the principles and applications of riveting is essential for anyone working with metal.
By mastering the art of riveting, you can create strong, lasting connections that stand the test of time, just as this time-honored technique has done throughout history. As we look to the future, riveting will undoubtedly continue to play a vital role in shaping our built environment and the products we use every day.
