Ultrasonic testing (UT) of welds is a non-destructive testing (NDT) method used to detect internal defects in welded joints, such as cracks, porosity, inclusions, and lack of fusion. This testing technique utilizes high-frequency sound waves to inspect and evaluate the integrity of welds without causing any damage to the material.
Ultrasonic testing is widely used in industries such as oil and gas, aerospace, automotive, and construction, where the quality of welds is critical for safety and performance.

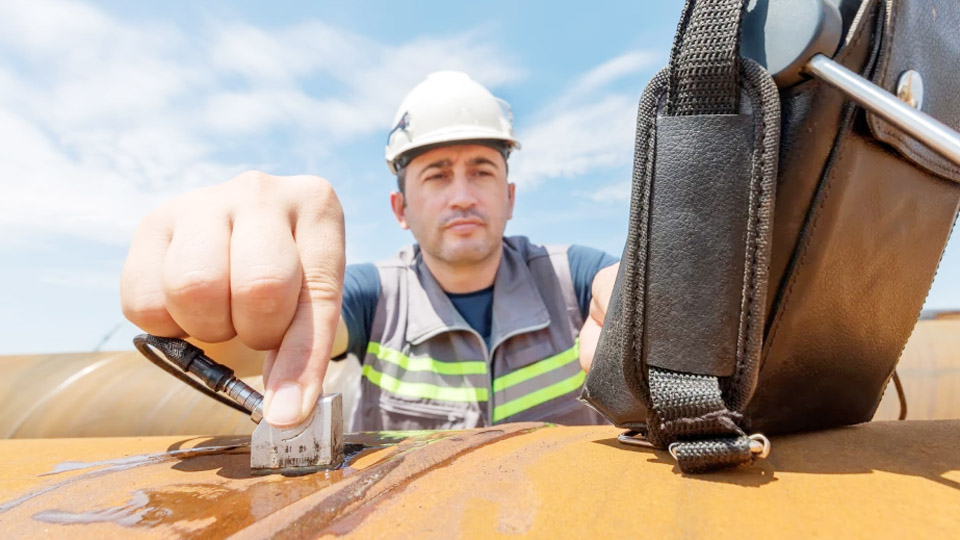

Image by onestopndt
Ultrasonic Testing of Welds
Ultrasonic testing is a method that employs high-frequency sound waves to inspect welds and other materials for defects. Unlike destructive testing methods that require cutting or damaging the component, ultrasonic testing allows for a thorough inspection without compromising the integrity of the weld.
The sound waves are introduced into the material, and their reflections from internal features, such as flaws or interfaces, are analyzed to determine the quality of the weld.
Key Features of Ultrasonic Testing
- Non-Destructive: Allows inspection of welds without damaging the part, preserving its usability.
- High Sensitivity: Capable of detecting very small flaws and discontinuities within the weld.
- Versatility: Can be used on a wide range of materials, including metals, plastics, and composites.
- Real-Time Results: Provides immediate feedback, enabling quick decision-making during inspection.
Principles of Ultrasonic Testing
Ultrasonic testing is based on the transmission and reflection of high-frequency sound waves through a material. The sound waves are generated by a transducer and travel through the material, reflecting off any internal flaws or interfaces. The reflections are captured by the transducer and converted into signals that can be analyzed to identify the size, location, and nature of the flaws.
Basic Components of an Ultrasonic Testing System
- Transducer: Generates and receives the ultrasonic waves. It converts electrical energy into mechanical vibrations and vice versa.
- Pulser/Receiver: Generates the high-frequency electrical pulses that drive the transducer and amplifies the received signals.
- Display Unit: Shows the results of the test, usually in the form of a waveform or digital display that represents the reflections detected within the material.
- Couplant: A medium, such as water, gel, or oil, used to facilitate the transmission of sound waves from the transducer into the material being tested.
Ultrasonic Testing Process for Welds
The ultrasonic testing process for welds involves several steps that ensure a comprehensive evaluation of the weld’s integrity. Each step is critical for obtaining accurate and reliable results.
Preparation
Before testing, the surface of the weld and the surrounding area must be cleaned to remove any dirt, grease, or loose material that could interfere with the transmission of sound waves. A couplant is then applied to the surface to enhance the transmission of sound waves from the transducer into the material.
Calibration
The ultrasonic equipment must be calibrated using reference standards that contain known defects. Calibration ensures that the equipment is set up correctly and that the results obtained are accurate and reliable.
Scanning
During scanning, the transducer is moved along the surface of the weld, emitting sound waves into the material. As the waves travel through the weld, they reflect off any internal features or flaws. The reflected waves are captured by the transducer and analyzed.
Interpretation of Results
The signals received from the reflections are displayed on a screen, typically in the form of an A-scan, B-scan, or C-scan display. The operator interprets these signals to determine the presence, size, and location of any defects within the weld.
Applications of Ultrasonic Testing in Welding
Ultrasonic testing is widely used in various industries to ensure the quality and safety of welded joints. Below are some common applications:
Oil and Gas Industry
- Pipeline Weld Inspection: Ultrasonic testing is used to inspect welds in pipelines for defects such as cracks, lack of fusion, and porosity that could lead to leaks or failures.
- Pressure Vessels: The welds in pressure vessels, which are subjected to high pressures, are tested using ultrasonic methods to ensure their integrity and safety.
Aerospace Industry
- Aircraft Components: Ultrasonic testing is used to inspect welds in critical aircraft components, such as engine parts and structural assemblies, to detect defects that could compromise safety.
- Composite Materials: In addition to metal welds, ultrasonic testing is also used to inspect composite materials for delaminations and other flaws.
Automotive Industry
- Chassis and Frame Welds: Ultrasonic testing is used to inspect welds in automotive chassis and frames, ensuring that they meet safety and performance standards.
- Exhaust Systems: Welds in exhaust systems are tested ultrasonically to check for leaks or weaknesses that could lead to failures.
Construction Industry
- Steel Structures: Ultrasonic testing is employed to inspect welds in steel structures, such as bridges and buildings, to ensure their structural integrity and compliance with safety standards.
Advantages of Ultrasonic Testing of Welds
Ultrasonic testing offers numerous advantages that make it a preferred method for inspecting welds in various industries.
- High Sensitivity: Capable of detecting very small defects that might not be visible with other NDT methods.
- Depth Penetration: Ultrasonic waves can penetrate deep into materials, allowing inspection of thick welds.
- Immediate Results: Provides real-time feedback, allowing for immediate analysis and decision-making.
- Non-Destructive: Does not damage the material or alter the weld in any way, preserving its integrity.
- Versatility: Can be used on a wide range of materials and weld types.
Limitations of Ultrasonic Testing of Welds
While ultrasonic testing has many benefits, it also has some limitations that need to be considered.
- Surface Condition Sensitivity: Requires a clean, smooth surface for effective transmission of sound waves.
- Operator Skill: Accurate interpretation of results requires skilled operators with extensive training and experience.
- Equipment Cost: Ultrasonic testing equipment can be expensive, which may be a barrier for small-scale operations.
- Difficulty with Complex Geometries: Testing welds in complex shapes or joints can be challenging due to difficulty in positioning the transducer.
Comparison of Ultrasonic Testing with Other Testing Methods
To understand the strengths and weaknesses of ultrasonic testing, it is helpful to compare it with other common weld testing methods, such as radiographic testing, magnetic particle testing, and dye penetrant testing.
| Feature | Ultrasonic Testing | Radiographic Testing | Magnetic Particle Testing | Dye Penetrant Testing |
|---|---|---|---|---|
| Type of Defects Detected | Internal and surface defects | Internal defects | Surface and near-surface defects | Surface defects |
| Penetration Depth | High | High | Low | Surface only |
| Sensitivity | High | High | Moderate | Low to moderate |
| Safety | Safe (no radiation) | Requires radiation safety | Safe | Safe |
| Portability | Portable equipment | Less portable (requires shielding) | Portable | Portable |
| Surface Preparation | Requires smooth, clean surface | Minimal | Requires clean surface | Requires clean surface |
| Operator Skill | High | High | Moderate | Low |
| Cost | Moderate to high | High | Low to moderate | Low |
| Applications | All materials, thick welds | All materials, thick welds | Ferromagnetic materials | Non-porous materials |
Factors Affecting Ultrasonic Testing Quality
The quality and accuracy of ultrasonic testing are influenced by several factors, which must be carefully controlled to achieve reliable results.
Surface Condition
The surface condition of the weld plays a crucial role in the effectiveness of ultrasonic testing. A clean, smooth surface allows for better transmission of sound waves, while rough or dirty surfaces can scatter the waves and reduce accuracy.
Equipment Calibration
Proper calibration of the ultrasonic testing equipment is essential for accurate measurements. Calibration is done using reference standards with known defects to ensure that the equipment is correctly set up and providing accurate results.
Operator Skill and Experience
The accuracy of ultrasonic testing heavily depends on the skill and experience of the operator. Skilled operators are better able to interpret the signals and distinguish between actual defects and harmless reflections or noise.
Material Properties
The properties of the material being tested, such as thickness, density, and grain structure, can affect the propagation of sound waves and the accuracy of the test results. Understanding these properties helps in setting up the test correctly.
Future Trends in Ultrasonic Testing
As technology advances, ultrasonic testing continues to evolve, with new innovations enhancing its capabilities and expanding its applications.
- Automation and Robotics: Integration of ultrasonic testing with robotic systems is increasing, allowing for automated inspections that improve speed, consistency, and safety.
- Advanced Data Analysis: Use of advanced software and algorithms for data analysis is enhancing the accuracy and reliability of ultrasonic testing results.
- Phased Array Ultrasonic Testing (PAUT): PAUT is an advanced form of ultrasonic testing that uses multiple transducer elements and electronic control to steer and focus the ultrasonic beam, providing a more detailed inspection of welds.
Conclusion
Ultrasonic testing of welds is a powerful and versatile non-destructive testing method that provides a reliable way to inspect and evaluate the integrity of welded joints. Its ability to detect internal flaws, combined with its non-destructive nature and high sensitivity, makes it an invaluable tool across various industries, including oil and gas, aerospace, automotive, and construction.
While it does have some limitations, ongoing advancements in ultrasonic testing technology, such as automation and phased array techniques, are likely to further enhance its capabilities and expand its applications.
