What is Welding Duty Cycle & How is it Calculated?

In the world of welding, understanding technical specifications is crucial for both safety and efficiency. One of the most important yet often misunderstood concepts is the welding duty cycle. Whether you’re a seasoned professional or a hobbyist welder, grasping the concept of duty cycle can significantly impact your welding performance and equipment longevity.

Defining Welding Duty Cycle

The duty cycle in welding refers to the percentage of time a welding machine can operate continuously within a specific time frame (usually 10 minutes) without overheating. It’s a critical measure of a welding machine’s capacity and efficiency.

For example, if a welding machine has a duty cycle of 60% at 300 amperes, it means the machine can weld continuously for 6 minutes out of a 10-minute period at 300 amperes before it needs to cool down for the remaining 4 minutes.

Why Duty Cycle Matters

Understanding duty cycle is crucial for several reasons:

1. Equipment Protection: Adhering to the duty cycle prevents overheating and potential damage to your welding machine.
2. Productivity: It helps you plan your welding tasks efficiently, especially for large projects.
3. Quality Control: Consistent welding within the duty cycle ensures uniform weld quality.
4. Cost-Effectiveness: Proper use of duty cycle can extend the life of your equipment, saving money in the long run.

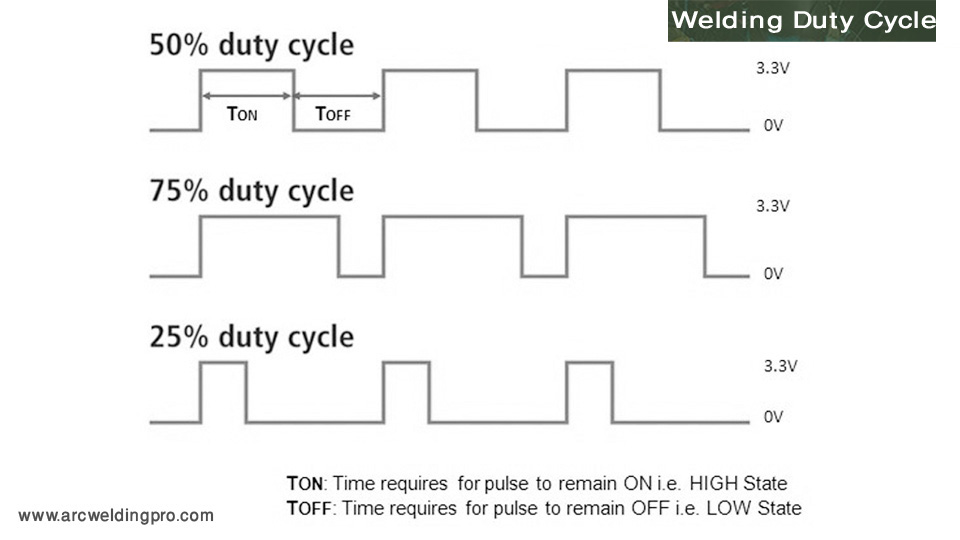

How Duty Cycle is Calculated

Calculating the duty cycle is relatively straightforward. The basic formula is:

Duty Cycle = (Time Welding / Total Time) x 100

Where:

• Time Welding is the duration of continuous welding
• Total Time is typically a 10-minute cycle

Image by sparkfun

Example Calculation

Let’s say you can weld continuously for 4 minutes before the machine needs to cool down. Here’s how you would calculate the duty cycle:

Duty Cycle = (4 minutes / 10 minutes) x 100 = 40%

This means your welding machine has a 40% duty cycle at the amperage you’re using.

Factors Affecting Duty Cycle

Several factors can influence a welding machine’s duty cycle:

Amperage Setting

The duty cycle is typically rated at a specific amperage. As you increase the amperage, the duty cycle generally decreases. This is because higher amperages generate more heat, requiring more frequent cooling periods.

Ambient Temperature

Welding in a hot environment can reduce the effective duty cycle of your machine. Cooler environments allow for more efficient heat dissipation, potentially extending the duty cycle.

Machine Design and Cooling System

Higher-quality welding machines often have more efficient cooling systems, allowing for longer duty cycles. The design of the machine, including its internal components and ventilation, plays a significant role in heat management.

Power Source

The type of power source (e.g., transformer-based vs. inverter-based) can affect the duty cycle. Modern inverter welding machines often have higher duty cycles due to their efficient design.

Duty Cycle Ratings

Welding machines typically come with duty cycle ratings that provide information about their performance capabilities. These ratings are usually expressed as a percentage at a specific amperage.

Interpreting Duty Cycle Ratings

For example, a machine might be rated as:

• 60% at 300A
• 100% at 230A

This means the machine can weld continuously for 6 minutes out of 10 at 300 amperes, or indefinitely at 230 amperes.

Duty Cycle at Different Amperages

It’s important to note that the duty cycle changes with amperage. As you decrease the amperage, the duty cycle typically increases. This relationship is not always linear and can vary between different welding machines.

Practical Applications of Duty Cycle

Understanding duty cycle has practical implications for your welding projects:

Project Planning

For large welding projects, knowing your machine’s duty cycle helps you plan your work sessions and breaks effectively. This is particularly important in production environments where efficiency is key.

Machine Selection

When purchasing or renting a welding machine, consider the duty cycle in relation to your typical welding tasks. If you frequently perform long, continuous welds, you’ll need a machine with a higher duty cycle.

Welding Technique Adjustment

You might need to adjust your welding technique based on the duty cycle. For machines with lower duty cycles, you might opt for shorter, more frequent welds to allow for cooling periods.

Consequences of Exceeding Duty Cycle

Exceeding the duty cycle of your welding machine can have several negative consequences:

Overheating

The most immediate consequence is overheating. Modern welding machines have thermal protection that will shut off the machine to prevent damage. This forced cooldown can interrupt your work and reduce productivity.

Reduced Weld Quality

As a machine approaches its duty cycle limit, the weld quality may deteriorate. This can result in inconsistent welds, increased spatter, or poor penetration.

Equipment Damage

Consistently exceeding the duty cycle can lead to premature wear of internal components, potentially shortening the lifespan of your welding machine.

Safety Risks

Overheated equipment can pose safety risks, including the potential for electrical malfunctions or, in extreme cases, fire hazards.

Strategies for Managing Duty Cycle

To effectively manage duty cycle in your welding operations, consider the following strategies:

Alternating Work

If possible, alternate between different welding tasks or machines to allow for cooling periods without completely halting work.

Using Multiple Machines

In high-production environments, using multiple welding machines can help maintain continuous operation while adhering to duty cycle limitations.

Proper Machine Selection

Choose a welding machine with a duty cycle appropriate for your typical workload. It’s often better to have a machine with a higher duty cycle than you think you need.

Environmental Control

Where possible, control the ambient temperature of your welding area. Good ventilation and cooling can help maintain optimal operating conditions.

Advanced Considerations in Duty Cycle

For those looking to delve deeper into the concept of duty cycle, there are some advanced considerations to keep in mind:

Duty Cycle in Different Welding Processes

Different welding processes (MIG, TIG, Stick) may have varying duty cycle characteristics. For instance, TIG welding often involves lower duty cycles due to the precision and heat control required.

Duty Cycle in Three-Phase vs. Single-Phase Machines

Three-phase welding machines typically offer higher duty cycles compared to single-phase machines due to more efficient power distribution.

Impact of Welding Wire Diameter

In wire-feed welding processes, the diameter of the welding wire can affect the duty cycle. Larger diameter wires generally require higher amperages, which can impact the effective duty cycle.

Future Trends in Welding Duty Cycle

As welding technology continues to advance, we’re seeing trends that impact duty cycle:

Improved Cooling Systems

Manufacturers are developing more efficient cooling systems, allowing for higher duty cycles even in compact machines.

Smart Welding Machines

Some modern welding machines incorporate smart technology that can dynamically adjust settings to optimize duty cycle and prevent overheating.

Energy Efficiency

There’s a growing focus on energy-efficient welding machines, which often correlates with improved duty cycles due to better heat management.

Conclusion

Understanding welding duty cycle is crucial for anyone involved in welding operations, from hobbyists to professional welders and project managers. It’s a key factor in ensuring efficient, high-quality welding while protecting your equipment and maintaining safety.

By grasping the concept of duty cycle, how it’s calculated, and the factors that influence it, you can make informed decisions about equipment selection, project planning, and welding techniques.

Adhering to the duty cycle isn’t just about following rules  it’s about optimizing your welding performance and extending the life of your equipment.

As welding technology continues to evolve, staying informed about duty cycle and related concepts will help you stay at the forefront of efficient and effective welding practices.
