Wire feed welding is a popular and versatile welding technique used across various industries for joining metals. This method, also known as Gas Metal Arc Welding (GMAW) or Metal Inert Gas (MIG) welding, has revolutionized the welding industry with its efficiency, speed, and ease of use. In this guide, we’ll explore the intricacies of wire feed welding, its working principles, equipment, applications, and advantages.
Image by themostspruce
What is Wire Feed Welding?
Definition and Basic Concept
Wire feed welding is an arc welding process that uses a continuously fed wire electrode to create a weld. The process involves creating an electric arc between the wire electrode and the workpiece, which melts both the wire and the base metal, forming a strong bond when cooled.
Key Components of Wire Feed Welding
- Wire electrode
- Wire feed mechanism
- Welding gun
- Power source
- Shielding gas (for gas-shielded processes)
- Ground clamp
How Wire Feed Welding Works
Welding Process Step-by-Step
- Setup The welder sets up the equipment, including connecting the ground clamp to the workpiece, adjusting the wire feed speed, and setting the voltage on the power source.
- Initiating the Arc When the welder pulls the trigger on the welding gun, it activates the wire feed mechanism and the power source simultaneously.
- Wire Feeding The wire electrode is continuously fed through the welding gun at a preset speed.
- Arc Formation An electric arc forms between the wire electrode and the workpiece, creating intense heat.
- Melting and Fusion The heat from the arc melts both the wire electrode and the base metal, creating a molten weld pool.
- Shielding In gas-shielded processes, a protective gas flows around the arc and weld pool, protecting them from atmospheric contamination.
- Solidification As the welder moves the gun along the joint, the molten metal cools and solidifies, forming a strong weld bead.
Role of Shielding Gas
Shielding gas plays a crucial role in many wire feed welding processes. It serves several important functions:
- Protecting the weld pool from atmospheric gases
- Stabilizing the arc
- Influencing the weld bead shape and penetration
- Affecting the overall weld quality
Common shielding gases include argon, carbon dioxide, and mixtures of the two.

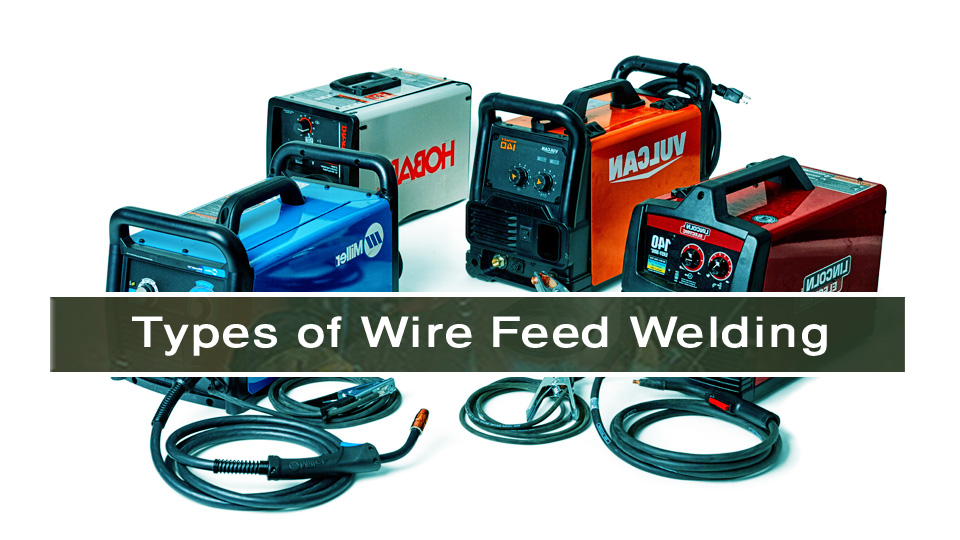

Types of Wire Feed Welding
Gas Metal Arc Welding (GMAW/MIG)
GMAW, commonly known as MIG welding, uses an externally supplied shielding gas. It’s versatile and can be used on a wide range of metals and thicknesses.
Flux-Cored Arc Welding (FCAW)
FCAW uses a tubular wire filled with flux. It can be either self-shielded or gas-shielded. This method is particularly useful for outdoor welding and on thicker materials.
Submerged Arc Welding (SAW)
SAW is a high-productivity process where the arc and weld pool are covered by a layer of granular flux. It’s commonly used for thick materials and long, straight welds.
Image by popularmechanics
Wire Feed Welding Equipment
Power Source
The power source provides the electrical energy needed to create the arc. It can be either constant voltage (CV) or constant current (CC), with CV being more common for wire feed processes.
Wire Feeder
The wire feeder is responsible for delivering the wire electrode to the weld at a consistent speed. It consists of drive rolls, a motor, and control circuitry.
Welding Gun
The welding gun houses the contact tip, which transfers electrical current to the wire electrode. It also directs the shielding gas and allows the welder to control the process.
Wire Electrode
Wire electrodes come in various materials and diameters to suit different welding applications. Common materials include steel, stainless steel, and aluminum.
Shielding Gas System
For gas-shielded processes, this includes gas cylinders, regulators, and flow meters to deliver the shielding gas to the weld area.
Advantages of Wire Feed Welding
High Productivity
Wire feed welding offers higher deposition rates compared to many other welding processes, leading to increased productivity.
Versatility
It can be used on a wide range of materials and thicknesses, making it suitable for various applications.
Ease of Use
Wire feed welding is relatively easy to learn and operate, making it accessible to both professionals and hobbyists.
Clean Welds
The process produces clean welds with minimal slag, reducing post-weld cleanup time.
Automation Potential
Wire feed welding processes are easily adaptable to robotic and automated systems, further increasing productivity and consistency.
Image by codinter
Applications of Wire Feed Welding
Automotive Industry
Wire feed welding is extensively used in automotive manufacturing and repair for joining body panels, frames, and other components.
Construction
It’s commonly employed in the construction of steel structures, bridges, and buildings.
Shipbuilding
Wire feed welding is crucial in shipbuilding for joining large metal plates and constructing ship hulls.
Aerospace
Certain wire feed processes are used in aerospace manufacturing for welding aluminum and other lightweight alloys.
General Fabrication
Many fabrication shops rely on wire feed welding for a wide range of metal joining tasks.
Challenges and Considerations
Porosity
Improper shielding gas coverage or contaminated surfaces can lead to porosity in the weld, weakening its strength.
Spatter
Some wire feed processes can produce spatter, which requires post-weld cleanup.
Wind Sensitivity
Gas-shielded processes can be sensitive to wind, making them less suitable for outdoor welding without proper protection.
Equipment Complexity
Wire feed welding systems can be more complex than some other welding methods, requiring more maintenance and setup time.
Best Practices for Wire Feed Welding
Proper Setup
Ensure all equipment is properly set up, including correct wire feed speed, voltage, and gas flow rate.
Material Preparation
Clean the base metal thoroughly to remove any contaminants that could affect weld quality.
Technique
Maintain proper gun angle, travel speed, and stick-out (distance between the contact tip and the workpiece) for optimal results.
Safety
Always wear appropriate personal protective equipment (PPE), including welding helmets, gloves, and fire-resistant clothing.
Future of Wire Feed Welding
Advanced Control Systems
The integration of sophisticated control systems is improving weld quality and consistency.
Improved Wire Materials
Development of new wire electrode materials is expanding the capabilities of wire feed welding.
Enhanced Automation
Advancements in robotics and artificial intelligence are leading to more efficient and precise automated wire feed welding systems.
Conclusion
Wire feed welding has become an indispensable process in modern manufacturing and fabrication. Its combination of speed, versatility, and ease of use makes it a preferred choice for many welding applications. As technology continues to advance, we can expect wire feed welding to evolve further, offering even greater capabilities and efficiencies.
