Why Is My Welder Not Feeding Wire? Common Reasons for Wire Feed Issues

Wire feed welders, also known as MIG (Metal Inert Gas) welders, are popular tools in both professional and DIY settings due to their versatility and ease of use. However, one common issue that welders face is when the wire stops feeding properly. This problem can be frustrating and can significantly impact your welding productivity. In this guide, we’ll explore the various reasons why your welder might not be feeding wire and provide solutions to get your machine back up and running smoothly.

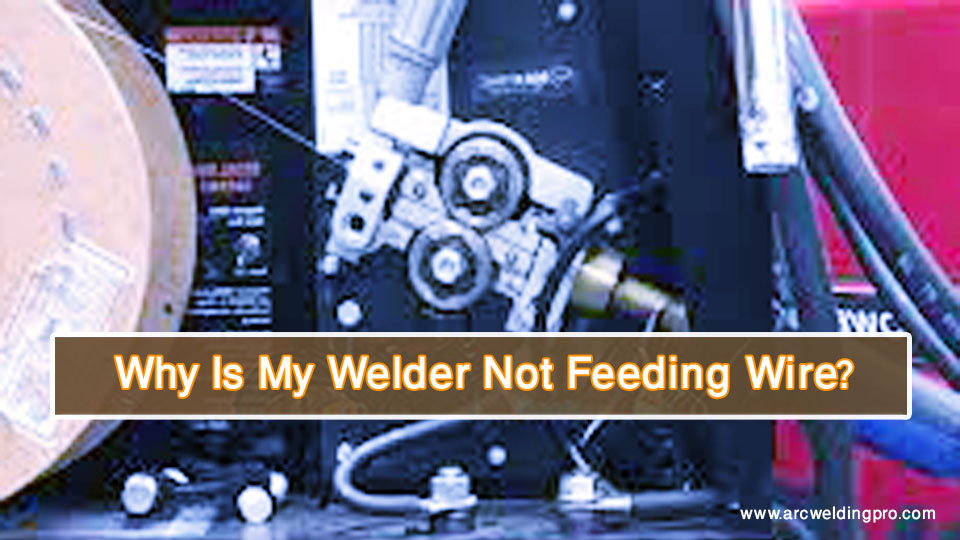

Image by binzel-abicor

Wire Feed Mechanism

Before diving into the troubleshooting process, it’s essential to understand how the wire feed mechanism works in a MIG welder.

Components of the Wire Feed System

1. Wire spool: Holds the welding wire
2. Drive rolls: Push the wire through the system
3. Inlet guide: Directs the wire into the drive rolls
4. Outlet guide: Guides the wire from the drive rolls to the liner
5. Liner: Guides the wire through the welding gun cable
6. Contact tip: Transfers electrical current to the wire
7. Wire feed motor: Powers the drive rolls

Wire Feeding Process

When functioning correctly, the wire feed motor turns the drive rolls, which push the wire from the spool through the inlet guide, drive rolls, outlet guide, liner, and finally through the contact tip. Understanding this process will help you identify where issues might occur.

Common Reasons for Wire Feed Issues

Now, let’s explore the various reasons why your welder might not be feeding wire properly.

Drive Roll Problems

Incorrect Drive Roll Size or Type

Using drive rolls that don’t match your wire size or type can cause feeding issues. Ensure you’re using the correct drive rolls for your specific wire.

Worn Drive Rolls

Over time, drive rolls can wear down, losing their grip on the wire. Inspect your drive rolls for signs of wear and replace them if necessary.

Improper Drive Roll Tension

Too much or too little tension on the drive rolls can cause wire feeding problems. Adjust the tension to find the right balance.

Wire Spool Issues

Tangled Wire

If the wire on the spool becomes tangled, it can prevent smooth feeding. Carefully untangle the wire or consider replacing the spool if severely tangled.

Incorrect Spool Tension

The spool should have some resistance but spin freely. Adjust the spool tension if it’s too tight or too loose.

Liner Problems

Clogged or Dirty Liner

Over time, debris can accumulate in the liner, obstructing wire movement. Clean or replace the liner if necessary.

Kinked or Damaged Liner

A kinked or damaged liner can create friction and prevent smooth wire feeding. Inspect the liner for damage and replace if needed.

Incorrect Liner Size

Using a liner that’s too small or large for your wire can cause feeding issues. Ensure you’re using the correct size liner for your wire diameter.

Contact Tip Issues

Worn Contact Tip

A worn contact tip can cause inconsistent electrical contact and poor wire feeding. Replace worn contact tips regularly.

Incorrect Contact Tip Size

Using a contact tip that doesn’t match your wire diameter can lead to feeding problems. Always use the appropriate size contact tip.

Clogged Contact Tip

Spatter buildup in the contact tip can obstruct wire movement. Clean or replace clogged contact tips.

Welding Gun Problems

Kinked or Damaged Gun Cable

A kinked or damaged gun cable can create resistance and prevent smooth wire feeding. Straighten out kinks or replace damaged cables.

Loose Connections

Loose connections in the gun can cause intermittent wire feeding. Check and tighten all connections in the welding gun.

Wire Feed Motor Issues

Faulty Motor

If the wire feed motor is malfunctioning, it won’t be able to drive the wire properly. Test the motor and replace if necessary.

Control Board Problems

Issues with the control board can affect wire feed speed and consistency. Consult a professional for control board diagnostics and repair.

Power Supply Problems

Insufficient Power

If your welder isn’t receiving enough power, it may not be able to drive the wire feed motor effectively. Check your power source and connections.

Blown Fuse or Tripped Circuit Breaker

. Check and replace fuses or reset circuit breakers as needed.

Troubleshooting Steps

Now that we’ve identified potential causes, let’s go through a step-by-step troubleshooting process to diagnose and fix wire feeding issues.

Step 1: Visual Inspection

1. Check the wire spool for tangles or damage
2. Inspect the drive rolls for wear or incorrect size
3. Examine the liner for visible kinks or damage
4. Look for spatter buildup in the contact tip
5. Check the gun cable for kinks or damage

Step 2: Check Drive Roll Tension

1. Release the tension on the drive rolls
2. Feed wire manually through the system
3. Gradually increase tension until wire feeds smoothly without slipping
4. Test wire feed with the gun cable in a U-shape to ensure proper tension

Step 3: Inspect and Clean the Liner

1. Remove the liner from the gun cable
2. Blow compressed air through the liner to remove debris
3. Inspect the liner for damage
4. Replace the liner if damaged or excessively dirty

Step 4: Check and Replace Contact Tip

1. Remove the contact tip
2. Inspect for wear or spatter buildup
3. Clean or replace the contact tip as necessary
4. Ensure the new contact tip matches your wire diameter

Step 5: Test Wire Feed Motor

1. Disconnect the gun cable from the wire feeder
2. Activate the wire feed to test motor operation
3. If the motor doesn’t run, check electrical connections and fuses
4. Consider professional repair if motor issues persist

Step 6: Check Power Supply

1. Ensure the welder is plugged into a functioning outlet
2. Check for tripped circuit breakers or blown fuses
3. Verify that the welder is receiving the correct voltage

Step 7: Professional Diagnosis

If you’ve gone through these steps and are still experiencing wire feed issues, it may be time to consult a professional welding equipment technician for a more in-depth diagnosis and repair.

Preventive Maintenance

To minimize wire feeding issues in the future, consider implementing these preventive maintenance practices:

Regular Cleaning

1. Clean drive rolls and wire feed area after each use
2. Remove spatter from contact tips and nozzles
3. Blow out the liner with compressed air periodically

Timely Replacements

1. Replace drive rolls when signs of wear appear
2. Change contact tips regularly, especially when welding at high amperages
3. Replace liners according to manufacturer recommendations or when damage is noticed

Proper Storage

1. Store welding wire in a clean, dry area to prevent rust and contamination
2. Keep the wire feeder covered when not in use to prevent dust accumulation

Regular Inspections

1. Check all connections and tighten as needed
2. Inspect gun cables for signs of wear or damage
3. Examine the power cord for any cuts or frays

Advanced Troubleshooting Techniques

For those comfortable with more in-depth diagnostics, consider these advanced troubleshooting techniques:

Measuring Wire Feed Speed

1. Use a wire feed speed meter to ensure the actual speed matches the set speed
2. Adjust or repair the wire feed motor if discrepancies are found

Checking Electrical Continuity

1. Use a multimeter to check for continuity through the gun cable and connections
2. Identify and repair any breaks in the electrical path

Analyzing Wire Feed Motor Current Draw

1. Measure the current draw of the wire feed motor under load
2. Compare to manufacturer specifications to identify potential motor issues

When to Seek Professional Help

While many wire feed issues can be resolved with DIY troubleshooting, some situations warrant professional assistance:

1. Persistent electrical problems
2. Mechanical failures within the wire feeder
3. Issues with the control board or other electronic components
4. Repeated wire feed problems despite thorough troubleshooting

Don’t hesitate to consult a certified welding equipment technician if you’re unsure about any repair or if the problem persists after attempting the solutions outlined in this guide.

Conclusion

Wire feed issues can be frustrating, but with a systematic approach to troubleshooting, most problems can be resolved quickly. By understanding the components of your wire feed system and following the steps outlined in this guide, you can diagnose and fix many common issues that cause wire feeding problems.

Regular maintenance and proper care of your welding equipment can prevent many of these issues from occurring in the first place. Keep your welder clean, replace wear parts as needed, and store your equipment properly to ensure consistent, trouble-free operation.

If you encounter persistent problems or are unsure about any aspect of repairing your welder, don’t hesitate to seek professional assistance. With proper care and attention, your wire feed welder will provide reliable service for years to come, allowing you to focus on producing high-quality welds for all your projects.
